Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the idle air control (IAC) valve electrical connector.

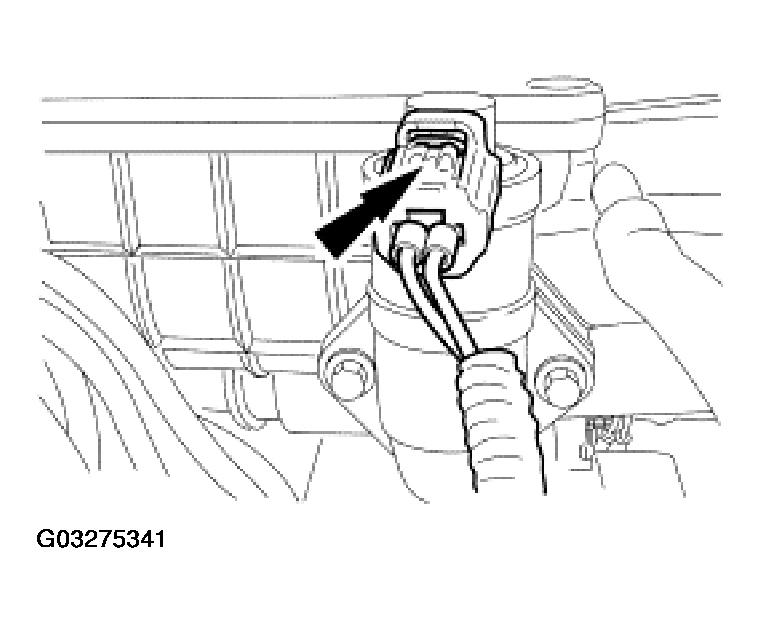

    Fig 1: Disconnecting IAC Valve Connector
    G03275341Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the IAC valve and the gasket. Discard the gasket.

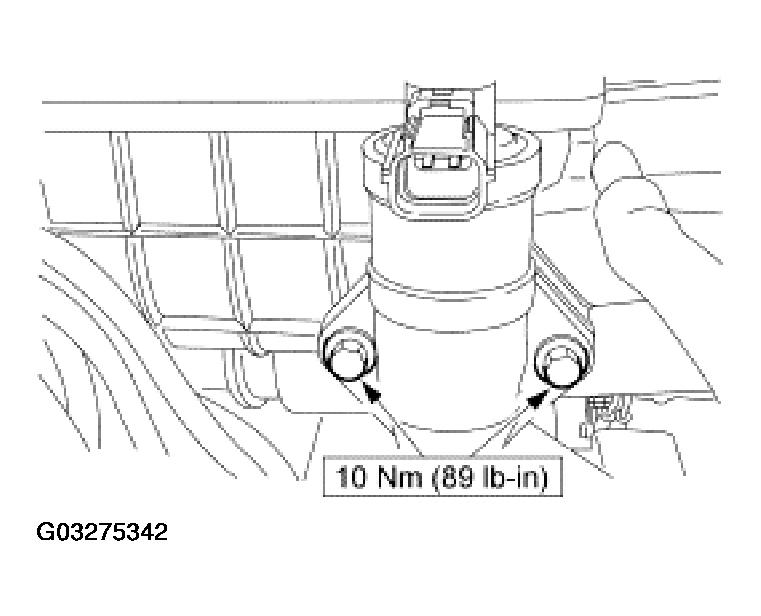

    Fig 2: Removing IAC Valve And Gasket
    G03275342Courtesy of FORD MOTOR CO.
    4. NOTE: Install a new IAC gasket.
  4. To install, reverse the removal procedure.
    • Use a new gasket.
