Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Partially drain the cooling system. For additional information, refer to ENGINE COOLING .
  3. Disconnect the electrical connector.

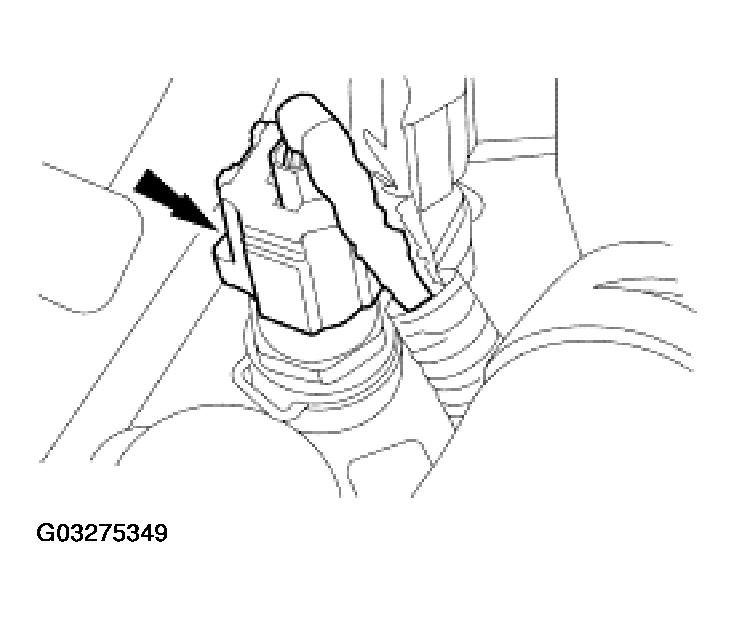

    Fig 1: Disconnecting Electrical Connector
    G03275349Courtesy of FORD MOTOR CO.
  4. Remove the clip and the engine coolant temperature (ECT) sensor.

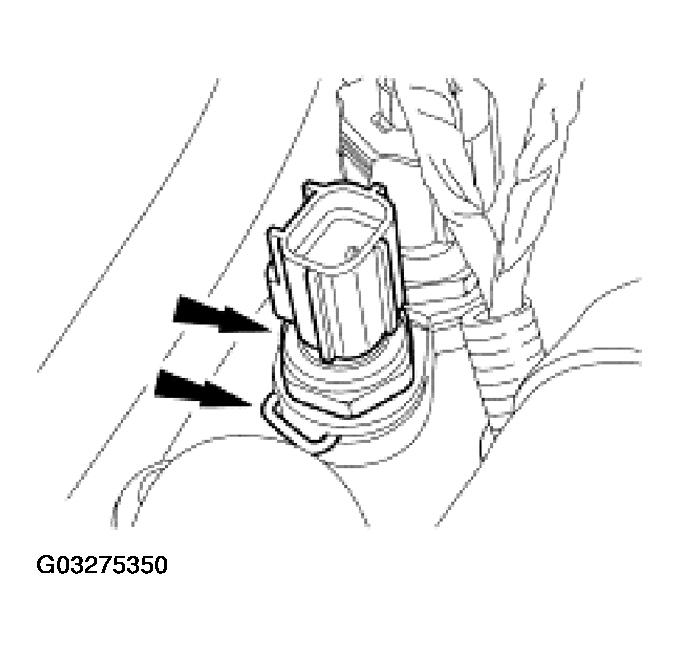

    Fig 2: Removing Clip And ECT Sensor
    G03275350Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
