Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Pull back the cylinder head temperature (CHT) sensor cover and disconnect the electrical connector.

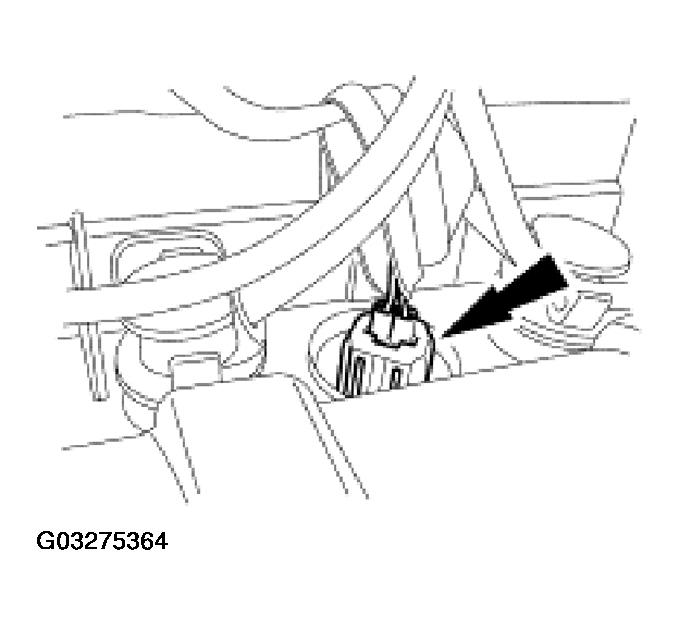

    Fig 1: Disconnecting CHT Sensor Connector
    G03275364Courtesy of FORD MOTOR CO.
  3. Remove the CHT sensor.

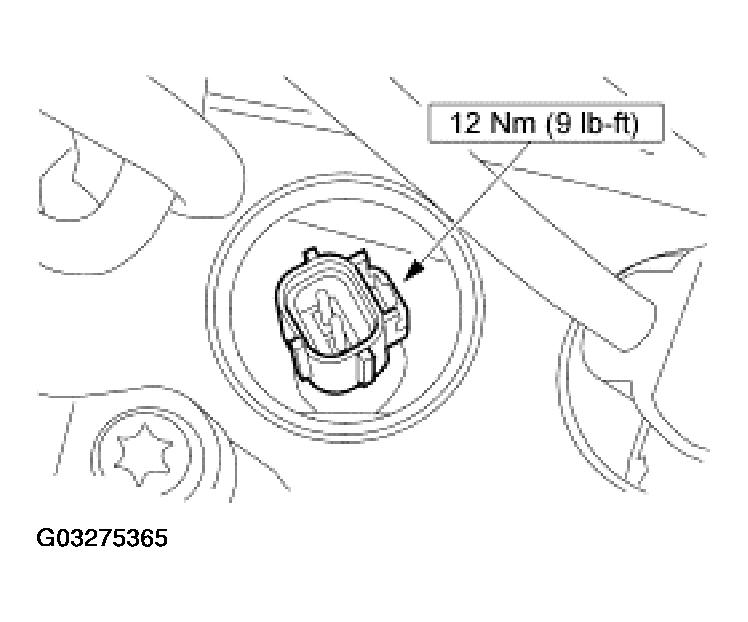

    Fig 2: Removing CHT Sensor
    G03275365Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
