Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the crankshaft position (CKP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolts.
3. Remove the sensor.

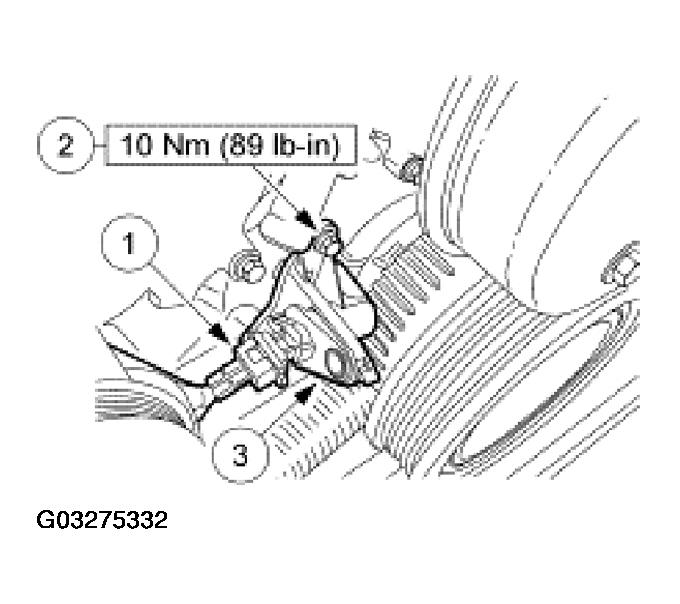

  Fig 1: Removing CKP Sensor
  Courtesy of FORD MOTOR CO.

NOTE: The new CKP sensor must be touching the damper. The new sensor has wear tabs that will wear off after several engine revolutions.

To install, reverse the removal procedure.
