Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  3. Disconnect the crankshaft position (CKP) sensor electrical connector.

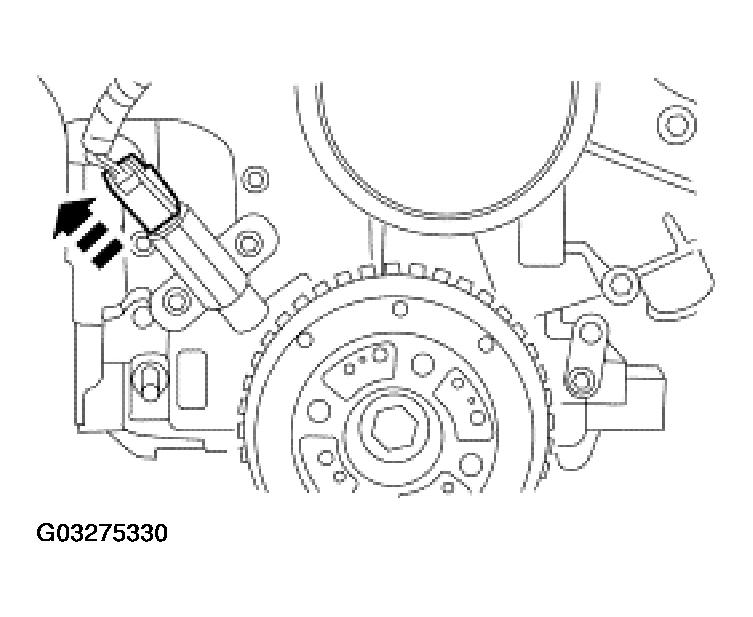

    Fig 1: Disconnecting CKP Sensor Electrical Connector
    G03275330Courtesy of FORD MOTOR CO.
  4. Remove the bolts and the CKP sensor.

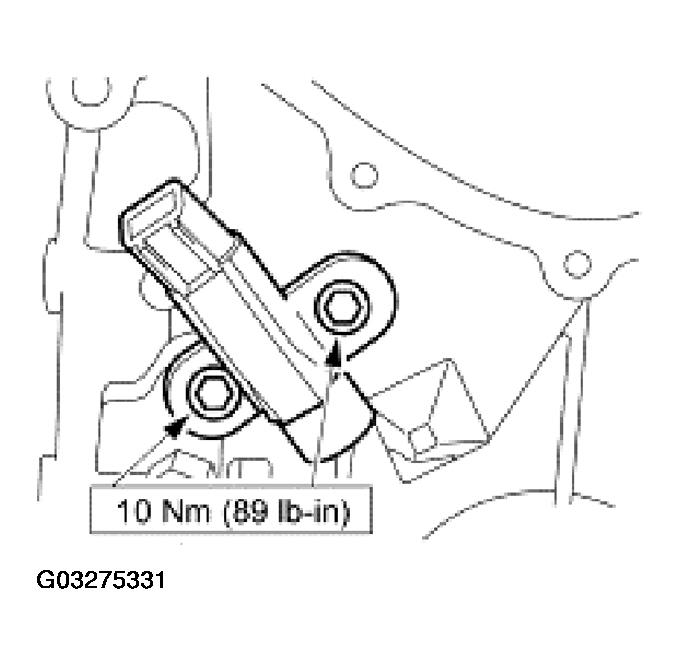

    Fig 2: Removing Bolts And CKP Sensor
    G03275331Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
