Crankshaft Position (CKP) Sensor - 2.3L: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  3. Disconnect the crankshaft position (CKP) sensor electrical connector.

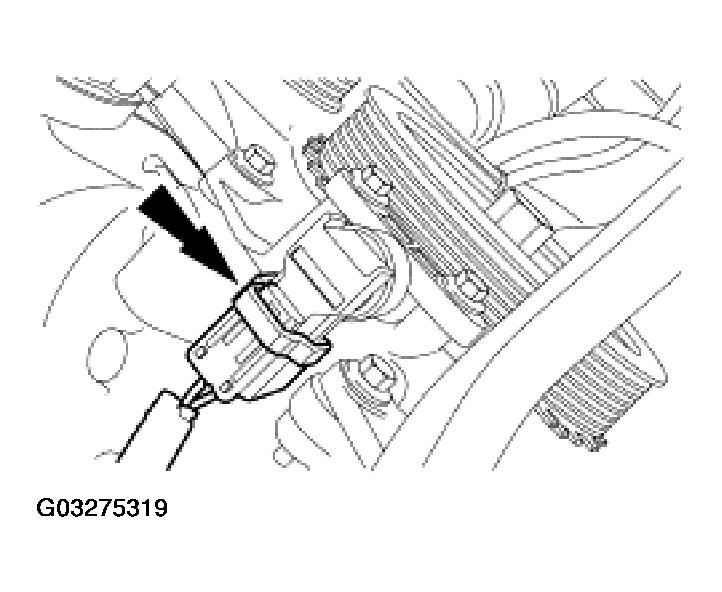

    Fig 1: Disconnecting CKP Sensor Electrical Connector
    G03275319Courtesy of FORD MOTOR CO.
  4. Remove the plug.

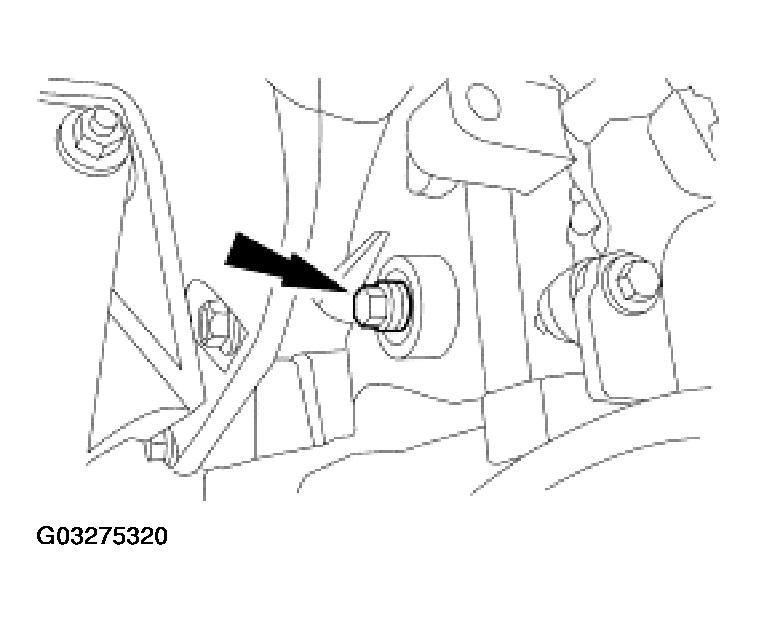

    Fig 2: Removing Plug
    G03275320Courtesy of FORD MOTOR CO.
  5. Install the special tool and turn the crankshaft pulley bolt to position the number one cylinder at top dead center.

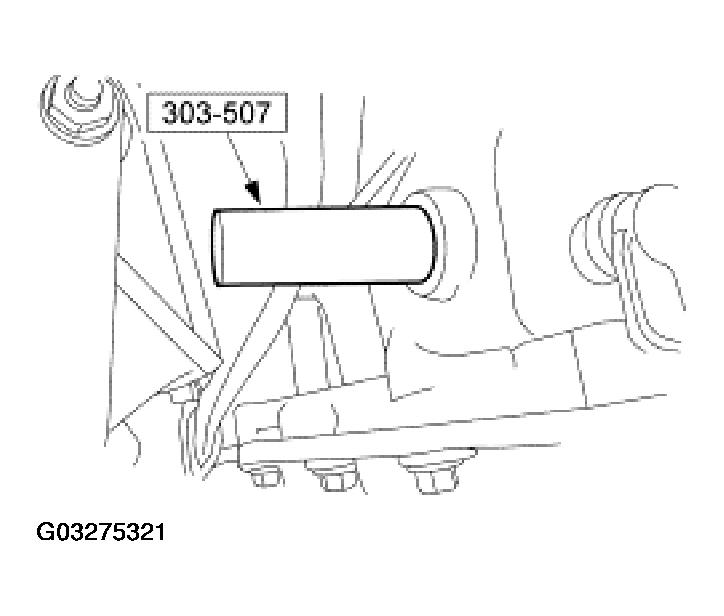

    Fig 3: Installing Crankshaft Timing Peg
    G03275321Courtesy of FORD MOTOR CO.
  6. Remove the CKP.

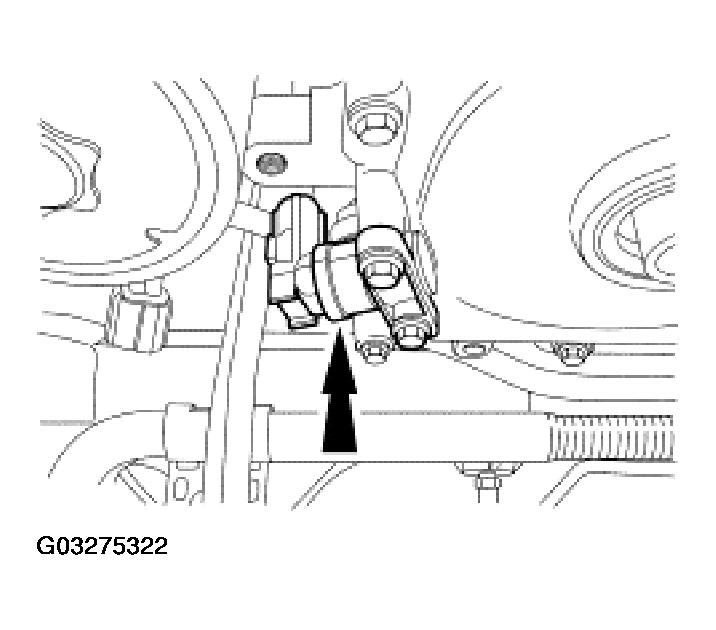

    Fig 4: Removing CKP
    G03275322Courtesy of FORD MOTOR CO.
  7. Install an M6 bolt.

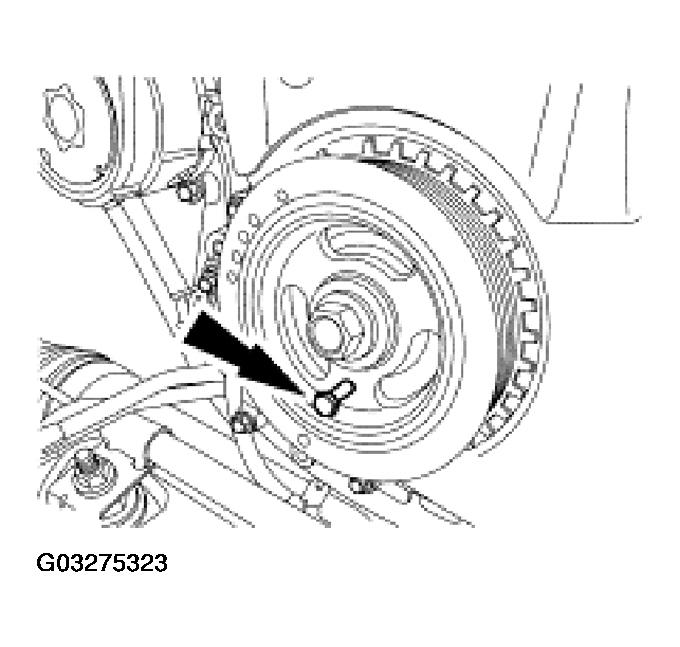

    Fig 5: Installing M6 Bolt
    G03275323Courtesy of FORD MOTOR CO.
