Crankshaft Position (CKP) Sensor - 2.3L: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the CKP, but do not tighten the bolts at this time.

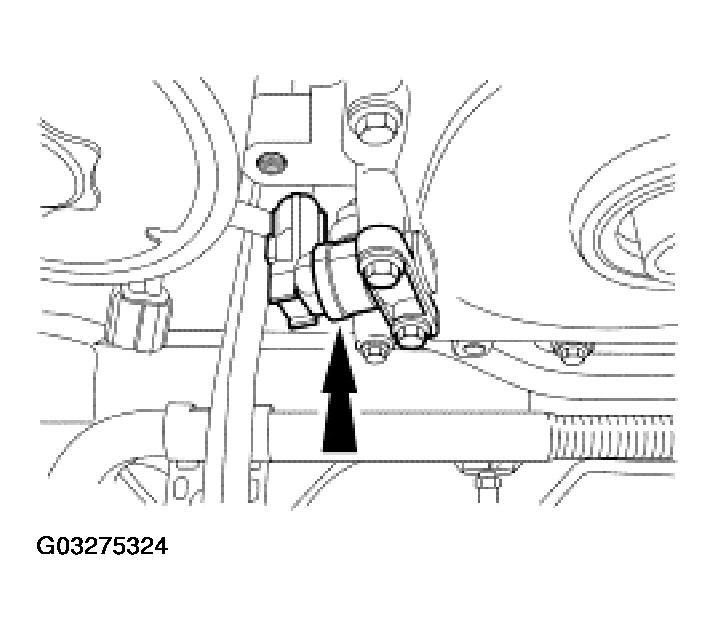

Fig 1: Installing CKP
Courtesy of FORD MOTOR CO.

NOTE: The crankshaft position (CKP) sensor alignment tool is supplied with the new sensor and is not available separately.

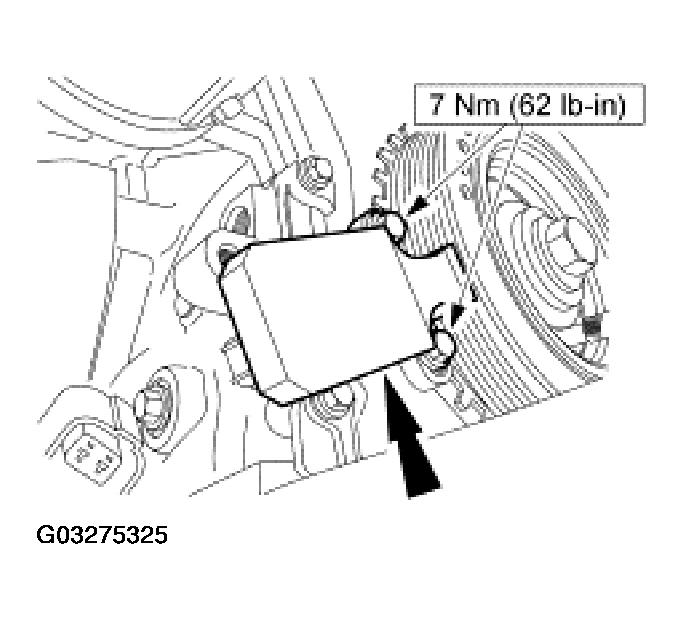

Fig 2: Adjusting CKP With Crankshaft Position Sensor Alignment Jig

Courtesy of FORD MOTOR CO.

Adjust the CKP with the crankshaft position sensor alignment jig and tighten the bolts.
Connect the CKP electrical connector.

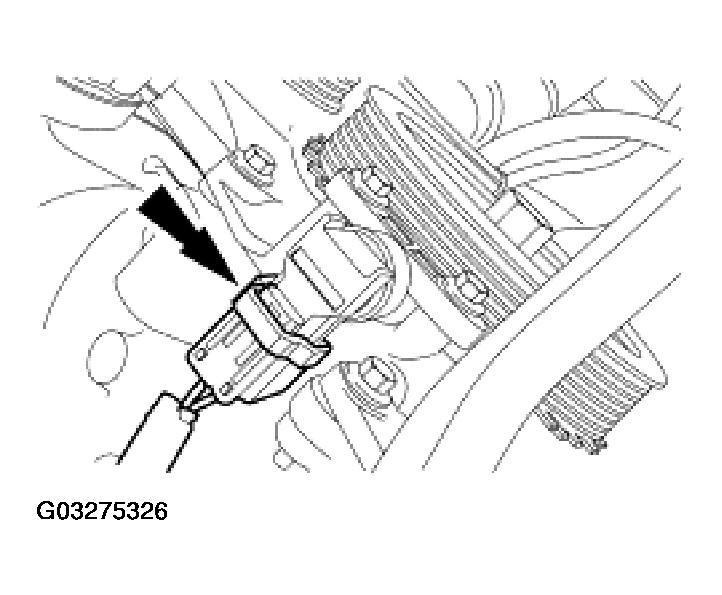

Fig 3: Connecting CKP Connector
Courtesy of FORD MOTOR CO.
Remove the M6 bolt.

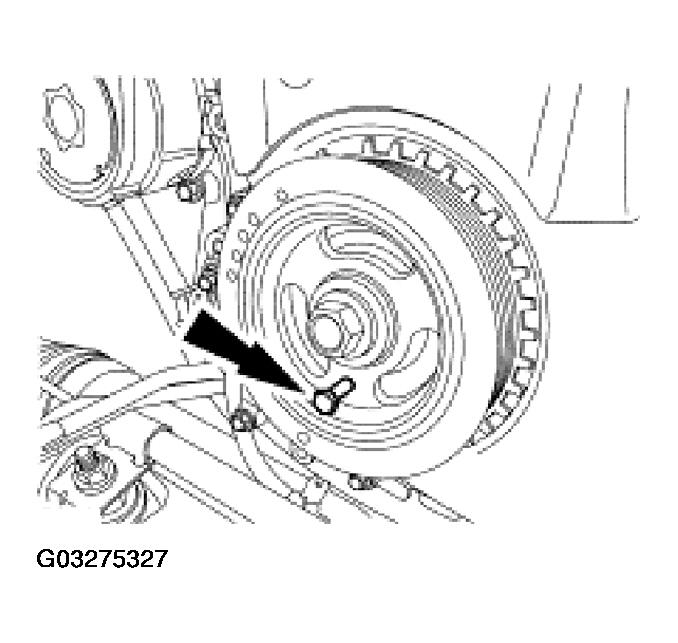

Fig 4: Removing M6 Bolt
Courtesy of FORD MOTOR CO.
Remove the crankshaft timing peg.

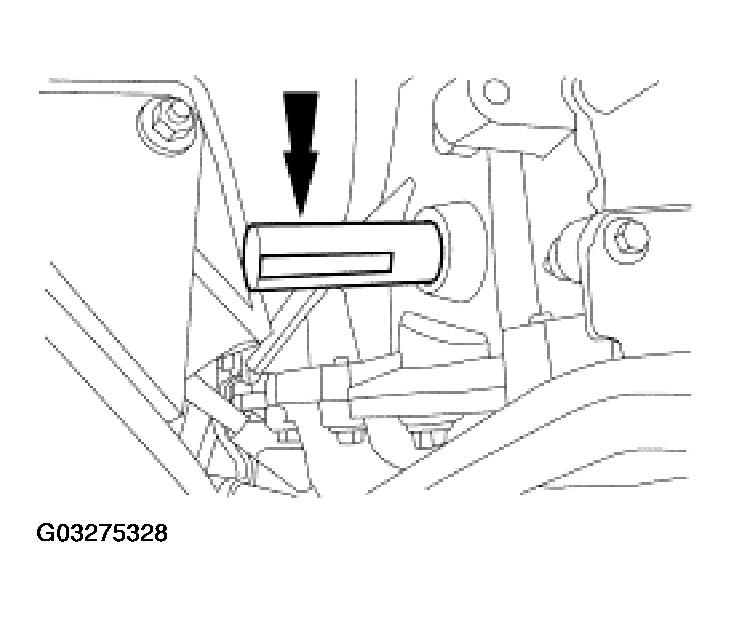

Fig 5: Removing Crankshaft Timing Peg
Courtesy of FORD MOTOR CO.
Install the plug.

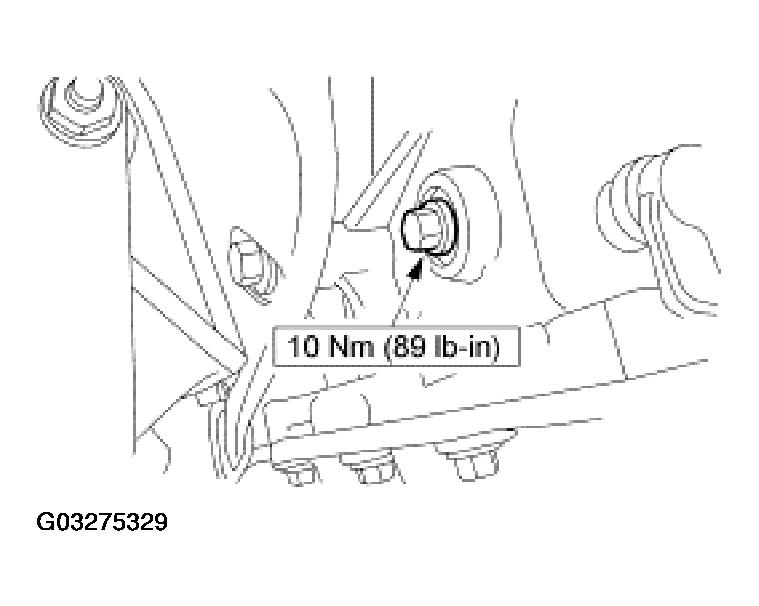

Fig 6: Installing Plug
Courtesy of FORD MOTOR CO.
