Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the electrical connector from the clutch pedal position (CPP) switch.

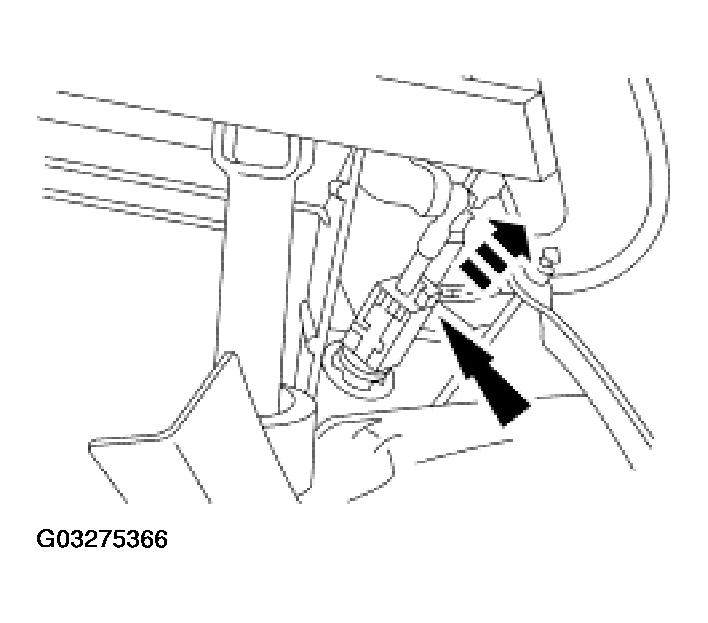

    Fig 1: Disconnecting CPP Switch
    G03275366Courtesy of FORD MOTOR CO.
  3. Spread the CPP switch apart. Remove from the pedal rod.

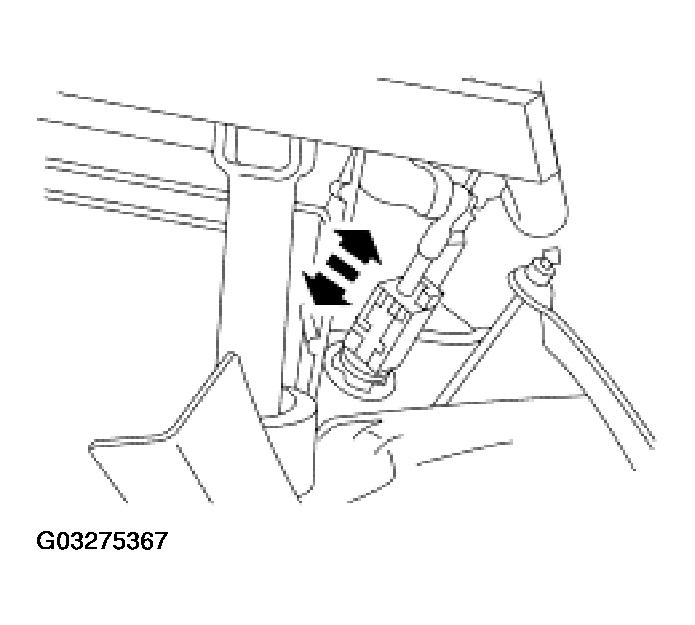

    Fig 2: Removing CPP Switch From Pedal Rod
    G03275367Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
