Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft position (CMP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the sensor.

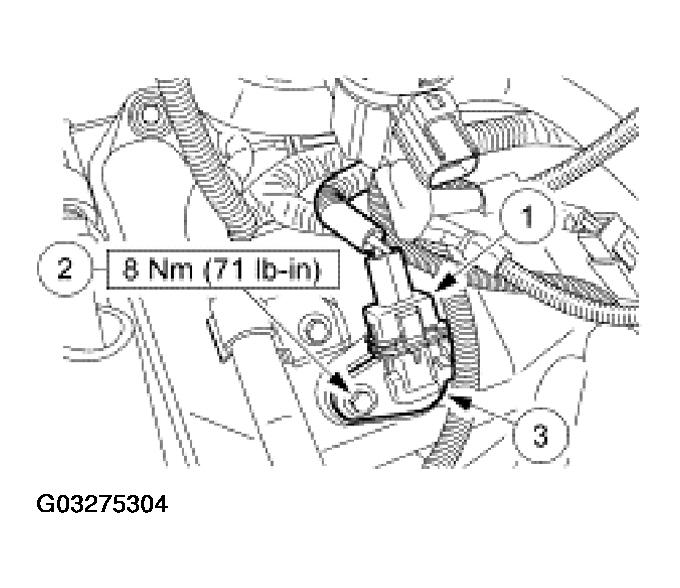

      Fig 1: Removing CMP Sensor
      G03275304Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
