Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the camshaft position (CMP) sensor electrical connector.

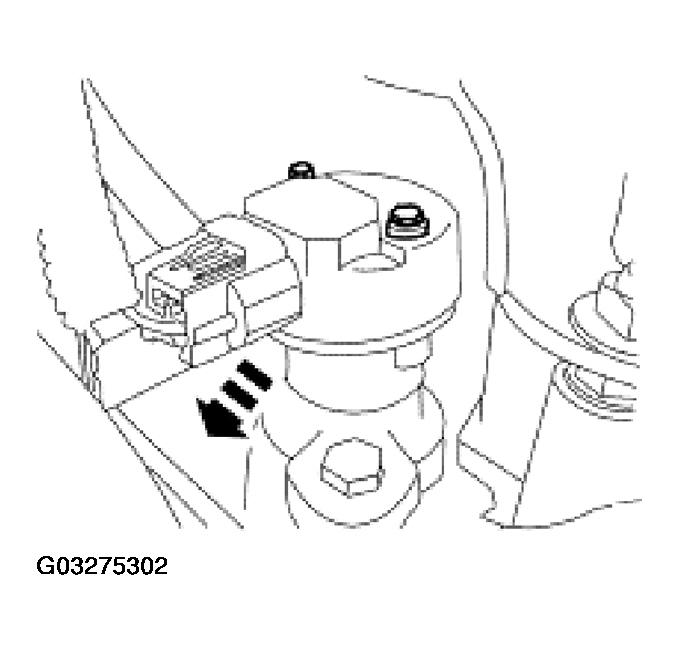

    Fig 1: Disconnecting CMP Sensor Electrical Connector
    G03275302Courtesy of FORD MOTOR CO.
  3. Remove the screws and the CMP sensor.

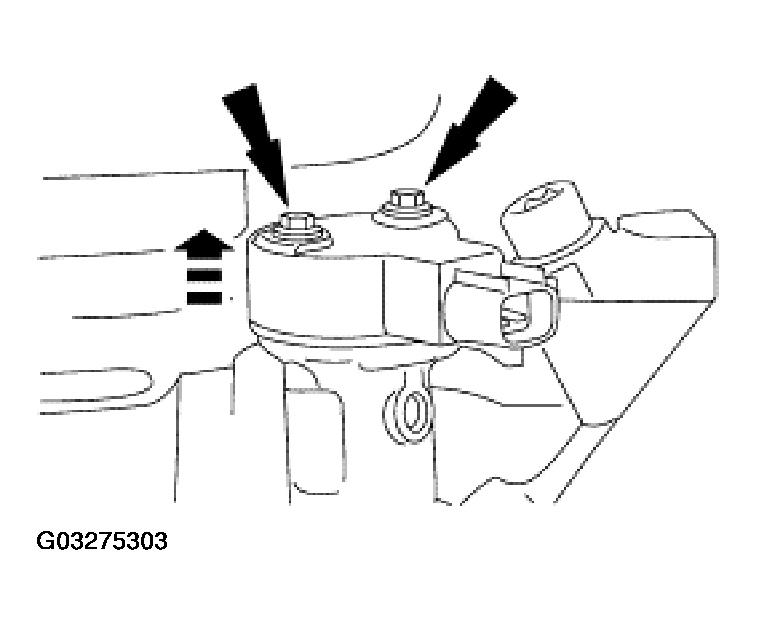

    Fig 2: Removing CMP Sensor
    G03275303Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
