Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the vacuum hose from the intake manifold.

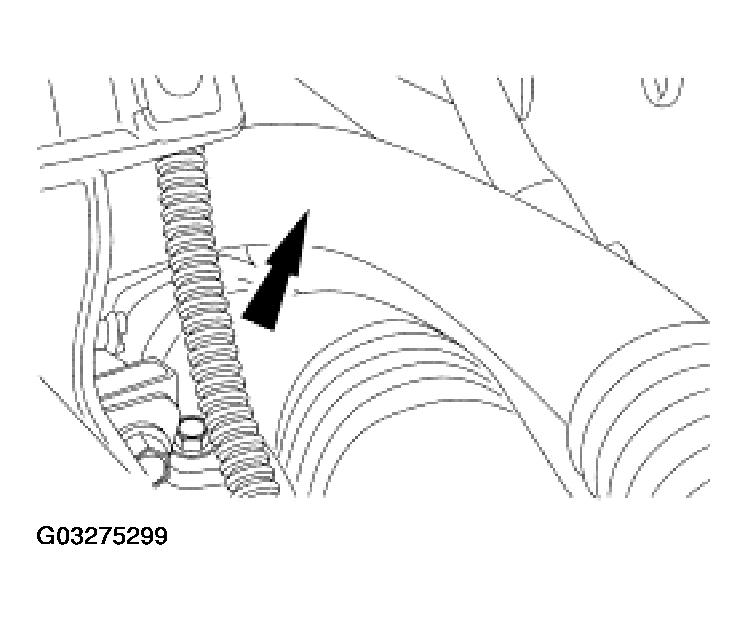

Fig 1: Disconnecting Vacuum Hose From Intake Manifold
Courtesy of FORD MOTOR CO.
Disconnect the camshaft position (CMP) sensor electrical connector.

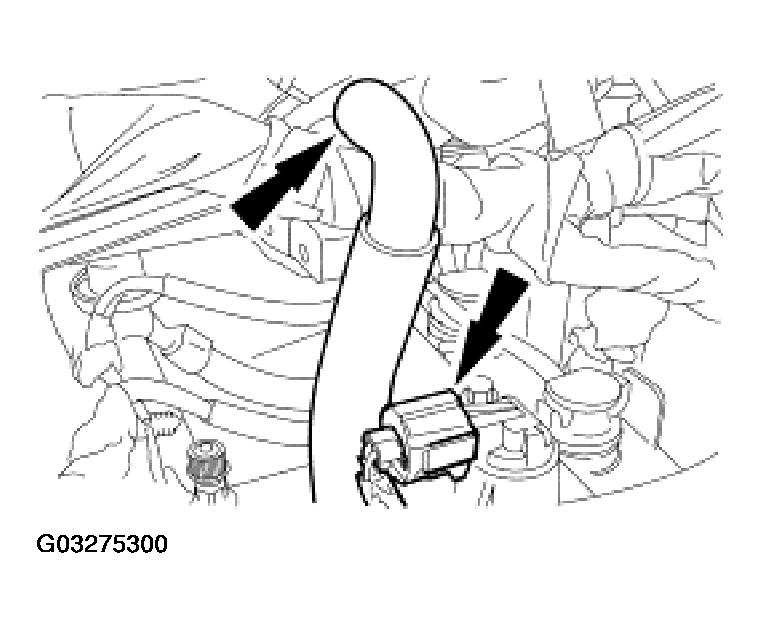

Fig 2: Disconnecting CMP Sensor Electrical Connector

Courtesy of FORD MOTOR CO.

Remove the bolt and the CMP sensor.

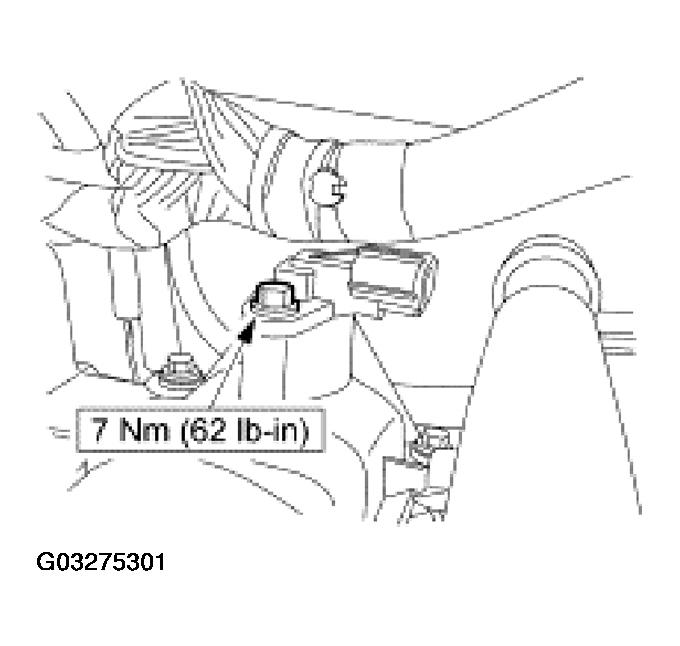

Fig 3: Removing CMP Sensor
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the O-ring with clean engine oil.

To install, reverse the removal procedure.
