Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the positive crankcase ventilation (PCV) hose.

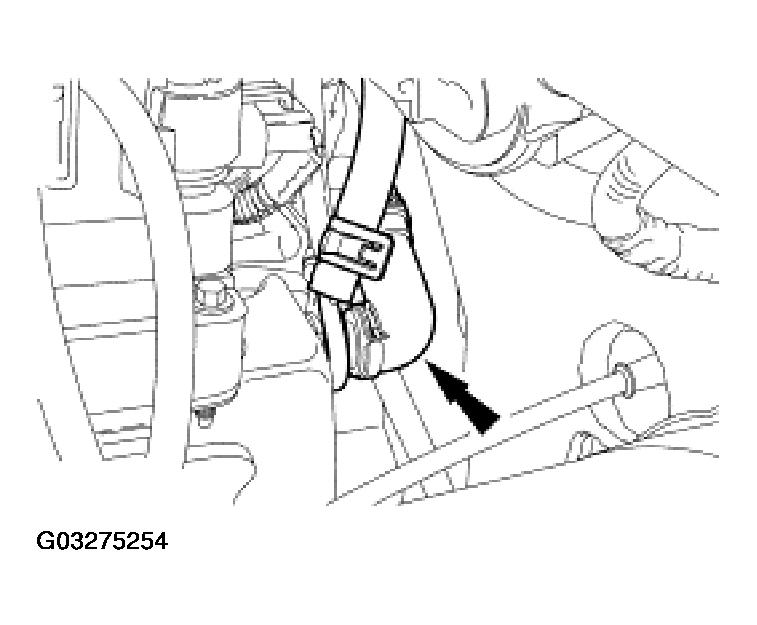

    Fig 1: Removing PCV Hose
    G03275254Courtesy of FORD MOTOR CO.
  2. Remove the PCV valve from the valve cover.

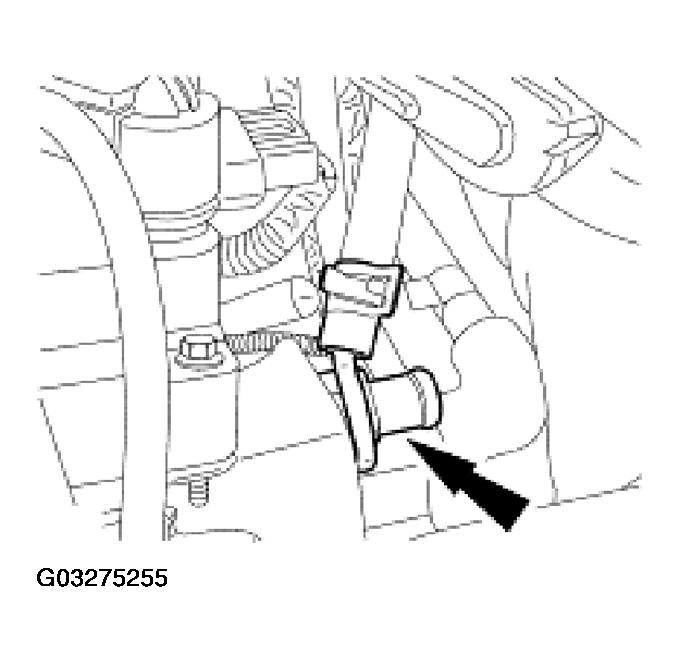

    Fig 2: Removing PCV Valve From Valve Cover
    G03275255Courtesy of FORD MOTOR CO.
  3. Disconnect the coolant hoses from the PCV valve.

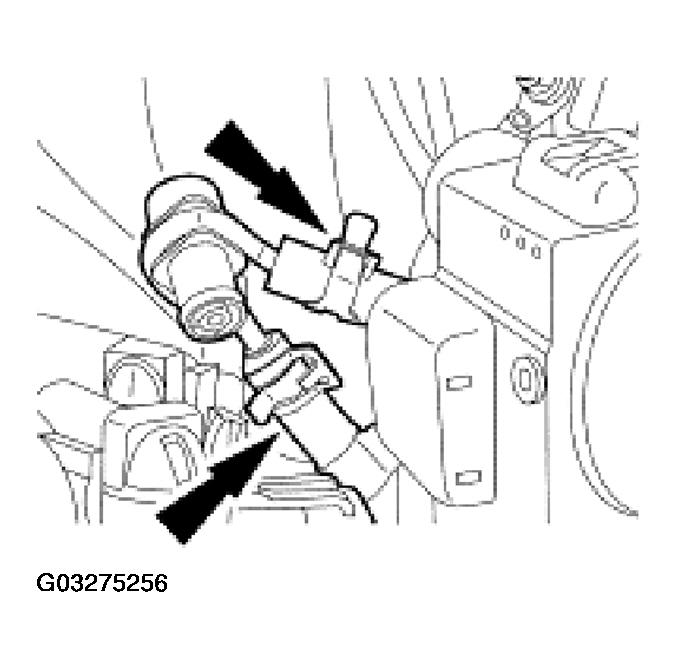

    Fig 3: Disconnecting Coolant Hoses From PCV Valve
    G03275256Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
