Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the positive crankcase ventilation (PCV) valve.
- Disconnect the PCV valve electrical connector.
- Disconnect the PCV valve tube from the PCV valve.

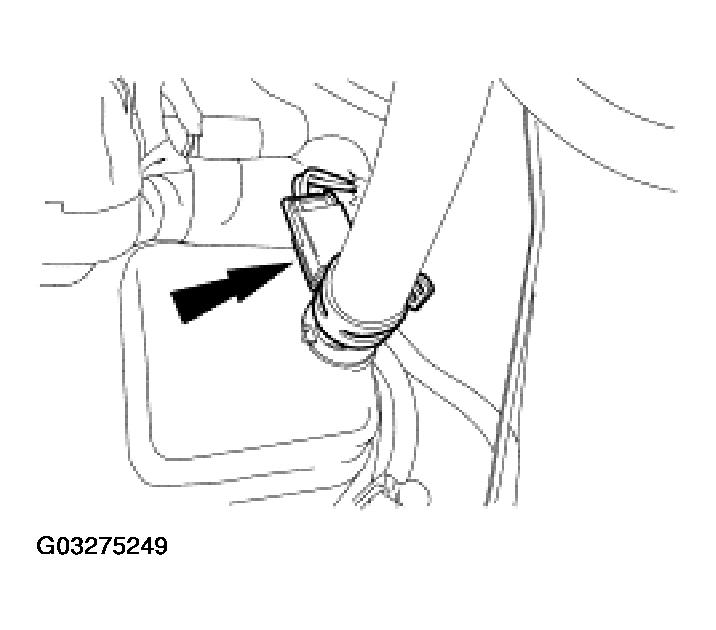

  Fig 1: Disconnecting PCV Valve Electrical Connector
  Courtesy of FORD MOTOR CO.

NOTE: A new PCV valve must be installed if removed from the cam cover.

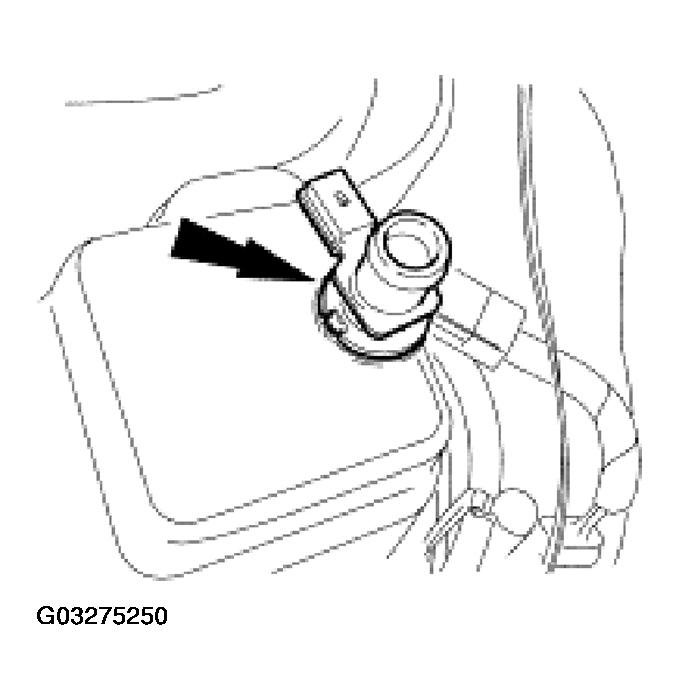

Fig 2: Removing PCV Valve

Courtesy of FORD MOTOR CO.

Rotate to release and remove the PCV valve.
To install, reverse the removal procedure.
