Exhaust Gas Recirculation (EGR) Valve Outlet Tube - 4.0L SOHC

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust gas recirculation (EGR) valve tube.
1. Disconnect the EGR valve tube fittings.
2. Disconnect the differential pressure feedback EGR hoses.
3. Remove the tube.

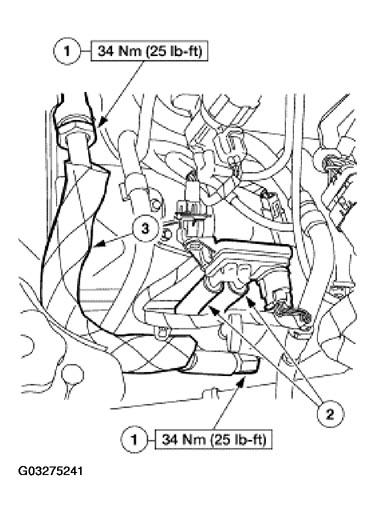

  Fig 1: Disconnecting EGR Valve Tube Fittings & Differential Pressure Feedback EGR Hoses
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
