Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. For additional information, refer to ENGINE 2.3L .
  2. Remove the exhaust gas recirculation (EGR) tube.

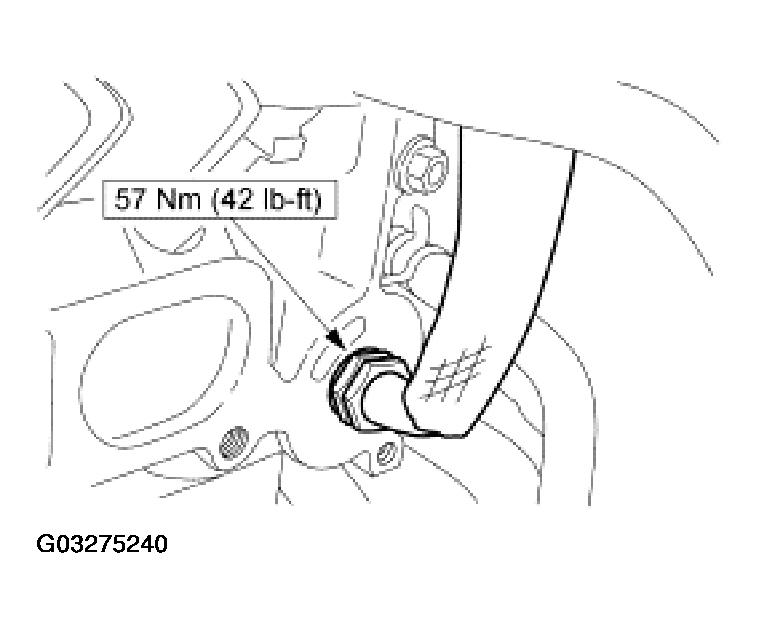

    Fig 1: Removing EGR Tube
    G03275240Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
