Exhaust Gas Recirculation (EGR) Valve - 4.0L SOHC

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the exhaust gas recirculation (EGR) valve.
- Disconnect the vacuum line.
- Disconnect the EGR valve tube fitting.

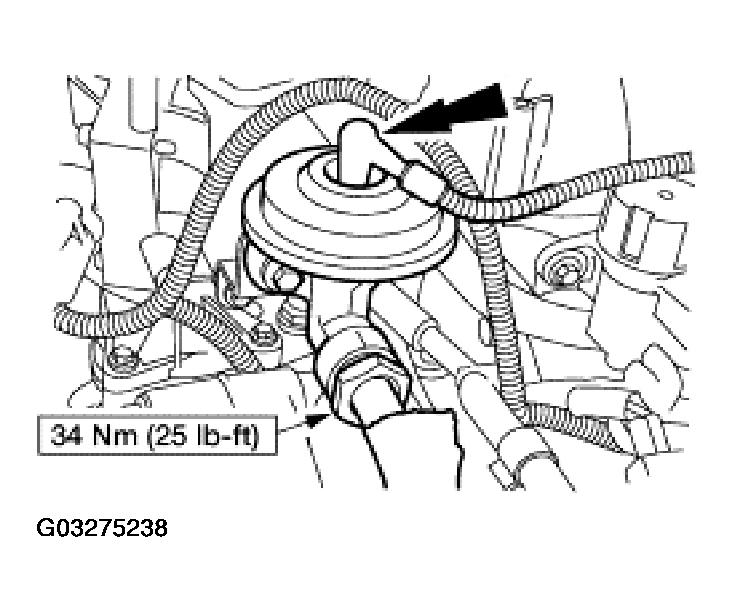

  Fig 1: Disconnecting EGR Vacuum Line & Valve Tube Fitting
  Courtesy of FORD MOTOR CO.
Remove the EGR valve bolts and the EGR valve.
- Discard the gasket.

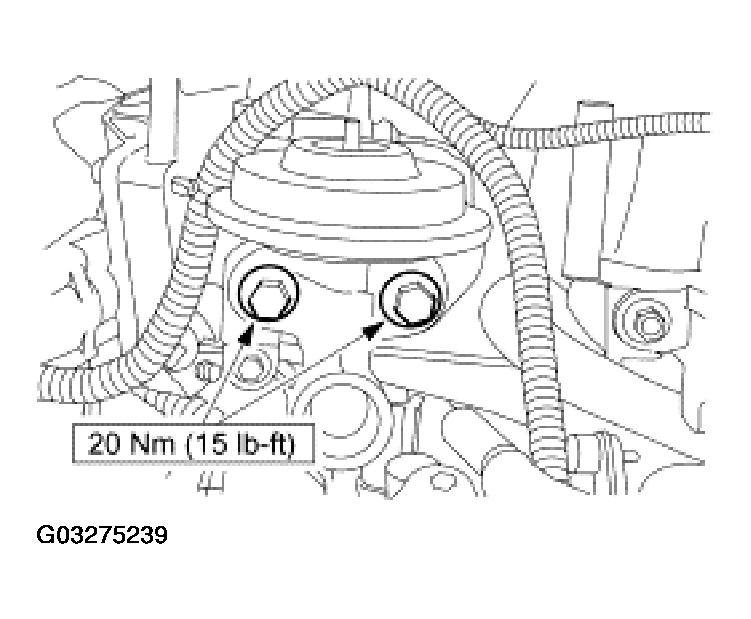

  Fig 2: Removing EGR Valve
  Courtesy of FORD MOTOR CO.

NOTE: The EGR valve sealing surfaces are soft metals.

To install, reverse the removal procedure.
- Carefully clean the EGR valve sealing surfaces.
- Install a new EGR valve gasket.
