Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

  1. Drain the cooling system. For additional information, refer to ENGINE COOLING .
  2. Disconnect the coolant bypass hose.

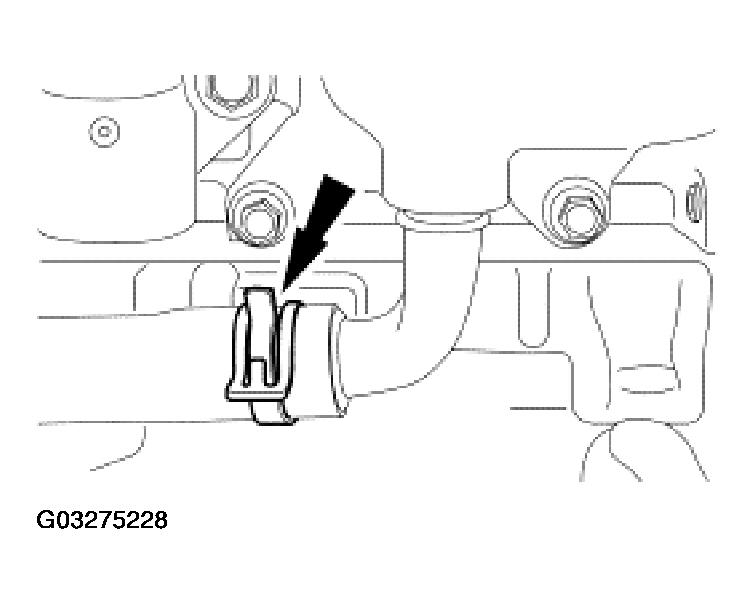

    Fig 1: Disconnecting Coolant Bypass Hose
    G03275228Courtesy of FORD MOTOR CO.
  3. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Disconnect the exhaust gas recirculation (EGR) valve electrical connector.

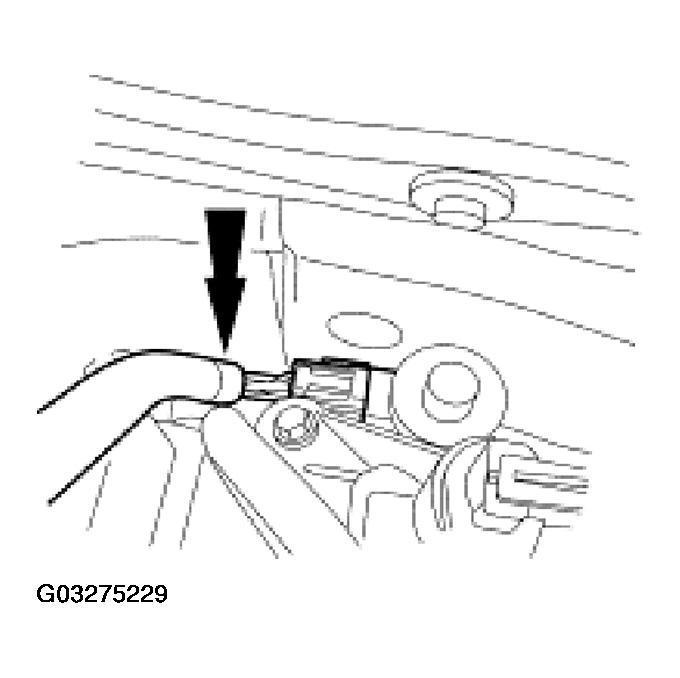

    Fig 2: Disconnecting EGR Valve Electrical Connector
    G03275229Courtesy of FORD MOTOR CO.

    5. VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION

  5. Remove the shifter. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION .

    6. ALL VEHICLES

  6. Remove the rear driveshaft. For additional information, refer to DRIVESHAFT .
  7. Remove the bolts retaining the exhaust inlet crossover pipe to the muffler. Discard the exhaust converter outlet gasket.

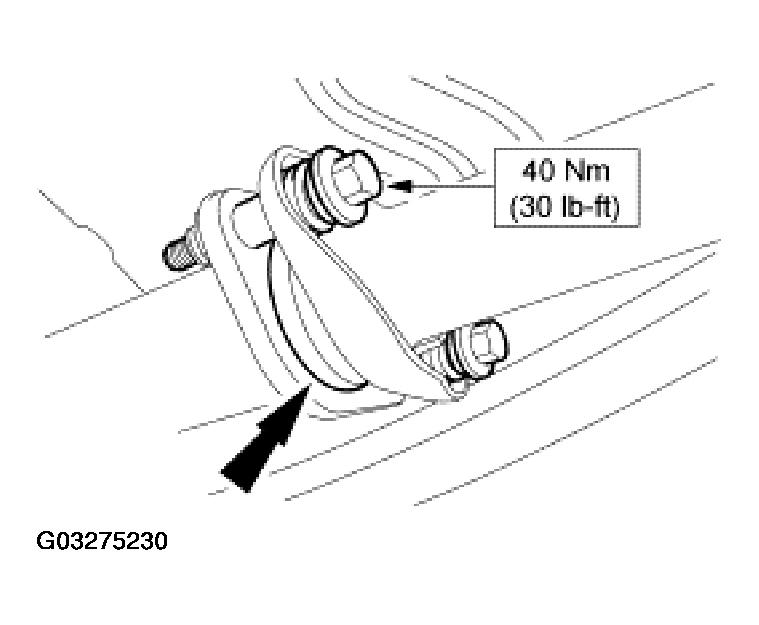

    Fig 3: Removing Exhaust Inlet Crossover Pipe-To-Muffler Bolts
    G03275230Courtesy of FORD MOTOR CO.
  8. Remove the bolts retaining the exhaust inlet crossover pipe to the exhaust manifold and remove the RH exhaust pipe.

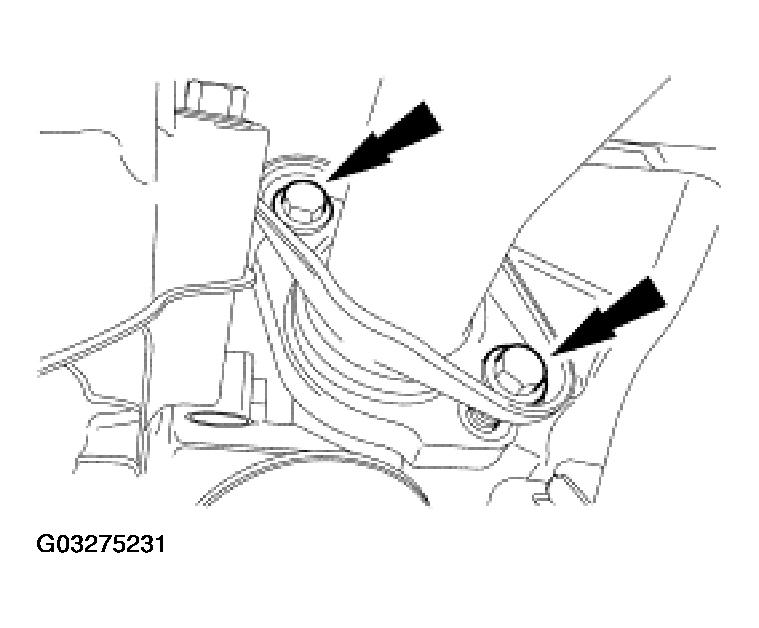

    Fig 4: Removing RH Exhaust Pipe
    G03275231Courtesy of FORD MOTOR CO.
    9. NOTE: Manual transmission shown, automatic transmission similar.

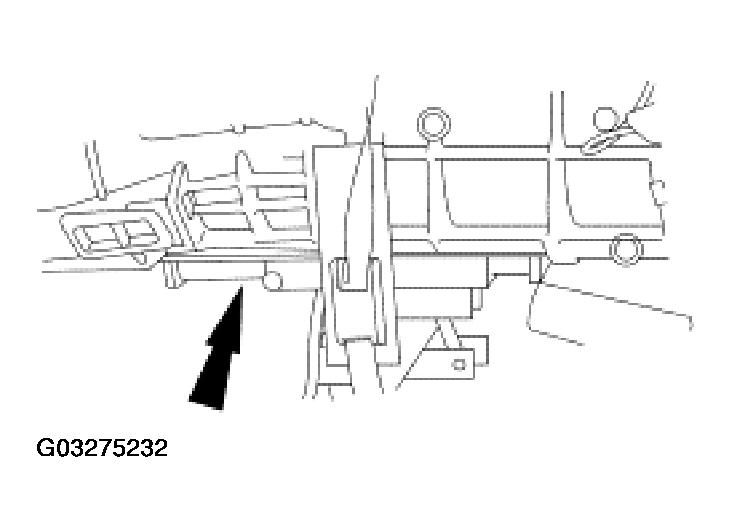

    Fig 5: Supporting Transmission With Suitable Transmission Jack
    G03275232Courtesy of FORD MOTOR CO.
  9. Support the transmission with a suitable transmission jack.
  10. Detach the transmission electrical connector from the crossmember.

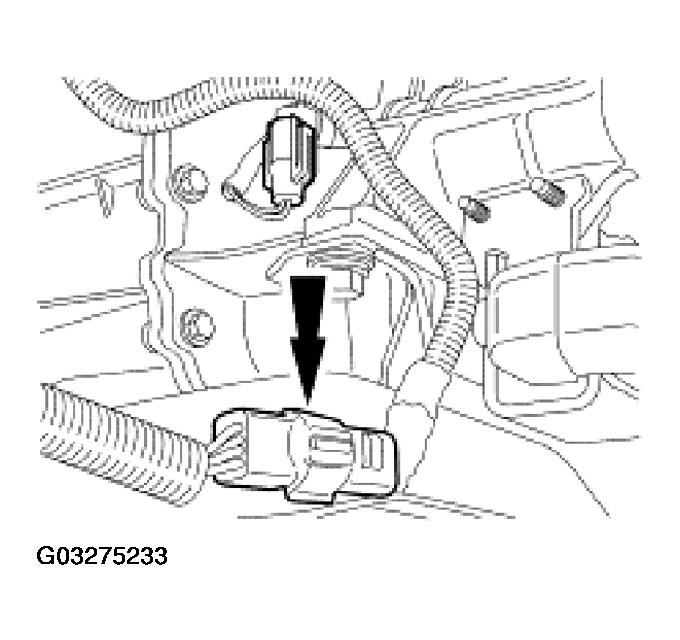

    Fig 6: Disconnecting Transmission Electrical Connector From Crossmember
    G03275233Courtesy of FORD MOTOR CO.
  11. Remove the six bolts (three on each side) retaining the crossmember to the frame.

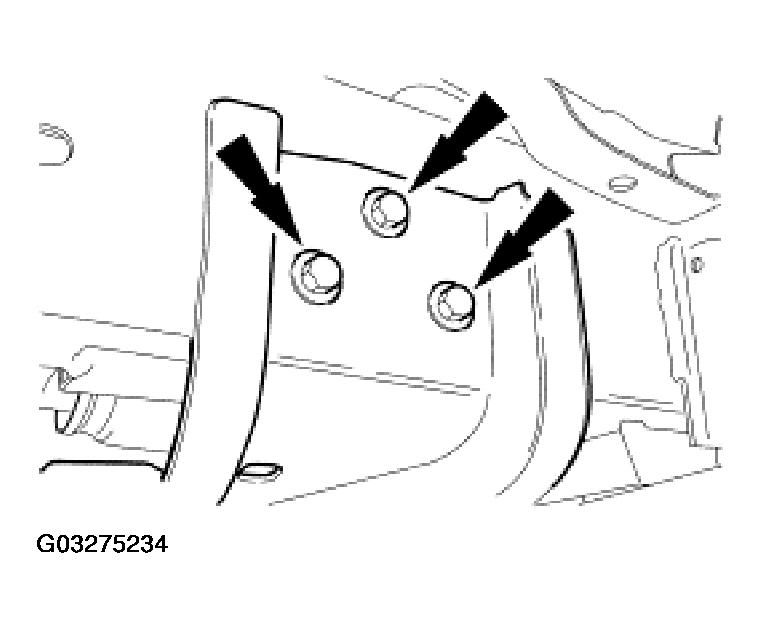

    Fig 7: Removing Bolts Retaining Crossmember To Frame
    G03275234Courtesy of FORD MOTOR CO.
  12. Remove the retaining nuts and the crossmember.

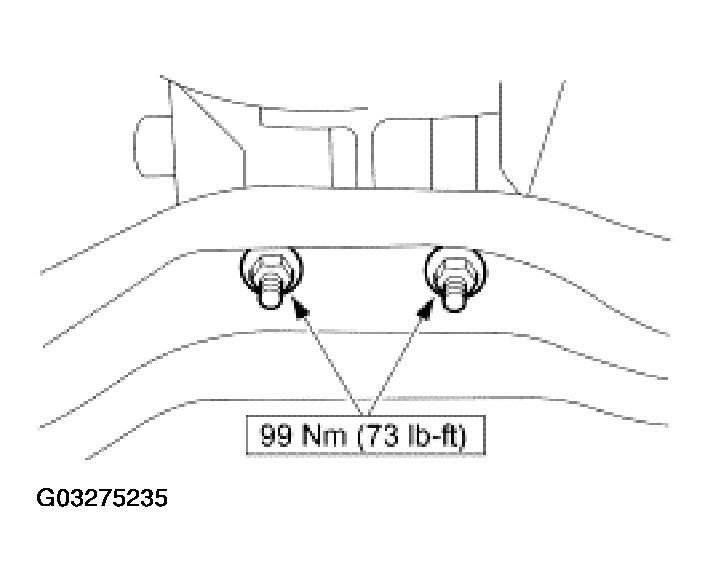

    Fig 8: Removing Crossmember
    G03275235Courtesy of FORD MOTOR CO.
  13. Lower the transmission enough to allow access to the EGR valve.
  14. Disconnect the EGR coolant hose.

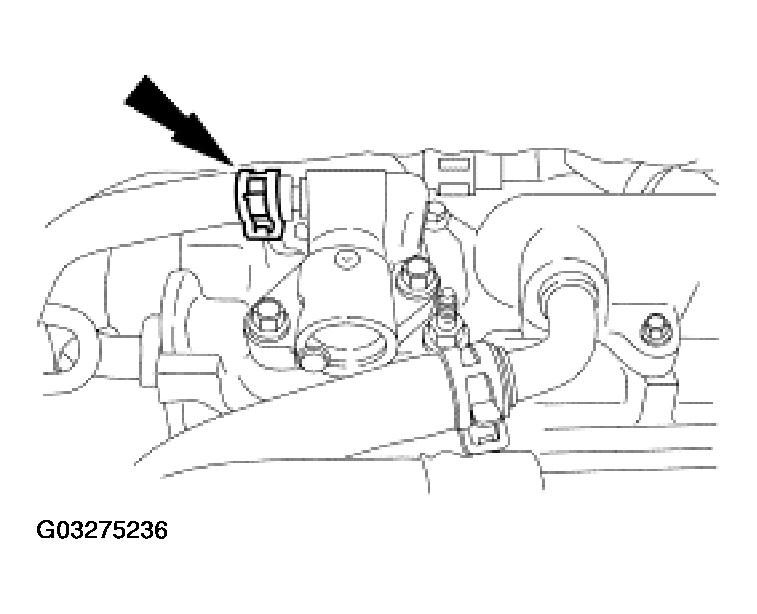

    Fig 9: Disconnecting EGR Coolant Hose
    G03275236Courtesy of FORD MOTOR CO.
  15. Remove the bolts and the EGR valve.
    • Discard the gasket.

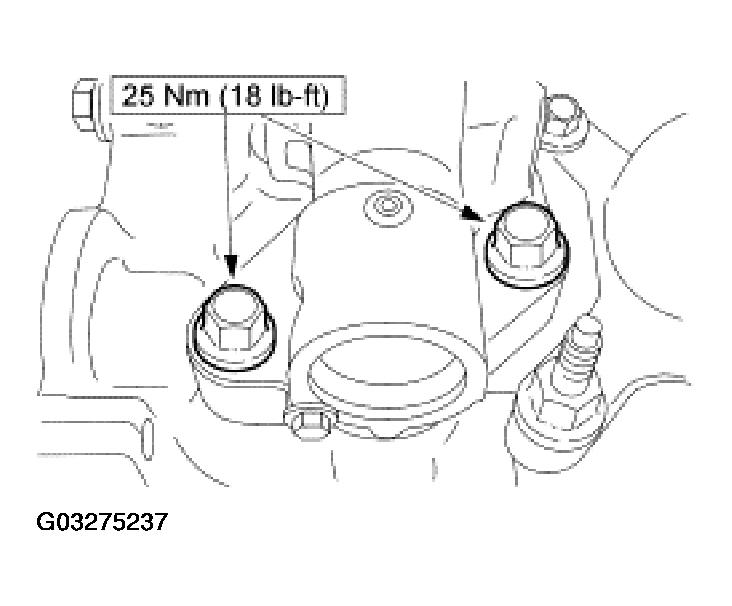

      Fig 10: Removing EGR Valve
      G03275237Courtesy of FORD MOTOR CO.
    16. NOTE: Clean the gasket mating surfaces and install new gaskets.
  16. To install, reverse the removal procedure.
