Exhaust Gas Recirculation (EGR) Vacuum Regulator Solenoid - 4.0L SOHC

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the electrical connector and the vacuum lines from the exhaust gas recirculation (EGR) vacuum regulator solenoid.

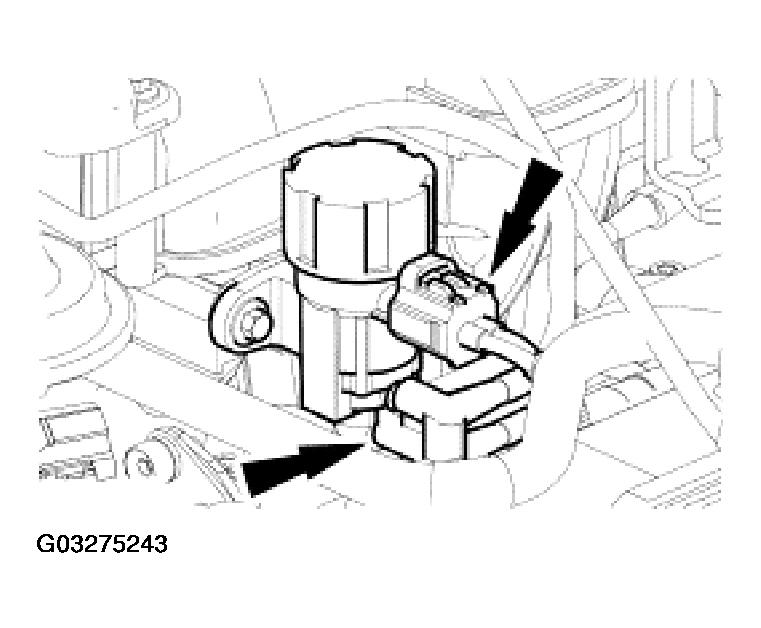

Fig 1: Disconnecting Electrical Connector And Vacuum Lines
Courtesy of FORD MOTOR CO.
Remove the retaining bolts and the EGR vacuum regulator solenoid.

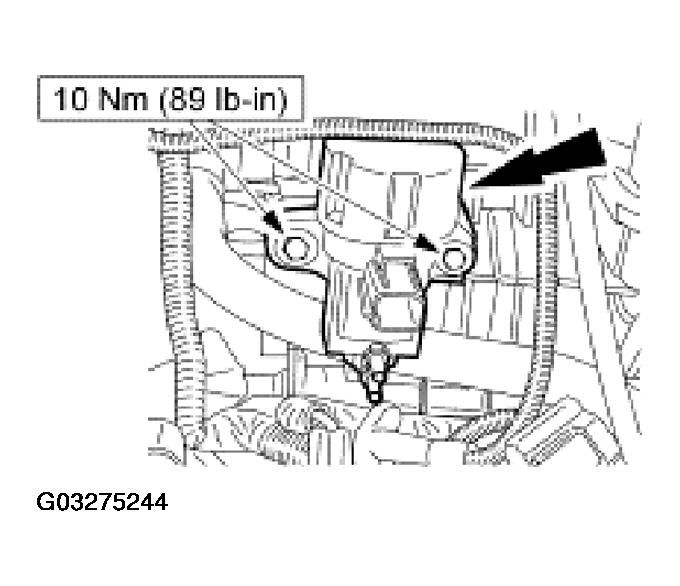

Fig 2: Removing Retaining EGR Vacuum Regulator Solenoid
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
