Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left front inner fenderwell splash shield.

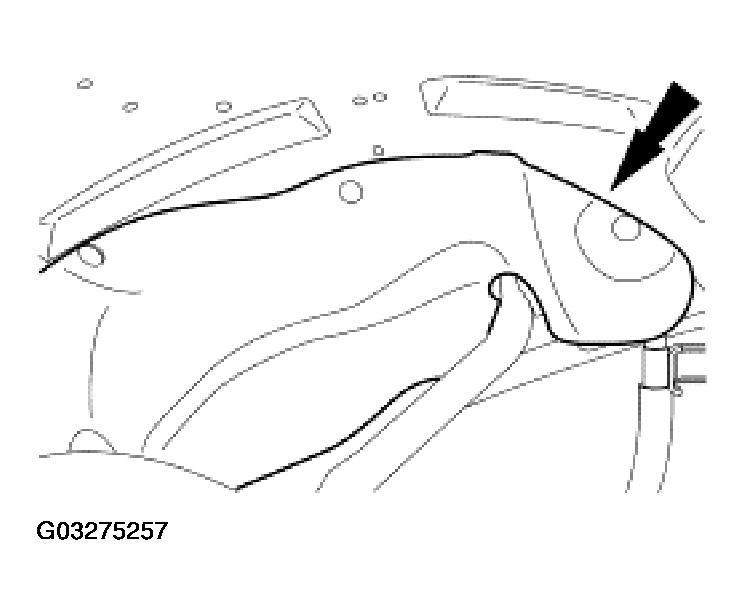

Fig 1: Removing Left Front Inner Fenderwell Splash Shield
Courtesy of FORD MOTOR CO.
Disconnect the coolant bypass hose from the routing clip.

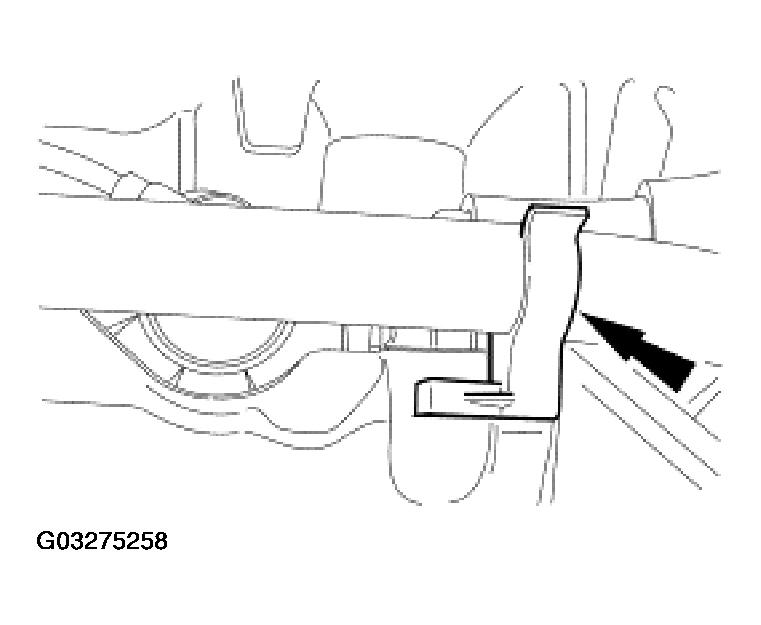

Fig 2: Disconnecting Coolant Bypass Hose From Routing Clip
Courtesy of FORD MOTOR CO.
Pry the positive crankcase ventilation (PCV) valve cap off the two tabs and position the PCV valve aside.

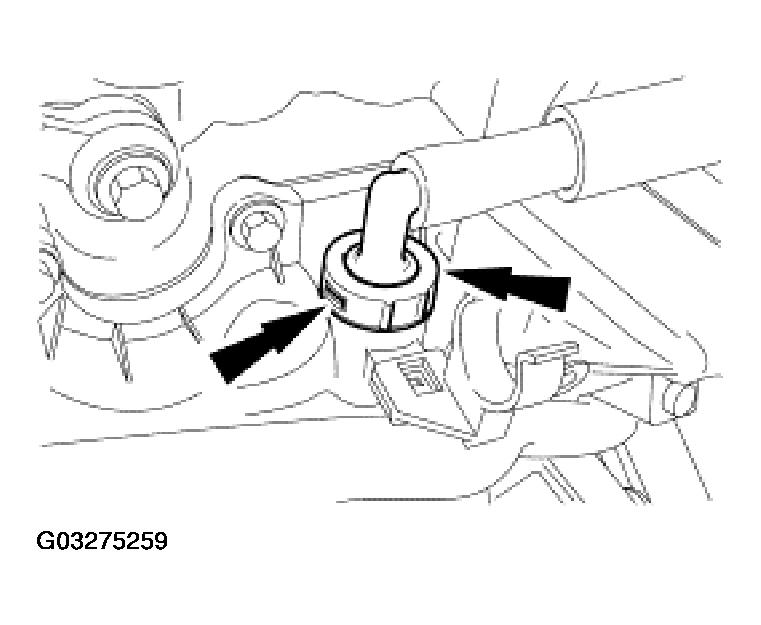

Fig 3: Removing PCV Valve Cap
Courtesy of FORD MOTOR CO.
Remove the bolts and the crankcase vent oil separator.

Fig 4: Removing Crankcase Vent Oil Separator
Courtesy of FORD MOTOR CO.

NOTE: Clean the gasket mating surfaces.

To install, reverse the removal procedure.
