Spark Plug Coils & Firing Order (4.6L) (Not Coil On Plug)

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2002 Mercury Villager, 2002 Mercury Mountaineer, 2002 Lincoln Navigator, 2002 Lincoln Blackwood, and 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

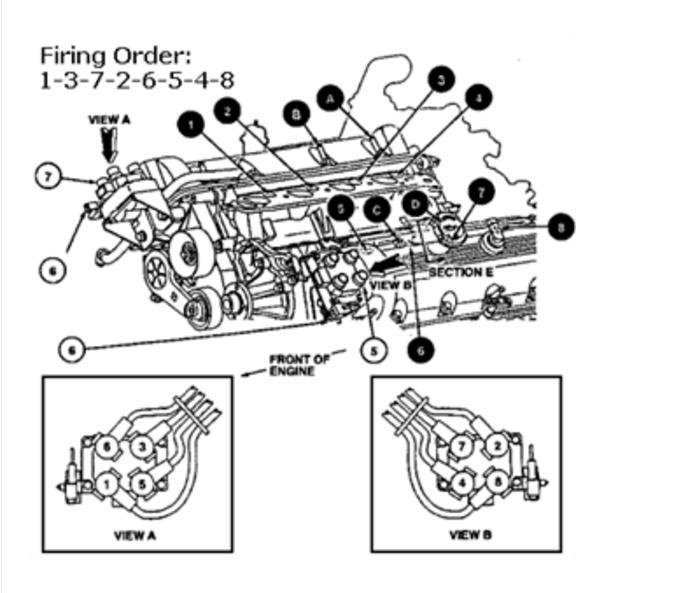

Fig 1: Identifying Spark Plug Coils & Firing Order (4.6L )
G00561898Courtesy of FORD MOTOR CO.
