Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ignition coil electrical connector.

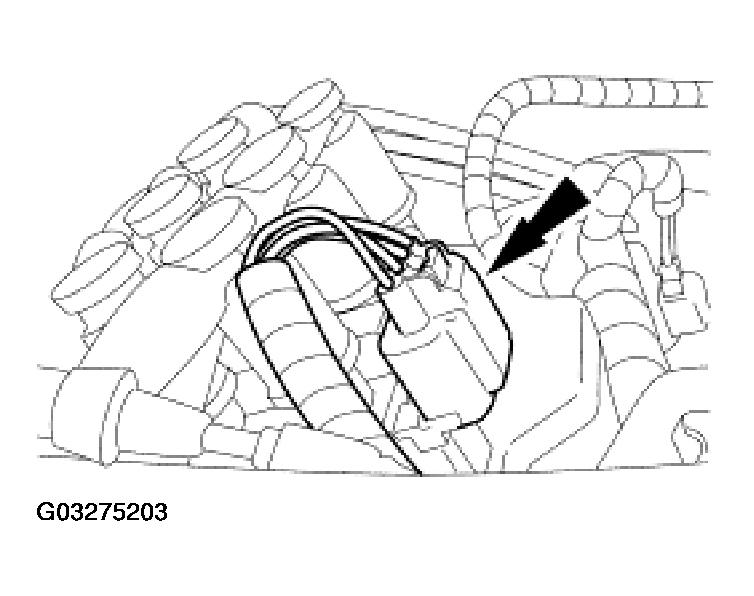

Fig 1: Disconnecting Ignition Coil Connector
Courtesy of FORD MOTOR CO.

CAUTION: Do not pull on the spark plug wire as it may separate from the spark plug wire connector inside the spark plug wire boot.

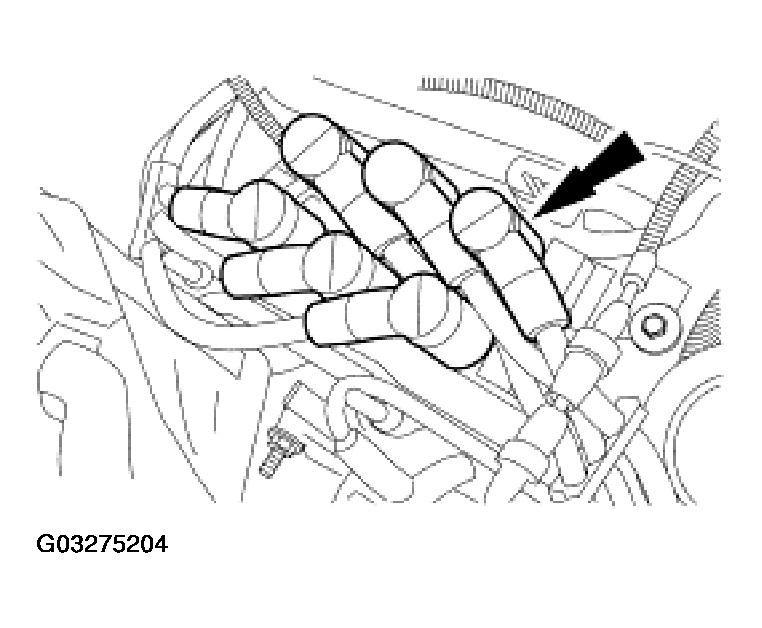

Fig 2: Disconnecting Spark Plug Wires

Courtesy of FORD MOTOR CO.

Disconnect the spark plug wires by twisting while pulling upward.
Disconnect the heater hose support from the stud.

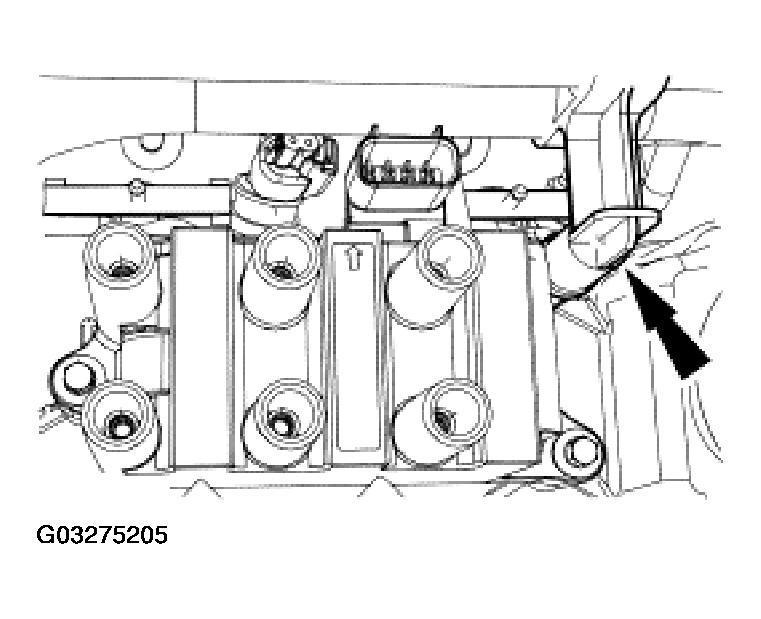

Fig 3: Disconnecting Heater Hose
Courtesy of FORD MOTOR CO.
Remove the two bolts, one stud and the ignition coil.

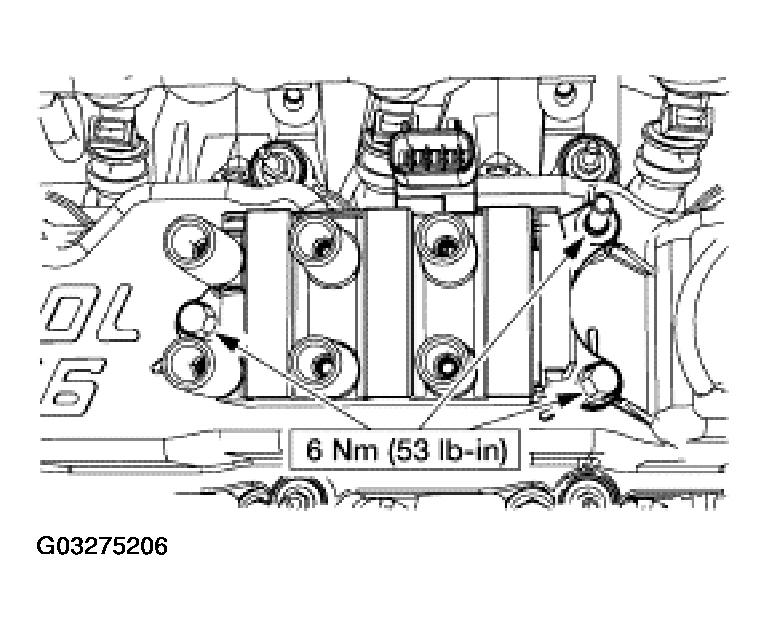

Fig 4: Removing Ignition Coil
Courtesy of FORD MOTOR CO.
Wipe the ignition coil towers with a clean cloth dampened with soap and water.
To install, reverse the removal procedure.
- Use a small, clean tool to coat the entire interior surface of the boot with silicone brake caliper grease.
