Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the spark plug wire from the spark plug. For additional information, refer to SPARK PLUG WIRE .

NOTE: Remove foreign material with compressed air.

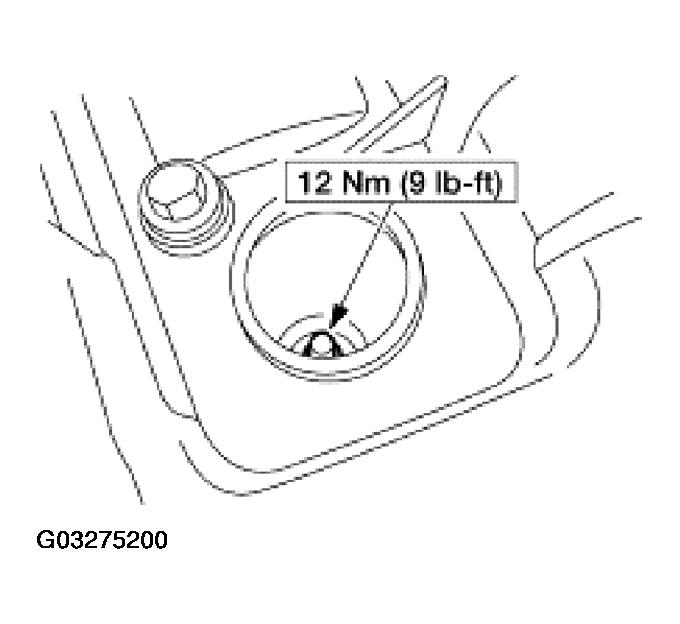

Fig 1: Removing Spark Plug

Courtesy of FORD MOTOR CO.

Remove the spark plug.
Inspect the spark plugs.

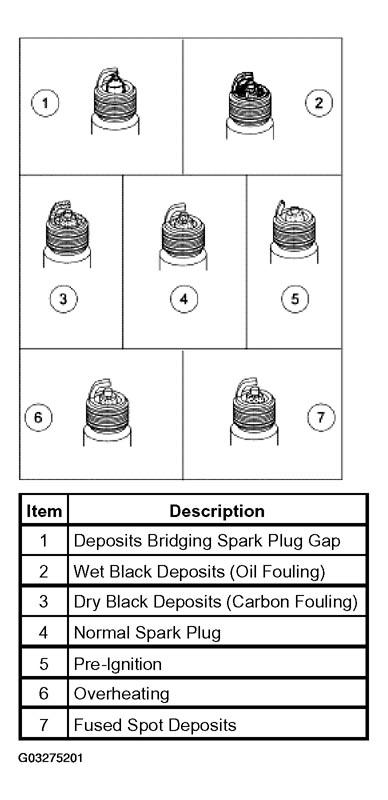

Fig 2: Inspecting Spark Plugs
Courtesy of FORD MOTOR CO.
Check and adjust the spark plug gap as necessary.

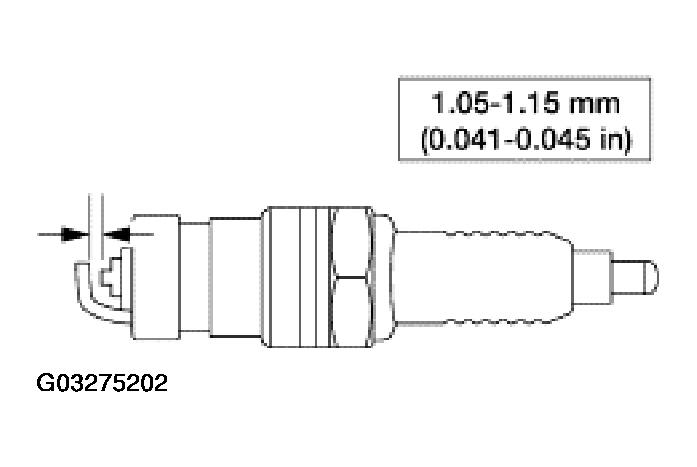

Fig 3: Checking And Adjusting Spark Plug Gap
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
