Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not pull on the spark plug wire as it may separate from the spark plug wire connector inside the spark plug wire boot.

NOTE: Wipe the spark plug wire sets with a clean, damp cloth before inspecting them. Without removing the spark plug wire sets from the spark plugs or ignition coils, inspect them for visible damage such as cuts, pinches, or cracked or torn boots.

Remove the spark plug wire by slightly twisting while pulling upwards.

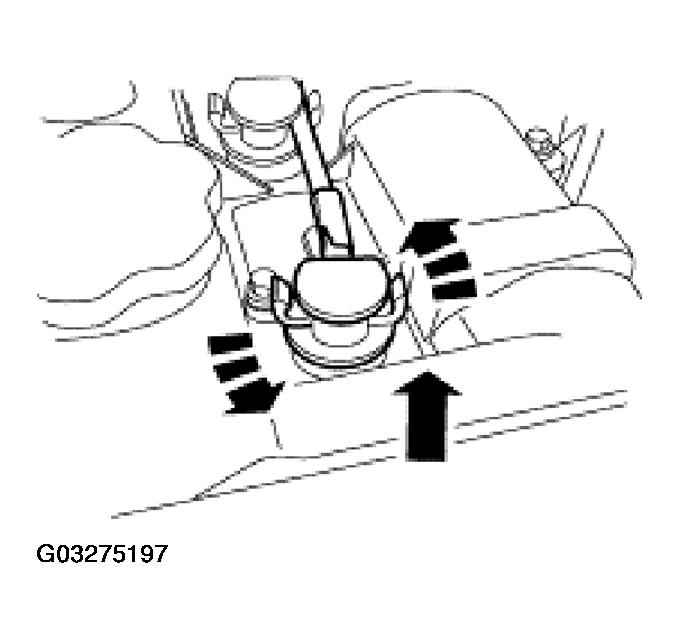

Fig 1: Removing Spark Plug Wires - Coil
Courtesy of FORD MOTOR CO.
Remove the spark plug wire by slightly twisting while pulling upwards.

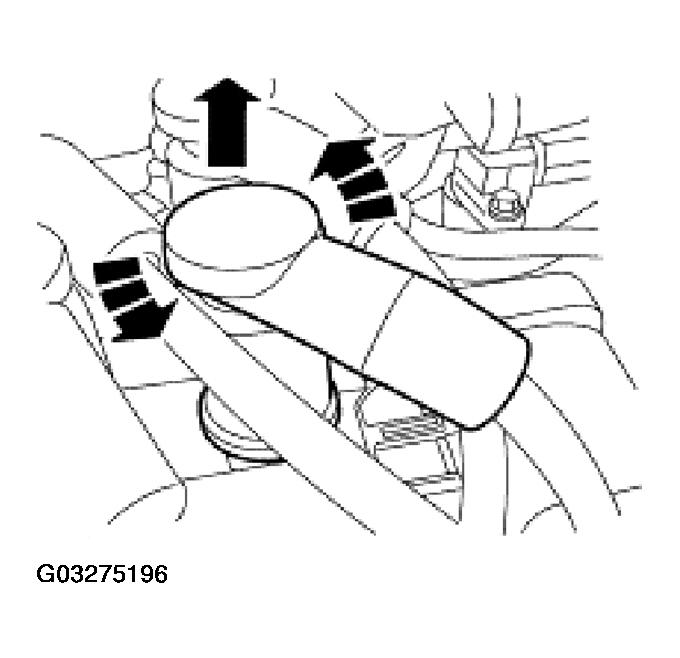

Fig 2: Removing Spark Plug Wires - Spark Plugs
Courtesy of FORD MOTOR CO.
Disconnect the spark plug wire if routed through another spark plug wire.

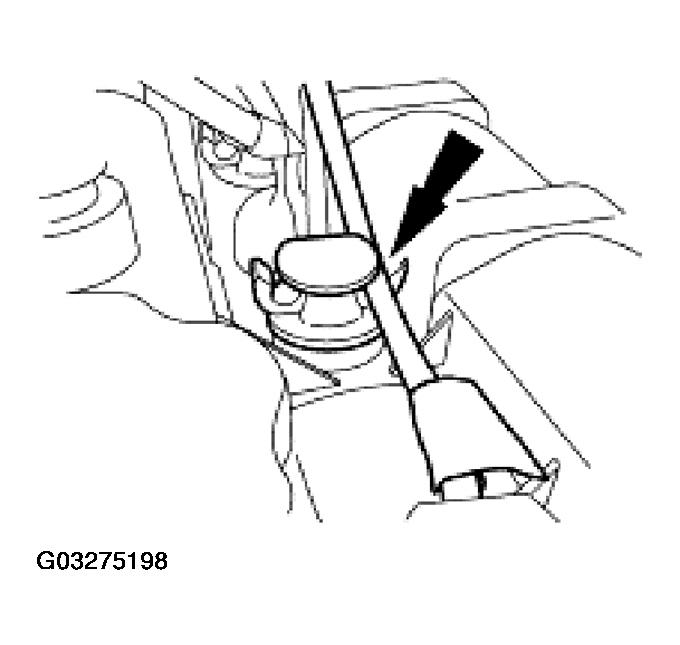

Fig 3: Disconnecting Spark Plug Wire If Routed Through Another Spark Plug Wire
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Apply silicone dielectric compound to the locations shown.

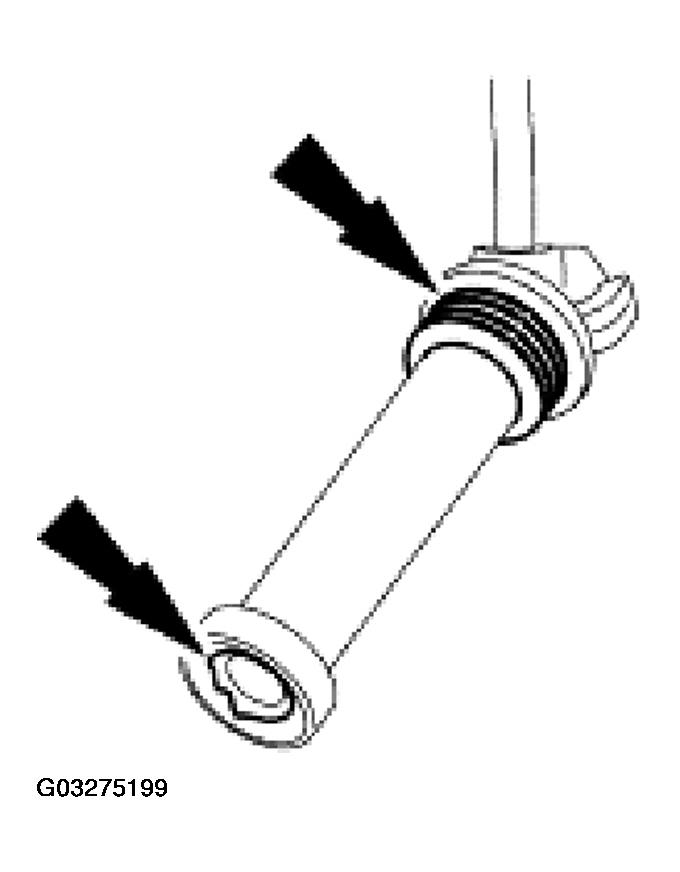

  Fig 4: Applying Silicone Dielectric Compound To Spark Plug Boots
  Courtesy of FORD MOTOR CO.
