Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the intake manifold. For additional information, refer to ENGINE 4.0L SOHC .
    3. NOTE: One connector is shown, the other five are similar.

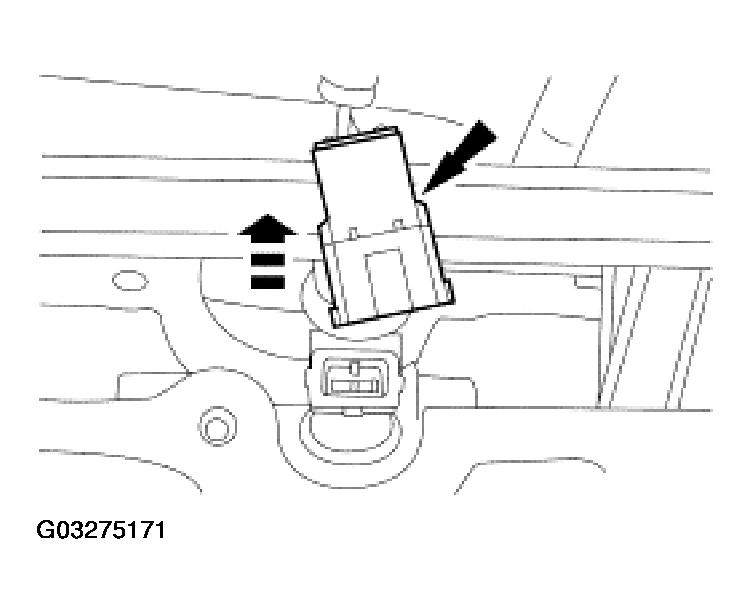

    Fig 1: Disconnecting Fuel Injector Connectors
    G03275171Courtesy of FORD MOTOR CO.
  3. Disconnect the six fuel injector electrical connectors.
  4. Remove the bolt.

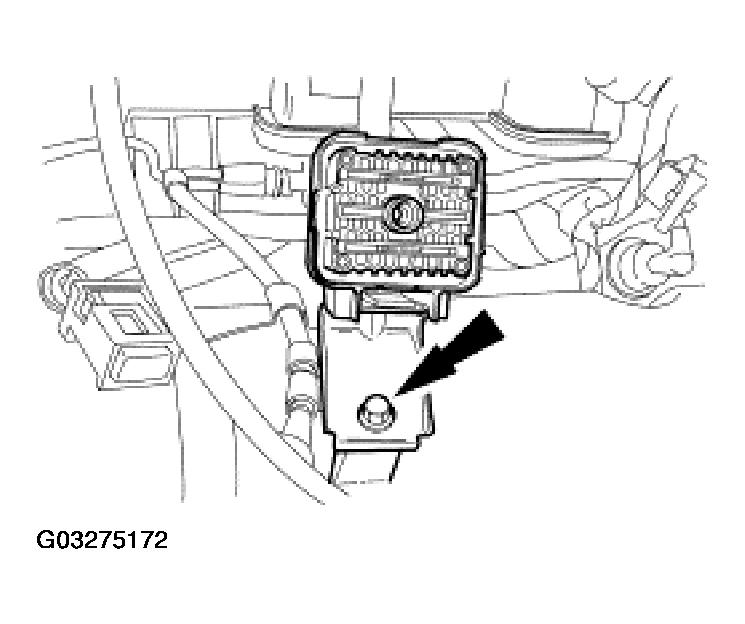

    Fig 2: Removing Bolt
    G03275172Courtesy of FORD MOTOR CO.
  5. Disconnect the ignition coil electrical connector.

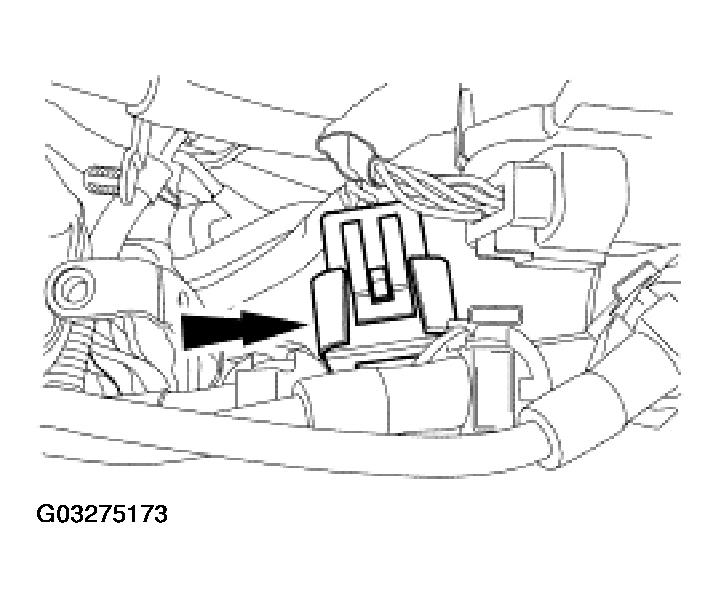

    Fig 3: Disconnecting Ignition Coil Connector
    G03275173Courtesy of FORD MOTOR CO.
  6. Disconnect the radio interference capacitor electrical connector.

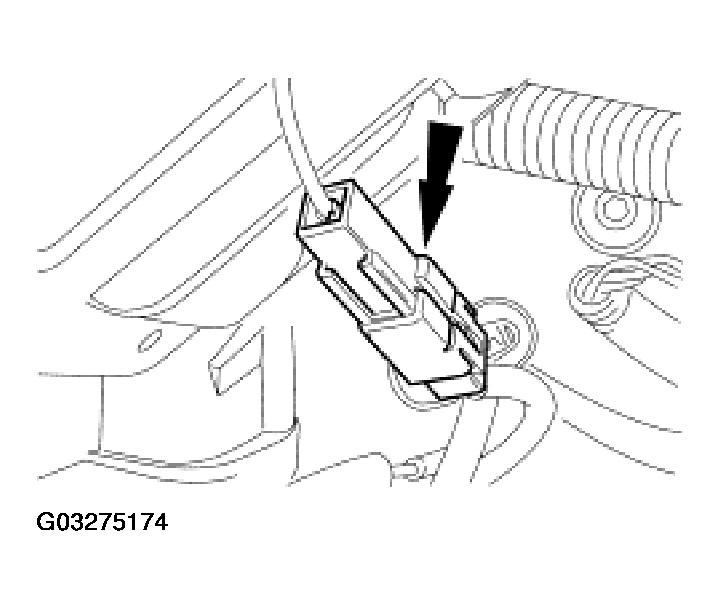

    Fig 4: Disconnecting Radio Interference Capacitor Connector
    G03275174Courtesy of FORD MOTOR CO.
  7. Disconnect the engine coolant temperature (ECT) sensor electrical connector and the water temperature indicator sender unit connector.

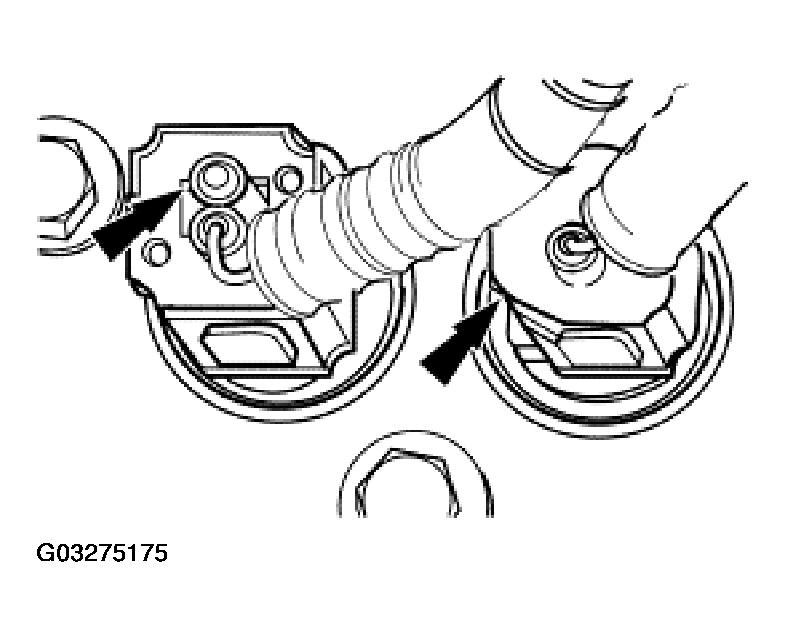

    Fig 5: Disconnecting ECT Sensor & Water Temperature Indicator Sender Unit Connectors
    G03275175Courtesy of FORD MOTOR CO.
  8. Disconnect the differential pressure feedback transducer electrical connector and the camshaft position (CMP) sensor electrical connector.

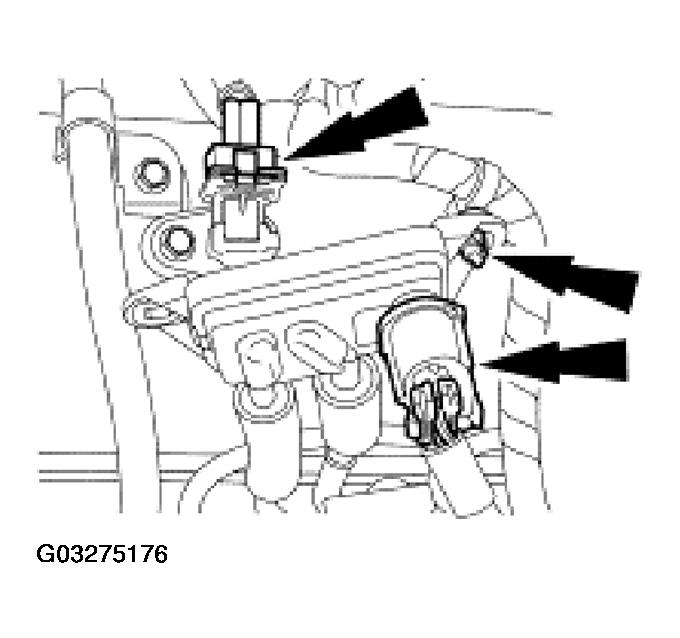

    Fig 6: Disconnecting Differential Pressure Feedback Transducer & CMP Sensor Connectors
    G03275176Courtesy of FORD MOTOR CO.
  9. Remove the drive belt tensioner. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  10. Disconnect the generator wiring and position the wiring aside.

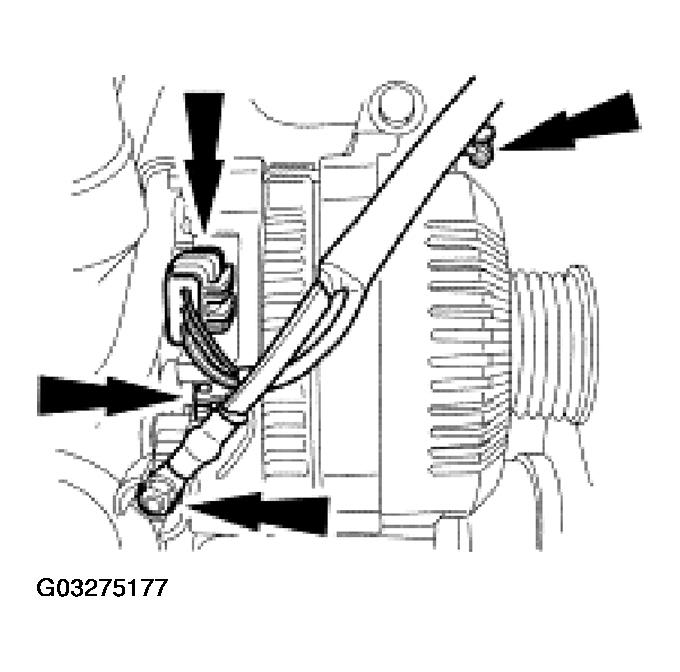

    Fig 7: Disconnecting Generator Wiring And Position Wiring Aside
    G03275177Courtesy of FORD MOTOR CO.
  11. Remove the generator mounting bracket.

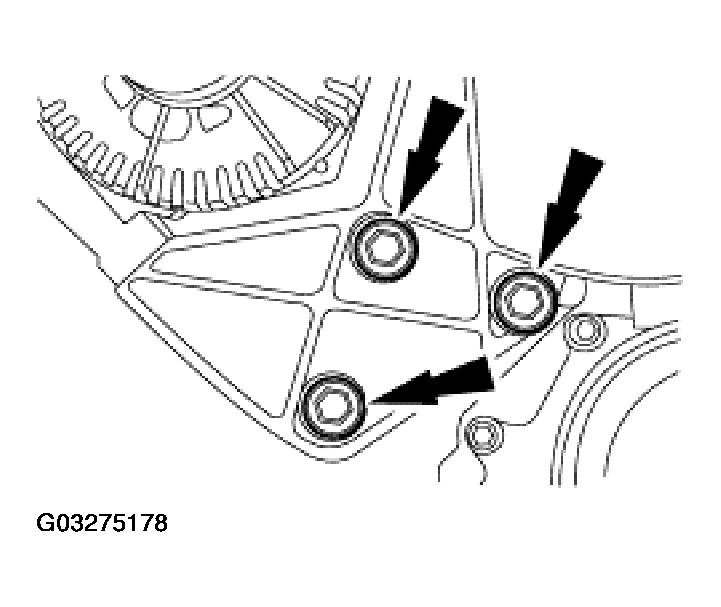

    Fig 8: Removing Generator Mounting Bracket
    G03275178Courtesy of FORD MOTOR CO.
  12. Disconnect the heated oxygen sensor (HO2S) electrical connector and release the pin-type retainer and the transmission line routing clip.

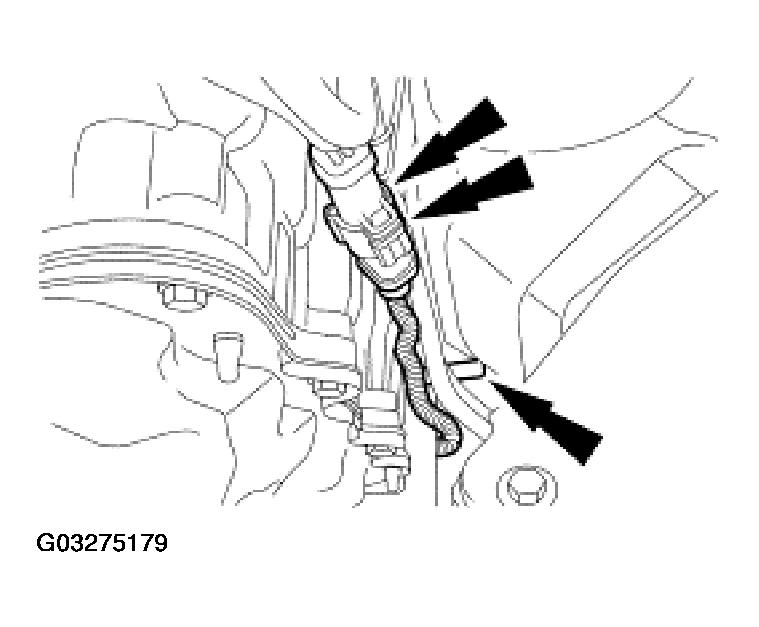

    Fig 9: Disconnecting HO2S Sensor
    G03275179Courtesy of FORD MOTOR CO.
  13. Remove the HO2S wiring anchor from the cover stud.

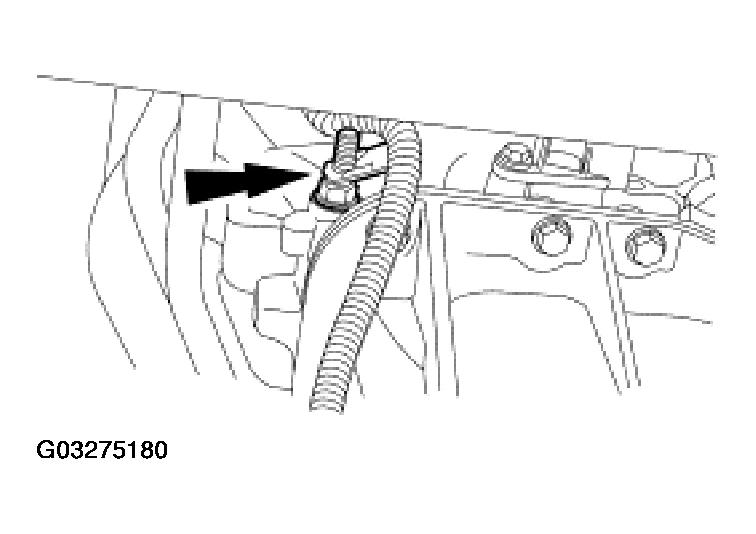

    Fig 10: Removing HO2S Wiring Anchor From Cover Stud
    G03275180Courtesy of FORD MOTOR CO.
  14. Disconnect the crankshaft position (CKP) sensor electrical connector.

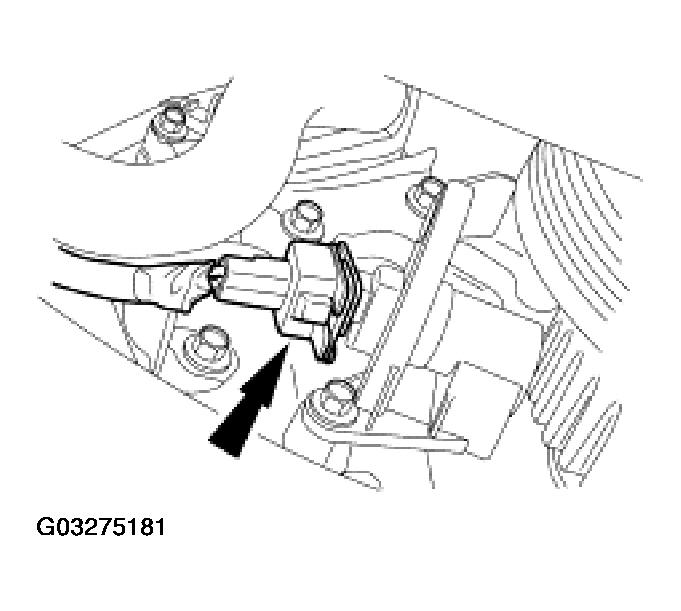

    Fig 11: Disconnecting CKP) Sensor Electrical Connector
    G03275181Courtesy of FORD MOTOR CO.
  15. Remove the wiring anchors and position the wiring aside.

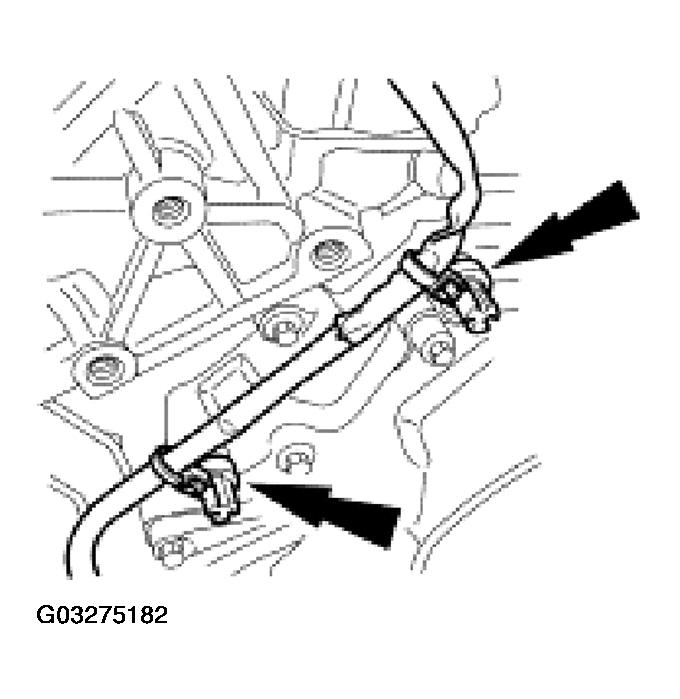

    Fig 12: Removing Wiring Anchors And Position Wiring Aside
    G03275182Courtesy of FORD MOTOR CO.
  16. Disconnect the HO2S electrical connector from the RH side of the transmission and release the wiring pin-type retainer from the bracket.

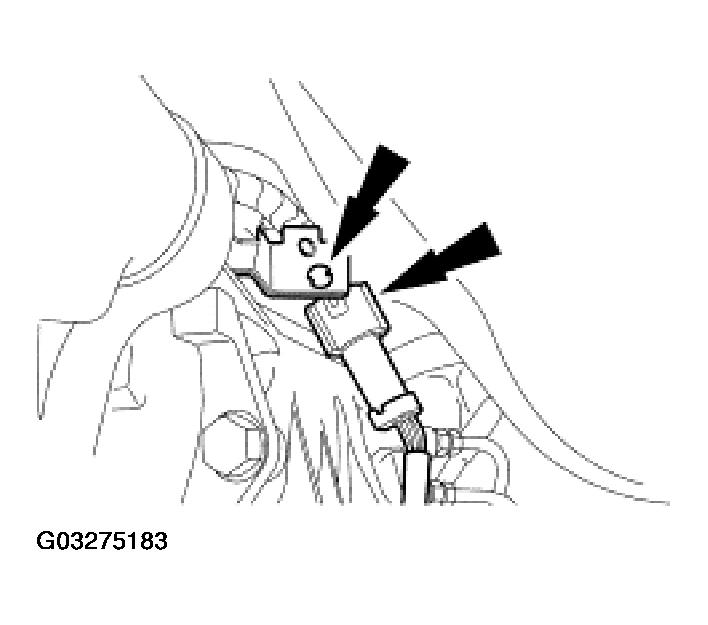

    Fig 13: Disconnecting HO2S Electrical Connector - RH Side Of Transmission
    G03275183Courtesy of FORD MOTOR CO.
  17. Disconnect the electrical connector on the crossmember.

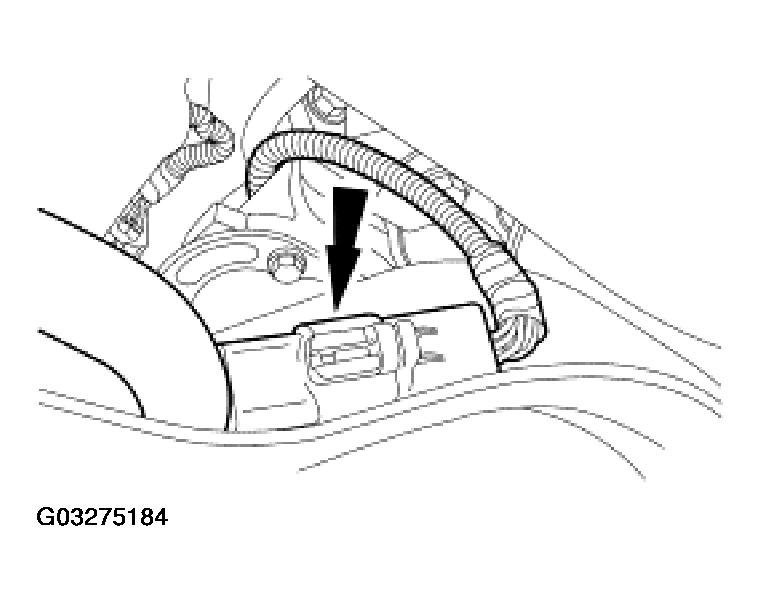

    Fig 14: Disconnecting Electrical Connector Crossmember
    G03275184Courtesy of FORD MOTOR CO.
  18. Disconnect the catalyst monitor sensor electrical connector.

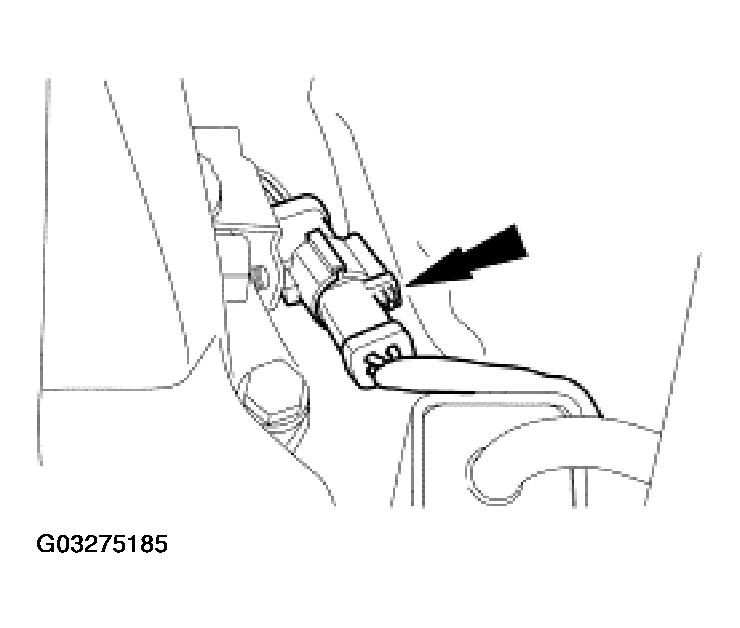

    Fig 15: Disconnecting Catalyst Monitor Sensor Electrical Connector
    G03275185Courtesy of FORD MOTOR CO.
  19. Release the transmission/transfer case portion of the wiring harness from any routing clips or push-pins.
  20. Route the transmission/transfer case portion of the wiring harness to the top of the engine.
  21. Remove the wiring harness from the vehicle.
  22. To install, reverse the removal procedure.
