Throttle Body

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the bolt and the snow shield

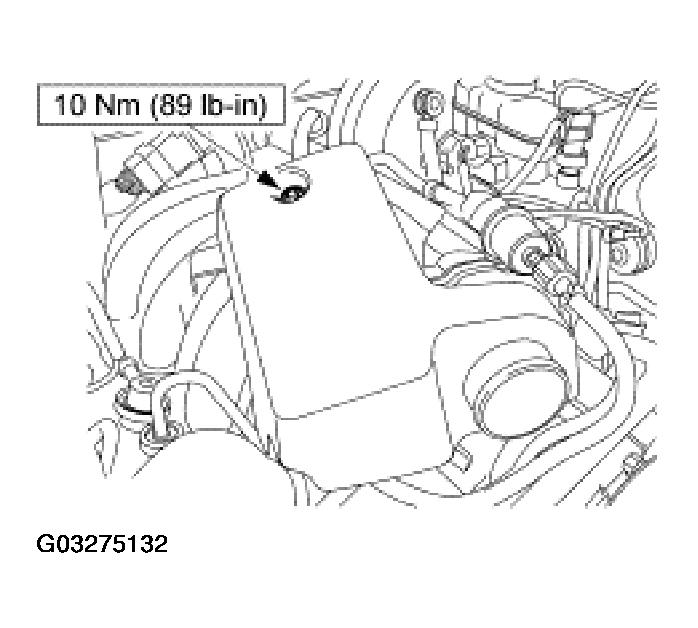

Fig 1: Removing Bolt And Snow Shield
Courtesy of FORD MOTOR CO.
Disconnect the throttle position (TP) sensor electrical connector.

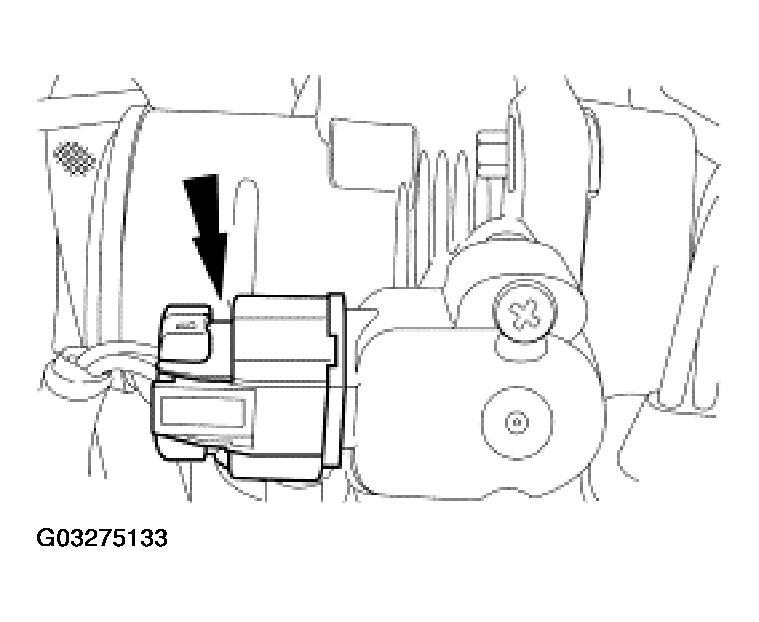

Fig 2: Disconnecting TP Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable, the speed control cable and the return spring.

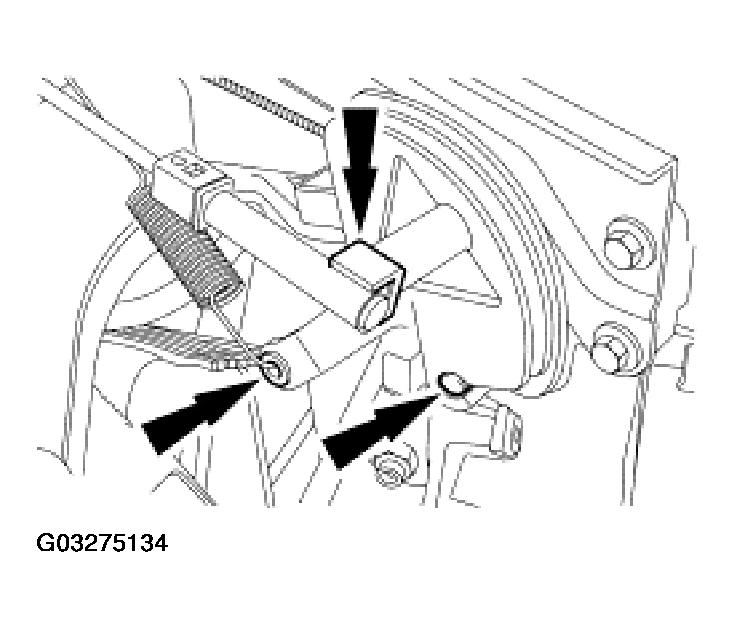

Fig 3: Disconnecting Accelerator Cable, Speed Control Cable And Return Spring
Courtesy of FORD MOTOR CO.
Remove the bolts and the throttle body.

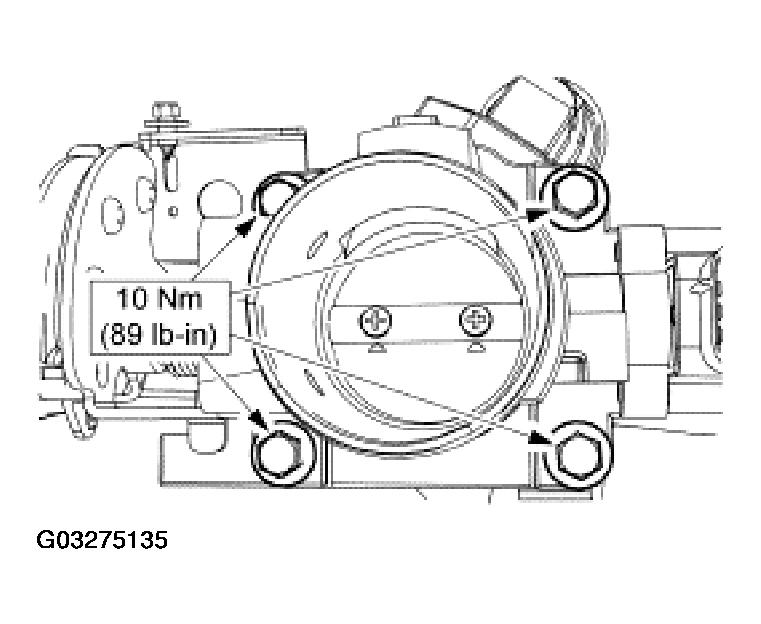

Fig 4: Removing Throttle Body
Courtesy of FORD MOTOR CO.
If necessary, install a new throttle body gasket.
If necessary, remove the TP sensor.

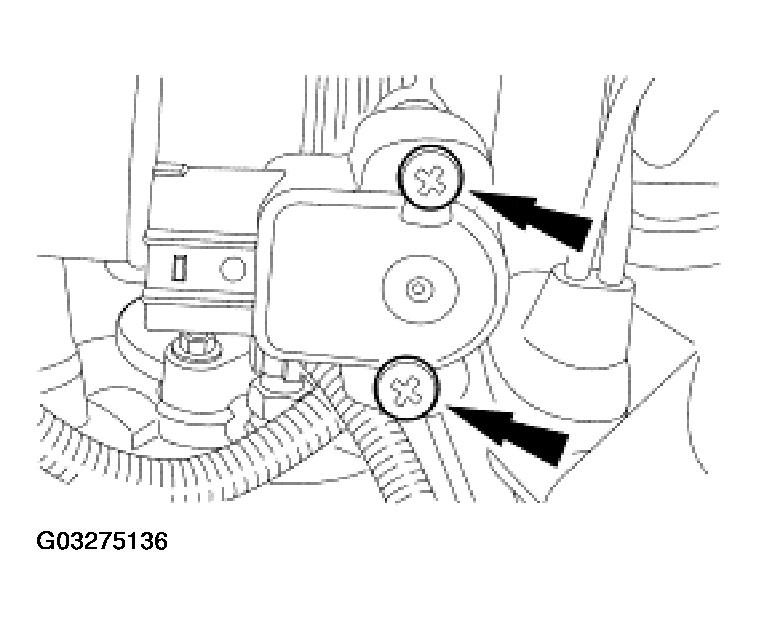

Fig 5: Removing TP Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
