Fuel Injectors: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Release the fuel pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Remove the upper intake manifold. For additional information, refer to ENGINE 3.0L (2V) .
Disconnect the engine control sensor wiring from the fuel injectors.

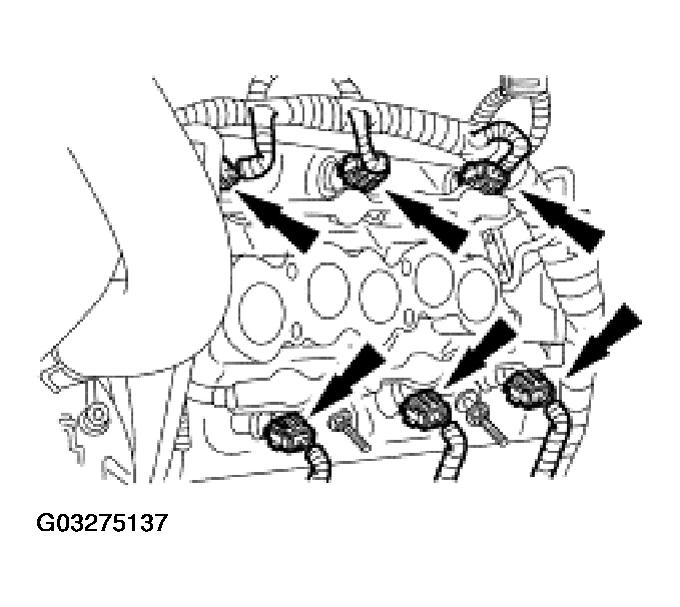

Fig 1: Disconnecting Engine Control Sensor Wiring From Fuel Injectors
Courtesy of FORD MOTOR CO.
Disconnect the fuel hose. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Remove the fuel injection supply manifold.
- Remove the four bolts.
- Remove the fuel injection supply manifold and the fuel injectors as an assembly.

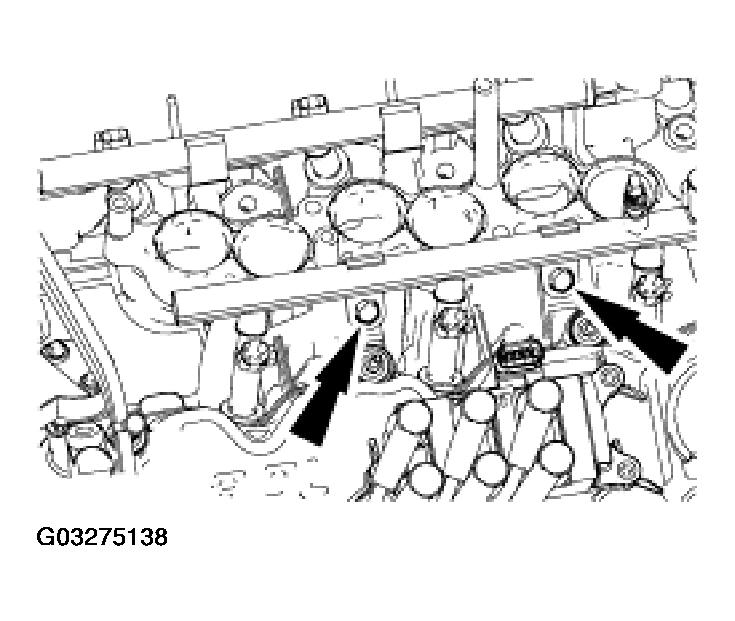

  Fig 2: Removing Fuel Injection Supply Manifold
  Courtesy of FORD MOTOR CO.
Remove the six fuel injectors from the fuel supply manifold.
- Remove and discard the fuel injector O-rings.

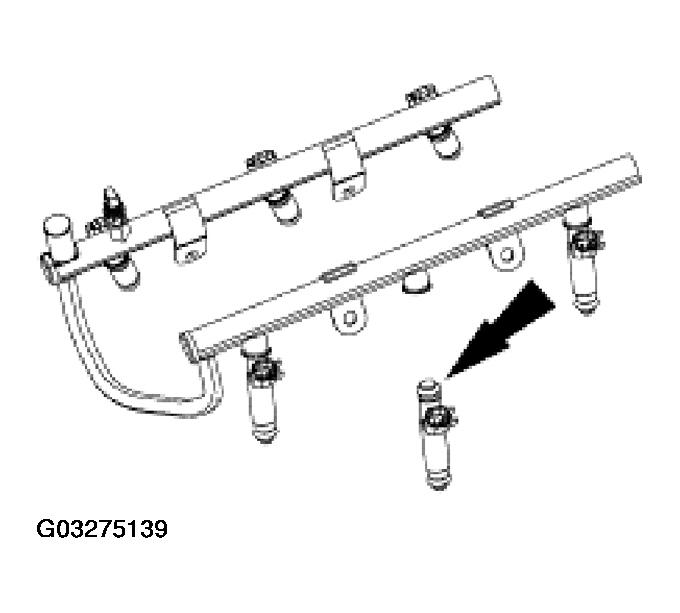

  Fig 3: Removing And Discarding Fuel Injector O-Rings
  Courtesy of FORD MOTOR CO.
