Fuel Injectors: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the new O-rings with clean engine oil.

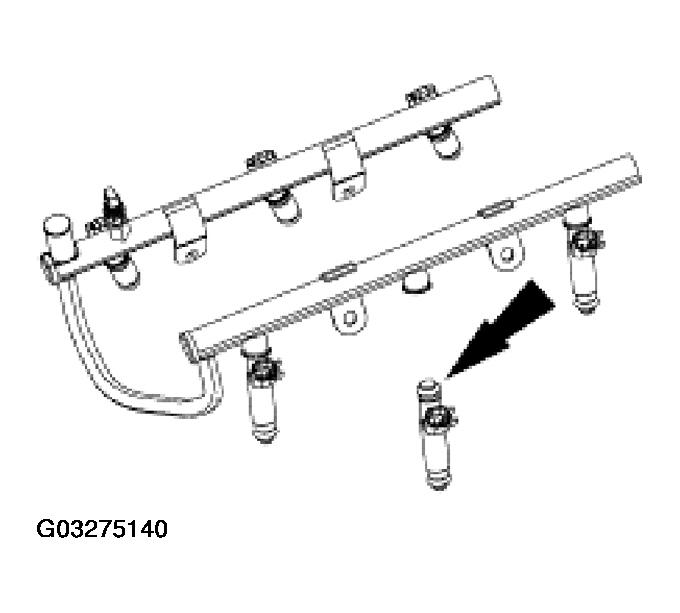

Fig 1: Installing New O-Rings On Fuel Injectors

Courtesy of FORD MOTOR CO.

Install new O-rings on the fuel injectors and install the fuel injectors.

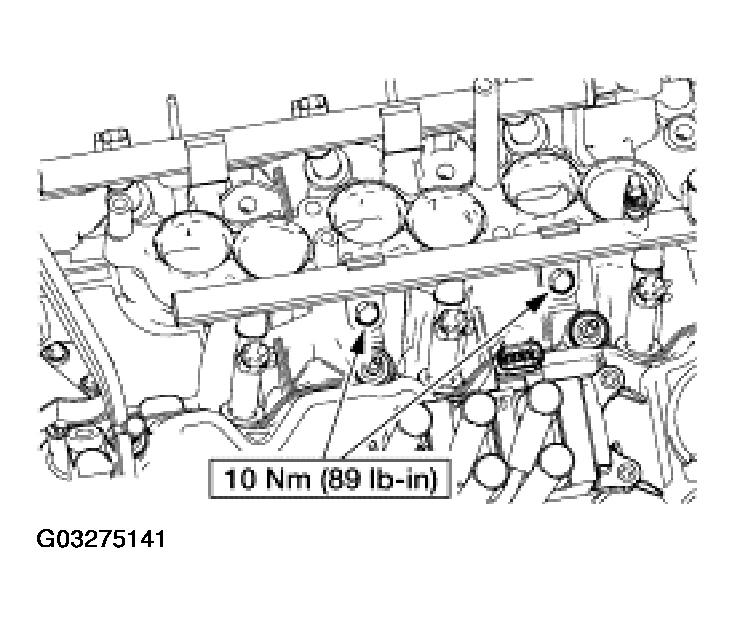

Install the fuel injection supply manifold.

Fig 2: Installing Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.

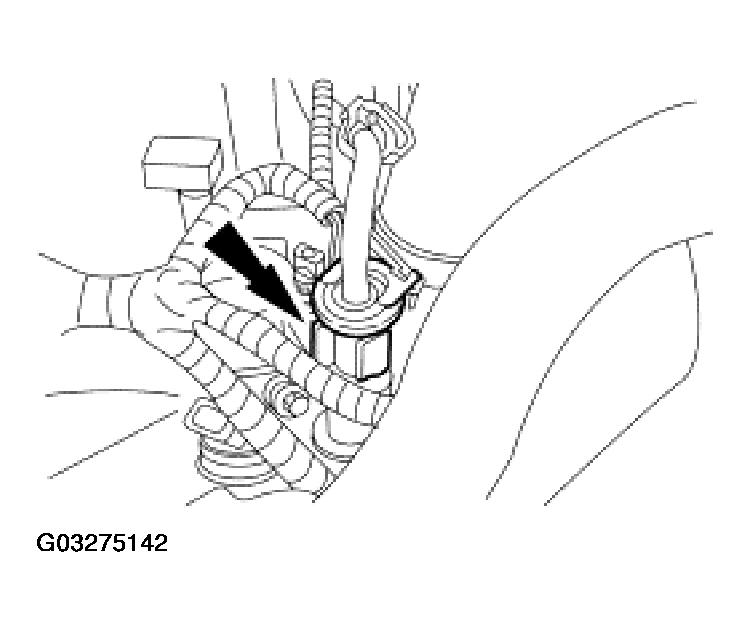

Connect the fuel hose. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

Fig 3: Connecting Fuel Hose
Courtesy of FORD MOTOR CO.

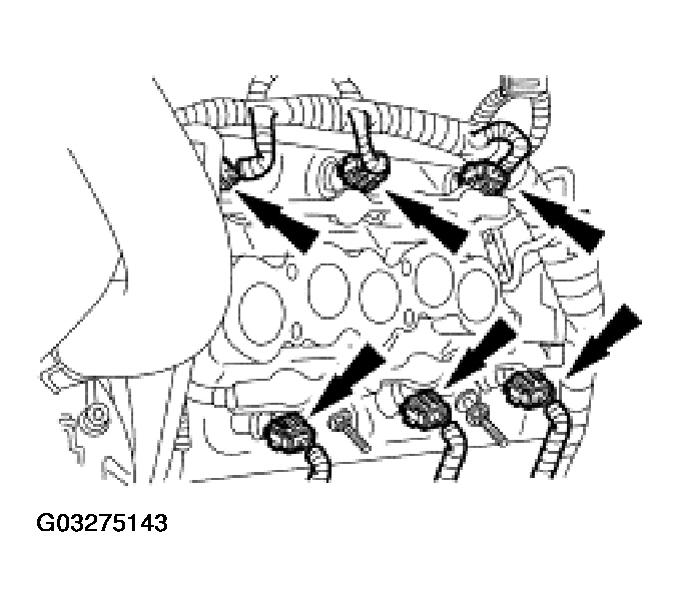

Connect the fuel injector electrical connectors.

Fig 4: Connecting Fuel Injector Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the upper intake manifold. For additional information, refer to ENGINE 3.0L (2V) .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
