Fuel Charging Wiring Harness: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine control sensor wiring.
  2. Install the ground strap and the stud bolt.

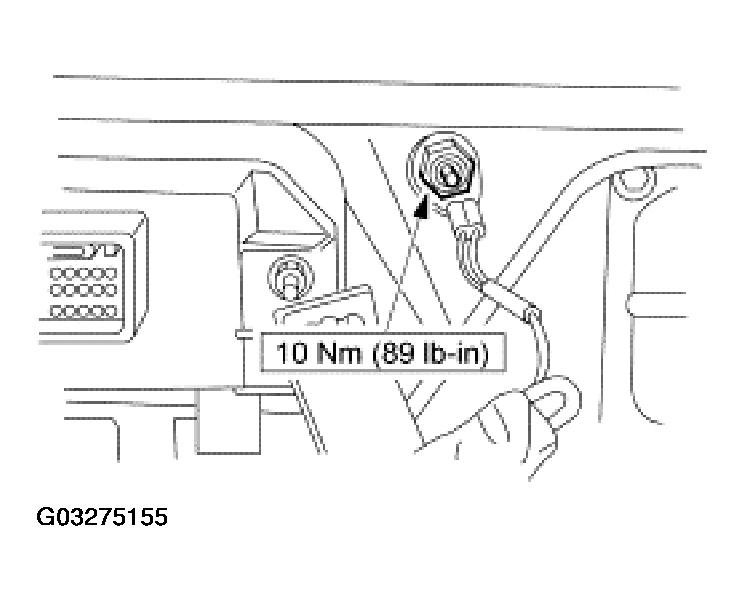

    Fig 1: Installing Ground Strap And Stud Bolt
    G03275155Courtesy of FORD MOTOR CO.
  3. Install the nut.

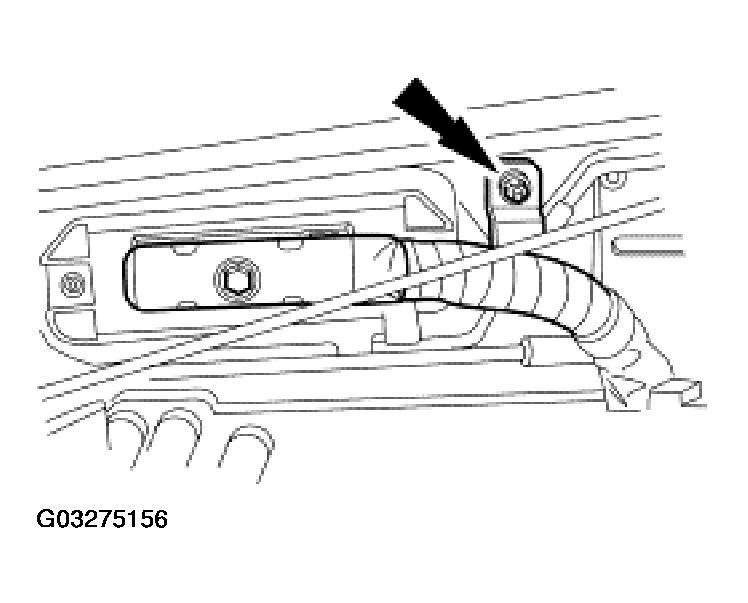

    Fig 2: Installing Nut
    G03275156Courtesy of FORD MOTOR CO.
  4. Connect the PCM electrical connector.

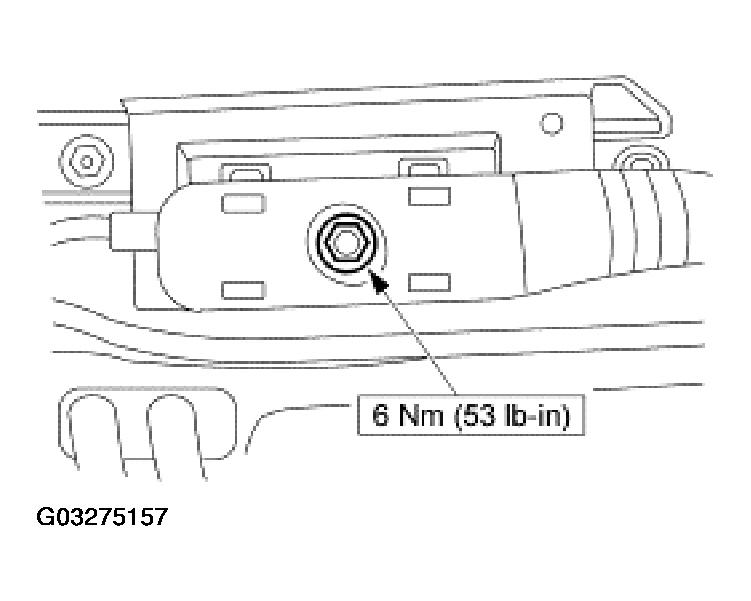

    Fig 3: Connecting PCM Electrical Connector
    G03275157Courtesy of FORD MOTOR CO.
  5. Connect the transmission harness electrical connectors.

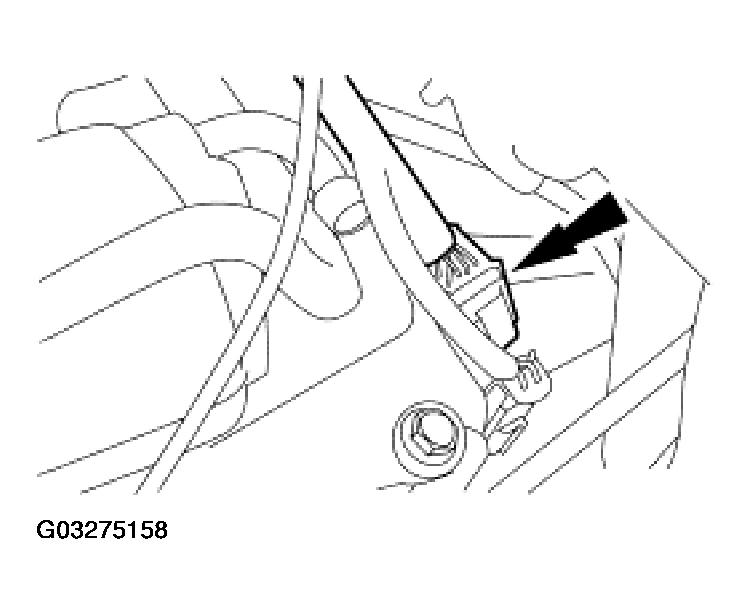

    Fig 4: Connecting Transmission Harness Electrical Connectors
    G03275158Courtesy of FORD MOTOR CO.
  6. Connect the oil pressure sensor electrical connector.

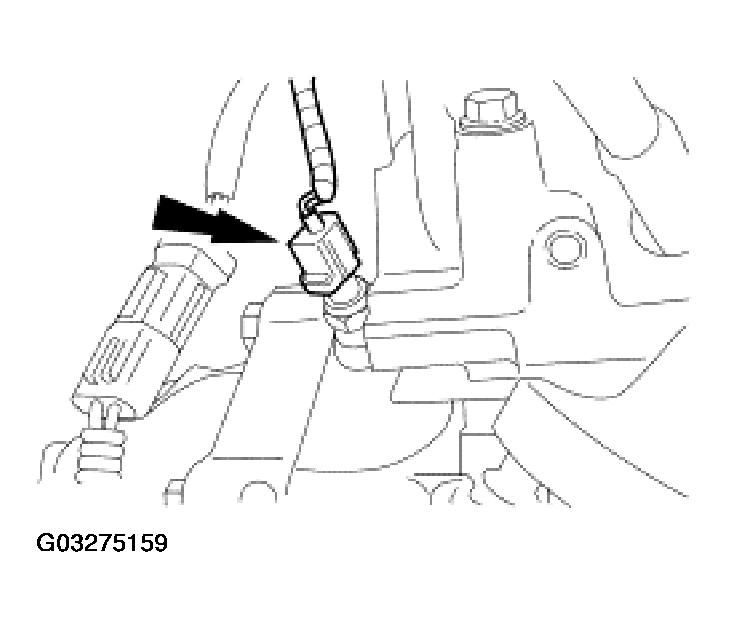

    Fig 5: Connecting Oil Pressure Sensor Electrical Connector
    G03275159Courtesy of FORD MOTOR CO.
  7. Connect the HO2S sensor electrical connectors.

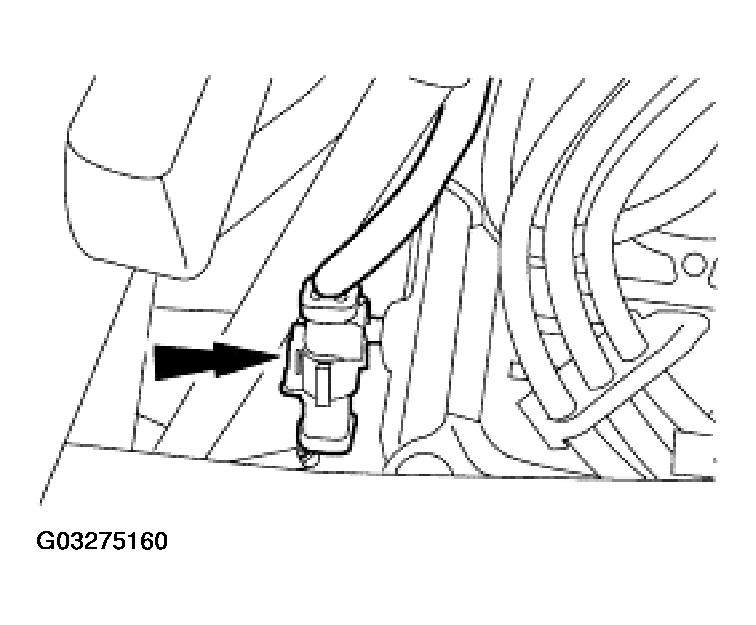

    Fig 6: Connecting HO2S Sensor Electrical Connectors
    G03275160Courtesy of FORD MOTOR CO.
  8. Connect the fuel injector electrical connectors.

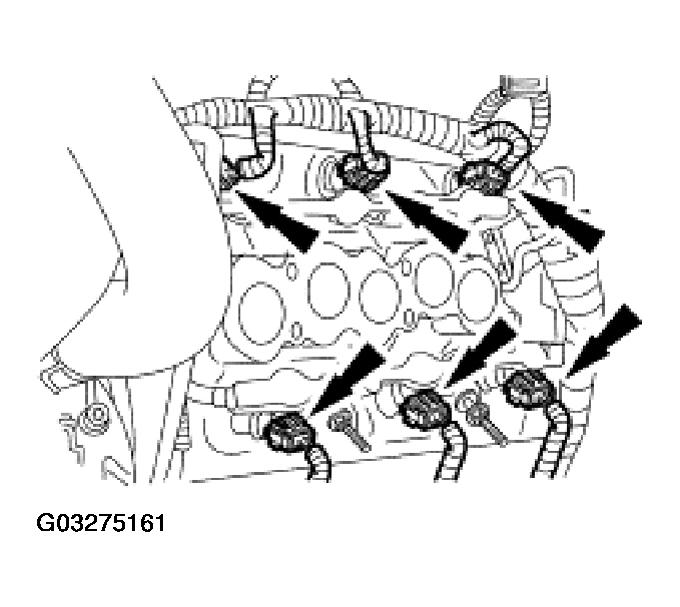

    Fig 7: Connecting Fuel Injector Electrical Connectors
    G03275161Courtesy of FORD MOTOR CO.
  9. Connect the MAF sensor electrical connector.

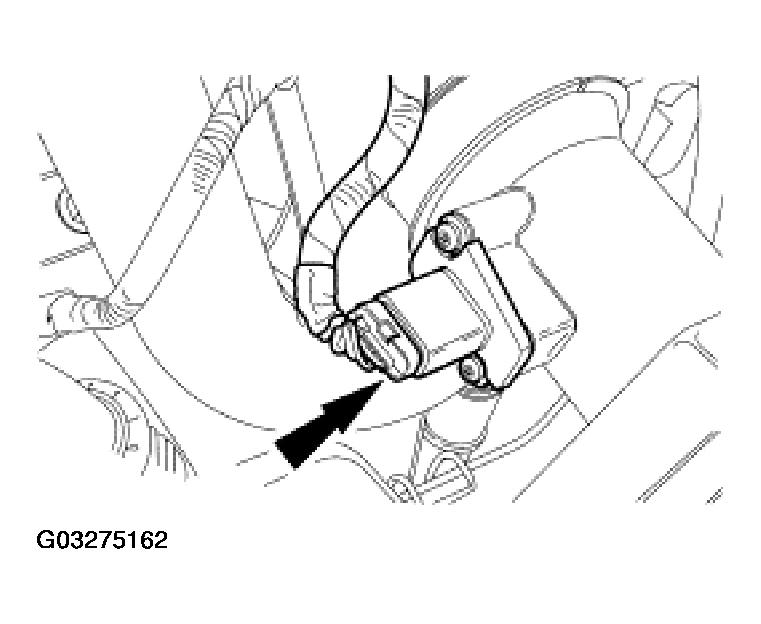

    Fig 8: Connecting MAF Sensor Connector
    G03275162Courtesy of FORD MOTOR CO.
  10. Connect the ECT sensor, the water temperature indicator sender unit and the camshaft synchronizer electrical connectors.

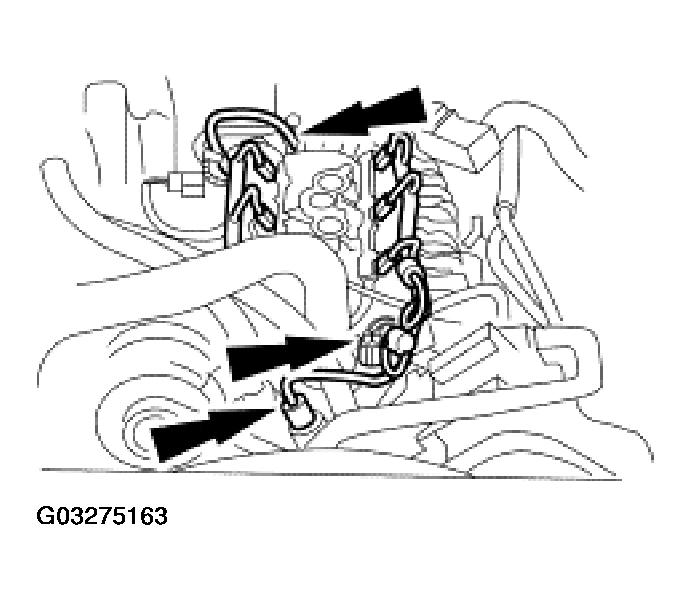

    Fig 9: Connecting ECT Sensor, Water Temperature Indicator Sender Unit And Camshaft Synchronizer Connectors
    G03275163Courtesy of FORD MOTOR CO.
  11. Connect the knock electrical connector sensor.

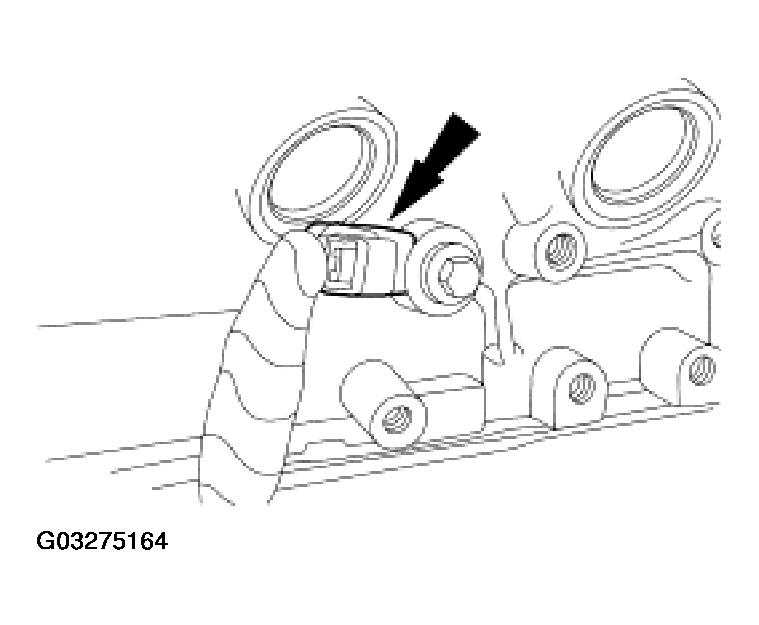

    Fig 10: Connecting Knock Connector Sensor
    G03275164Courtesy of FORD MOTOR CO.
  12. Connect the CKP sensor electrical connector.

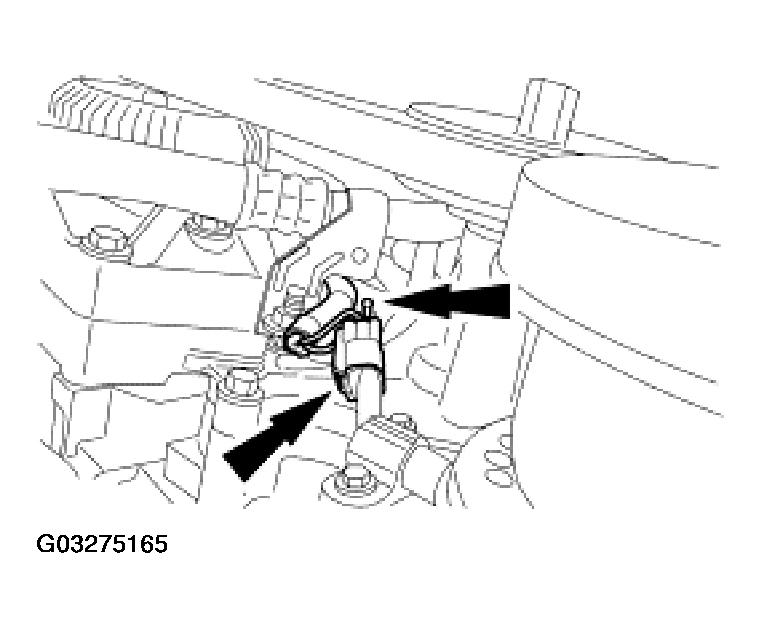

    Fig 11: Connecting CKP Sensor Connector
    G03275165Courtesy of FORD MOTOR CO.
  13. Install the upper intake manifold. For additional information, refer to ENGINE 3.0L (2V) .
  14. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
