Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

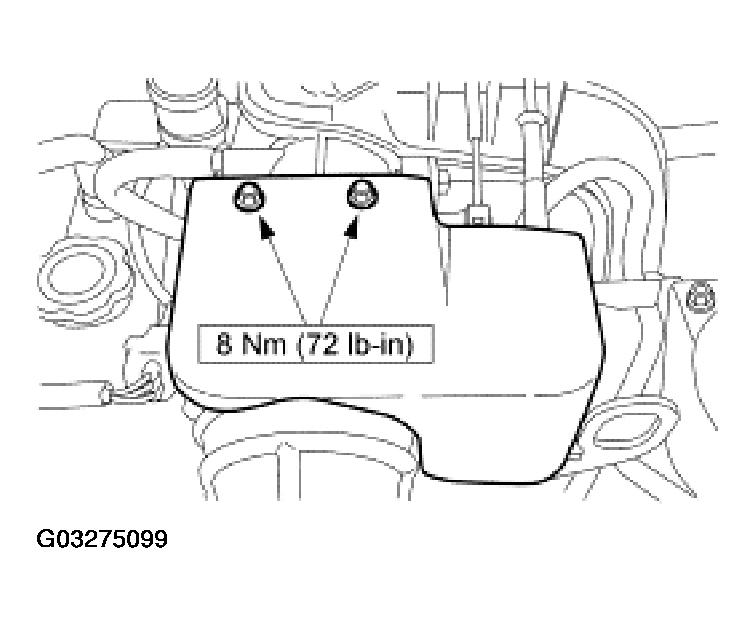

Remove the accelerator control snow shield.

Fig 1: Removing Accelerator Control Snow Shield
Courtesy of FORD MOTOR CO.
Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .

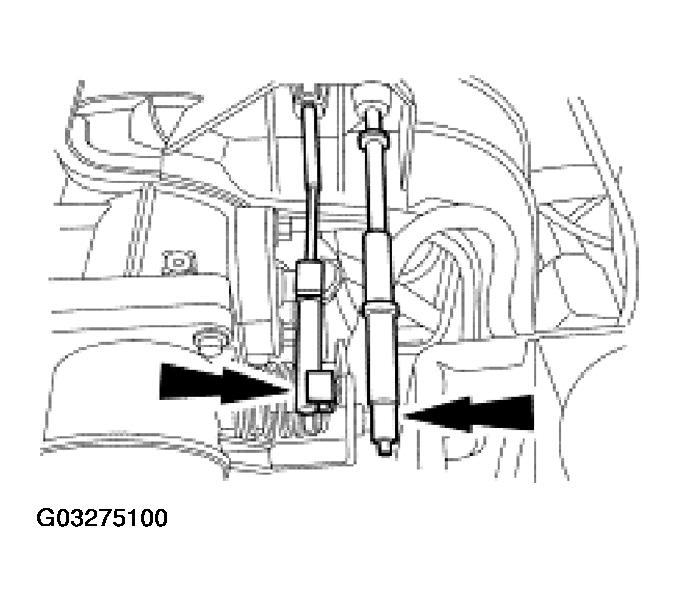

Remove the accelerator cable and the speed control cable (if equipped).

Fig 2: Removing Accelerator Cable And Speed Control Cable
Courtesy of FORD MOTOR CO.

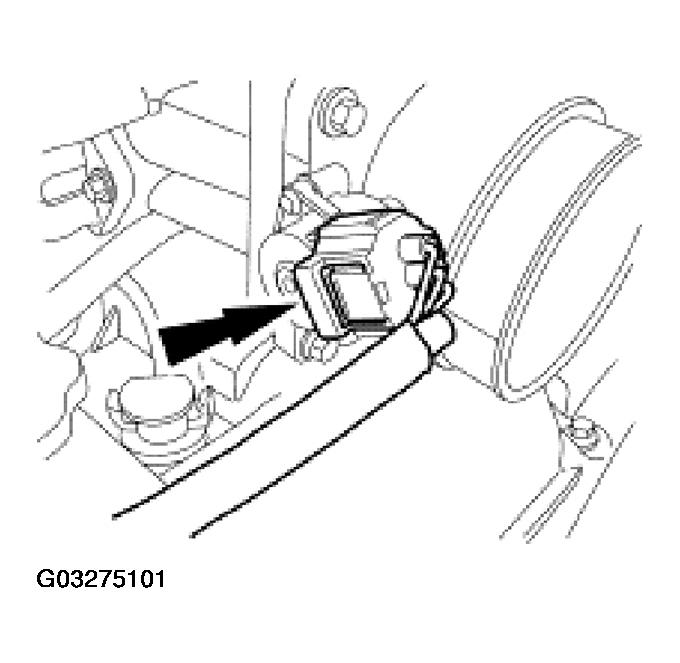

Disconnect the throttle position (TP) sensor electrical connector.

Fig 3: Disconnecting TP Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

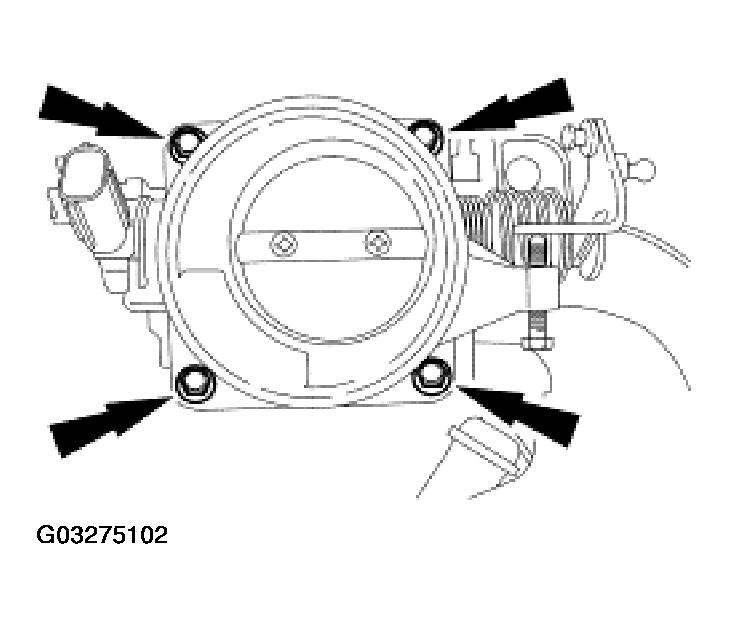

Remove the bolts and the throttle body.

Fig 4: Removing Throttle Body
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

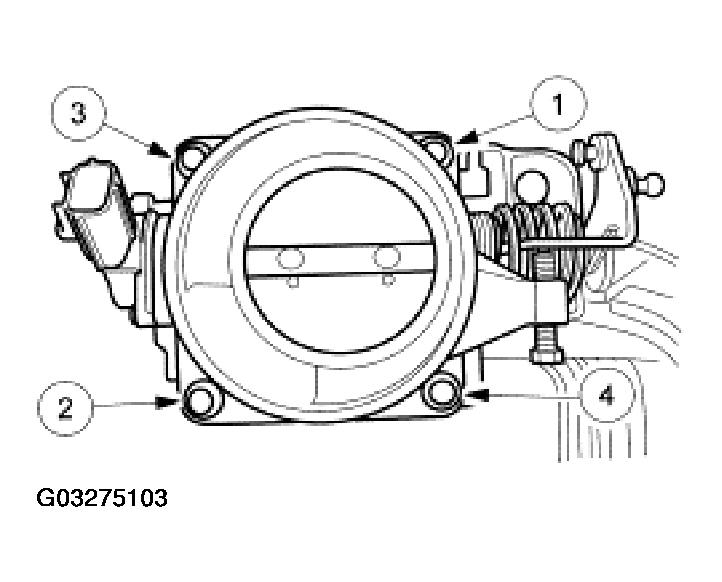

- Tighten the throttle body bolts in the sequence shown to 10 N.m (89 lb-in).

  Fig 5: Installing Throttle Body
  Courtesy of FORD MOTOR CO.
