Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Remove the fuel pressure relief valve cap.

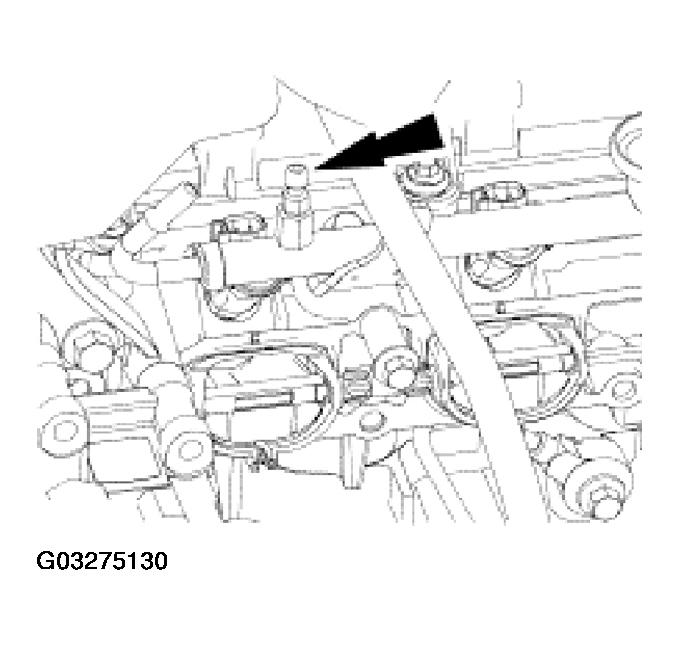

    Fig 1: Removing Fuel Pressure Relief Valve Cap
    G03275130Courtesy of FORD MOTOR CO.
  3. Release the fuel pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  4. Remove the fuel pressure relief valve.

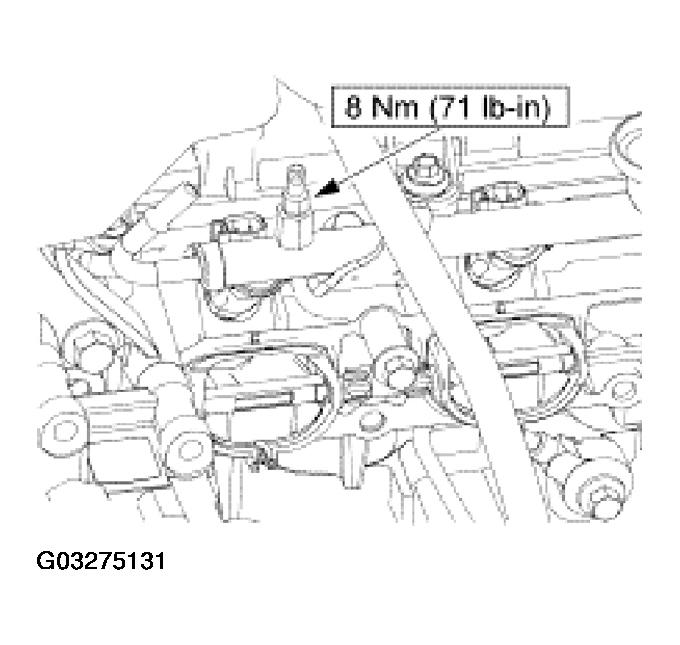

    Fig 2: Removing Fuel Pressure Relief Valve
    G03275131Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
