Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel injection supply manifold. For additional information, refer to FUEL INJECTION SUPPLY MANIFOLD .
Remove the fuel injectors (9F593).
1. Remove the retaining clip.
2. Remove the fuel injector.

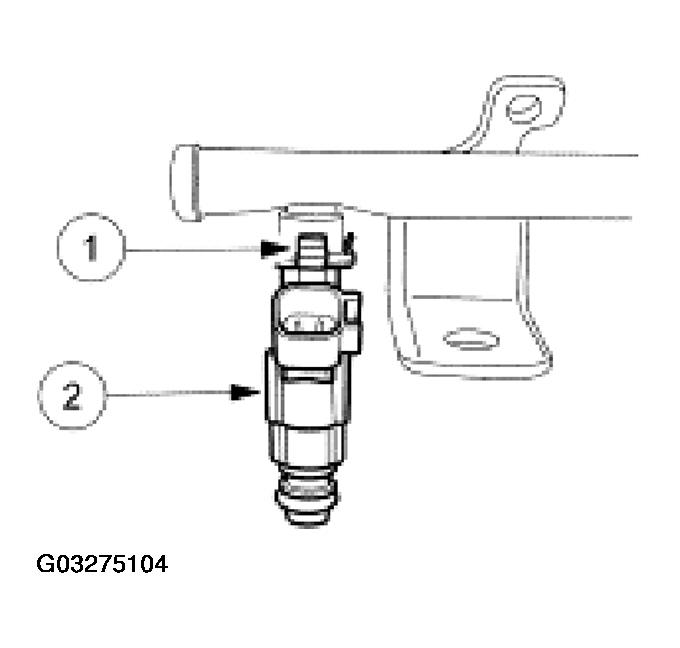

  Fig 1: Removing Fuel Injectors (9F593)
  Courtesy of FORD MOTOR CO.

CAUTION: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-ring seals can cause the fuel system to leak. Do not reuse the O-ring seals.

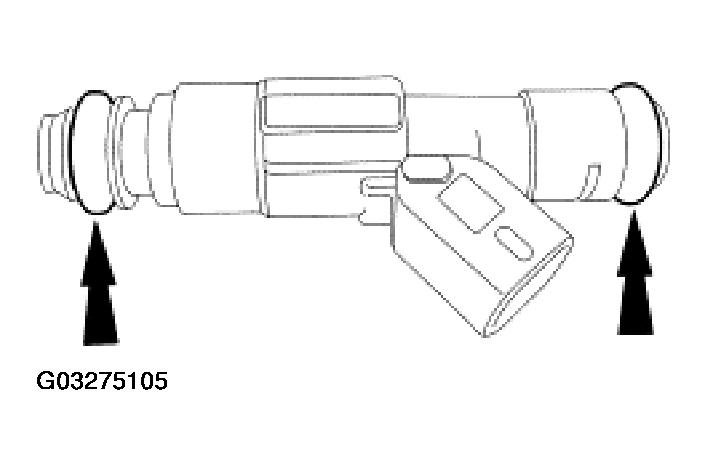

Fig 2: Installing New O-Rings

Courtesy of FORD MOTOR CO.

Install new O-rings.

NOTE: Lubricate the O-rings with clean engine oil.

To install, reverse the removal procedure.
