Water Pump - 3.0L: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING - 3.0L AND 4.0L .
Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Remove the fan blade and the fan shroud. For additional information, refer to COOLING FAN SHROUD - 3.0L AND 4.0L .

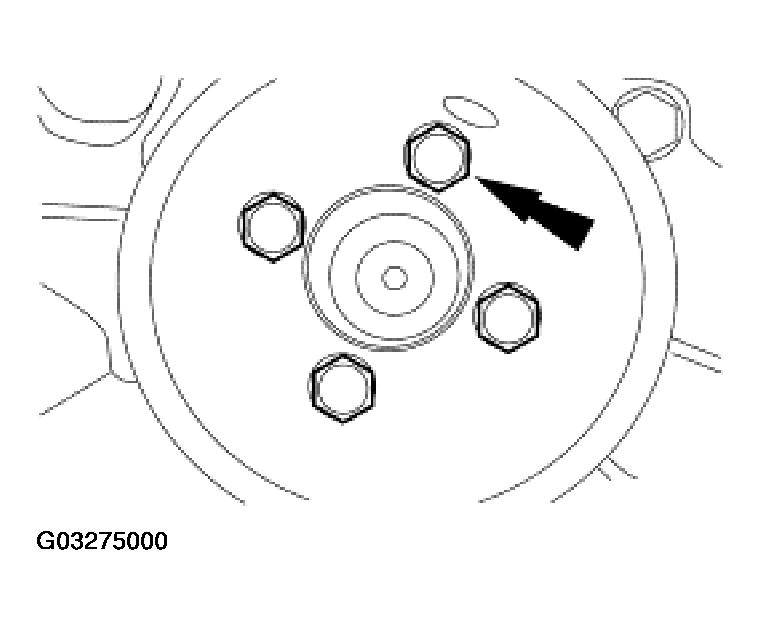

Remove the bolts and the water pump pulley.

Fig 1: Removing Water Pump Pulley
Courtesy of FORD MOTOR CO.

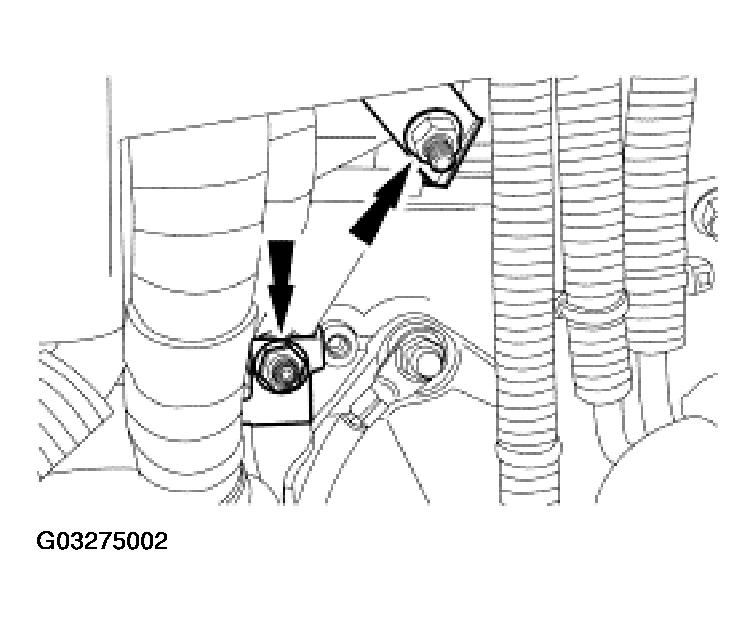

Disconnect the heater hose and the wiring harness anchor.

Fig 2: Disconnecting Heater Hose And Wiring Harness Anchor
Courtesy of FORD MOTOR CO.

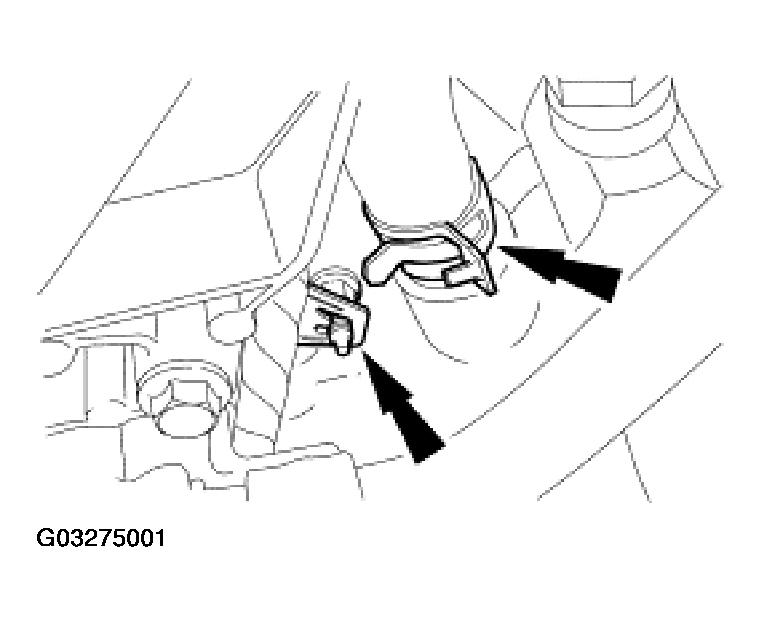

Remove the nuts and detach the fuel tube bracket and the wiring harness bracket.

Fig 3: Detaching Fuel Tube Bracket And Wiring Harness Bracket
Courtesy of FORD MOTOR CO.

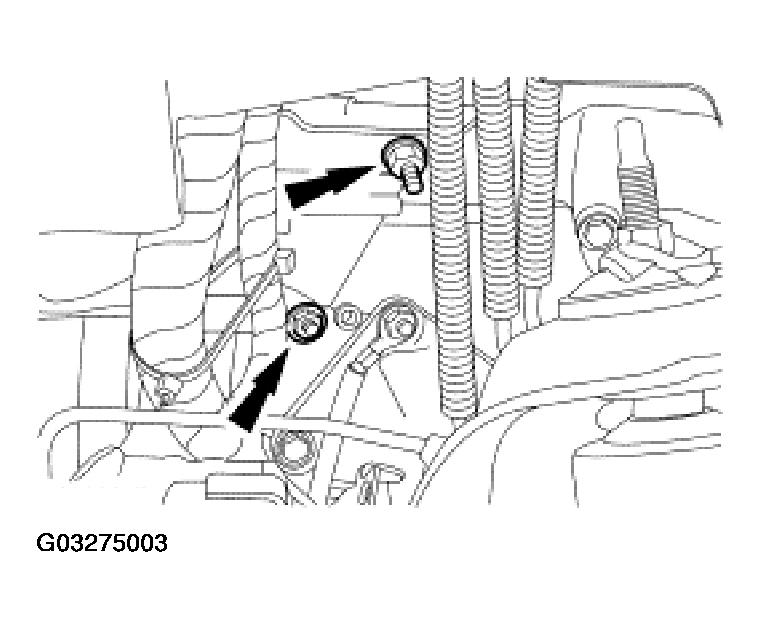

Remove the stud bolts from the A/C compressor mounting bracket.

Fig 4: Removing Stud Bolts From A/C Compressor Mounting Bracket
Courtesy of FORD MOTOR CO.

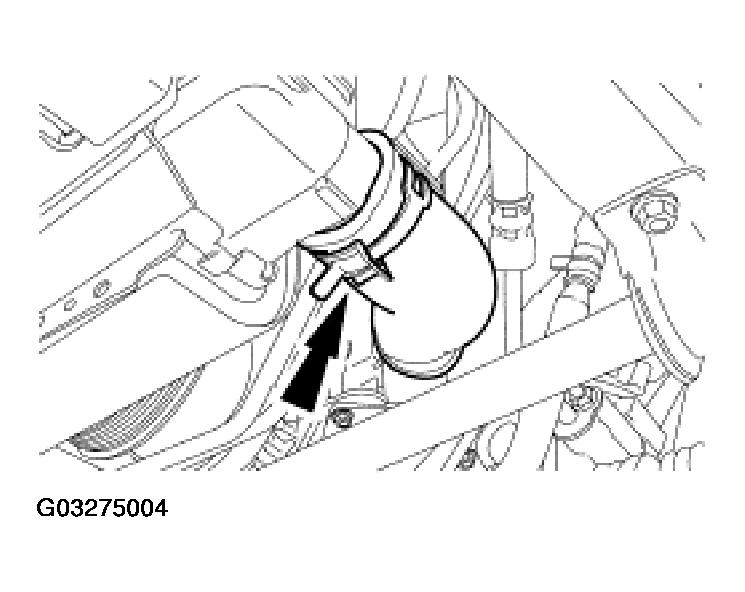

Disconnect the lower radiator hose.

Fig 5: Disconnecting Lower Radiator Hose
Courtesy of FORD MOTOR CO.

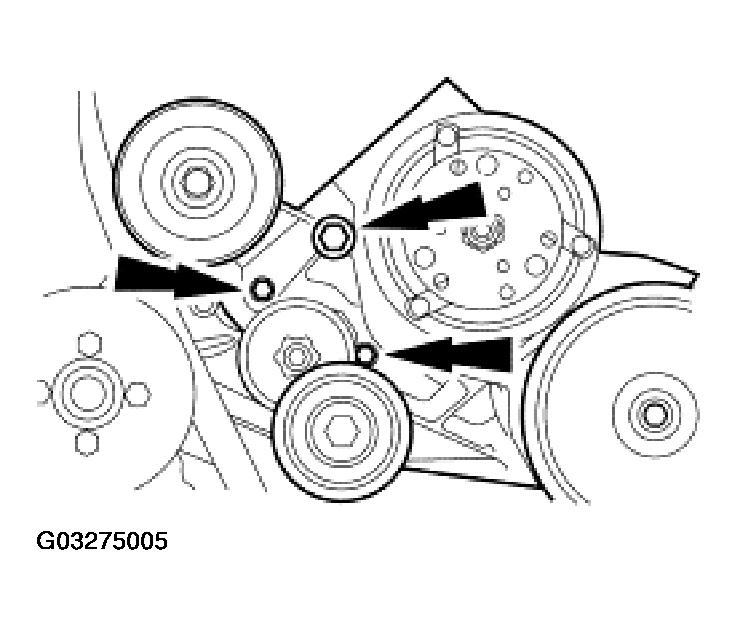

Remove the bolts and position the bracket and compressor aside.

Fig 6: Positioning Bracket And Compressor Aside
Courtesy of FORD MOTOR CO.

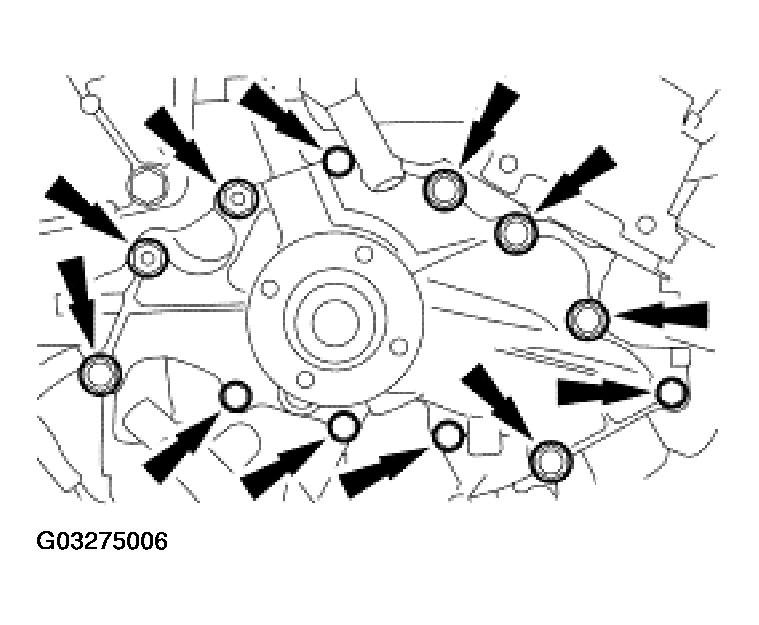

Remove the bolts and remove the water pump.

Fig 7: Removing Water Pump
Courtesy of FORD MOTOR CO.

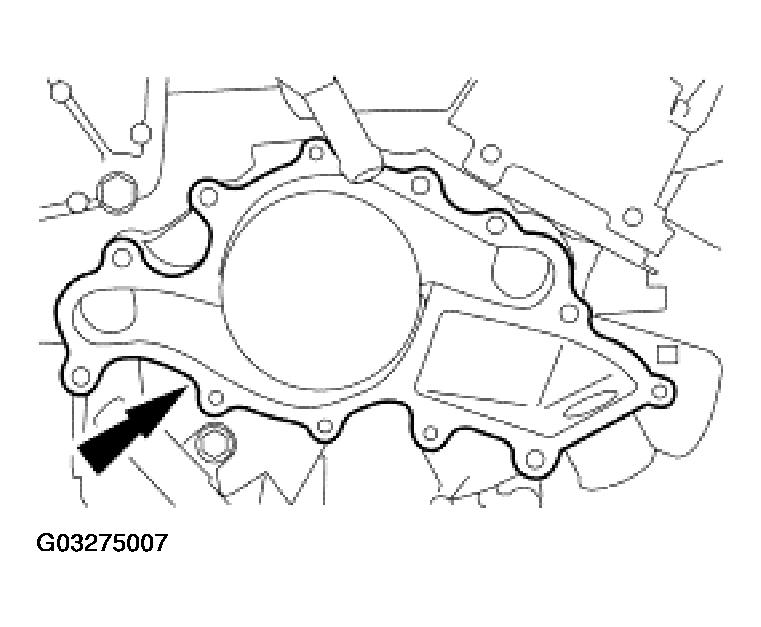

Clean the sealing surfaces.

Fig 8: Cleaning Sealing Surfaces
Courtesy of FORD MOTOR CO.
