Water Pump - 3.0L: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the water pump.

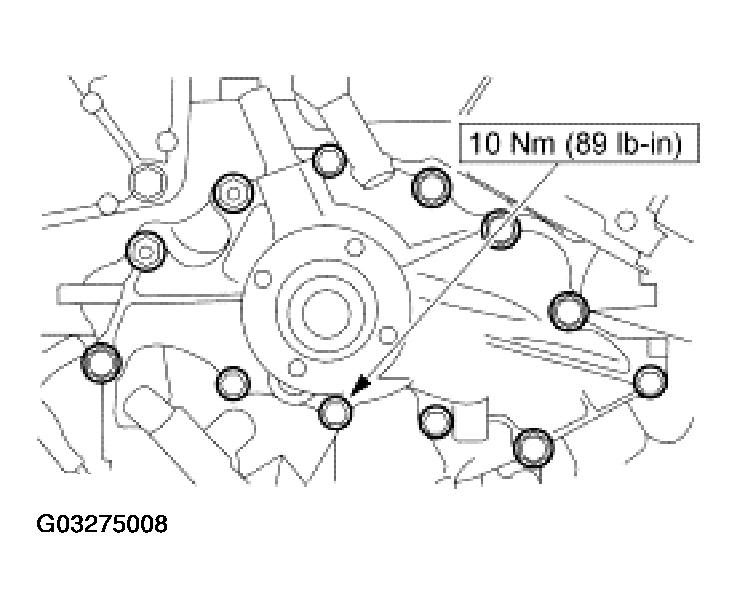

Fig 1: Installing Water Pump
Courtesy of FORD MOTOR CO.
Install the A/C compressor and mounting bracket.

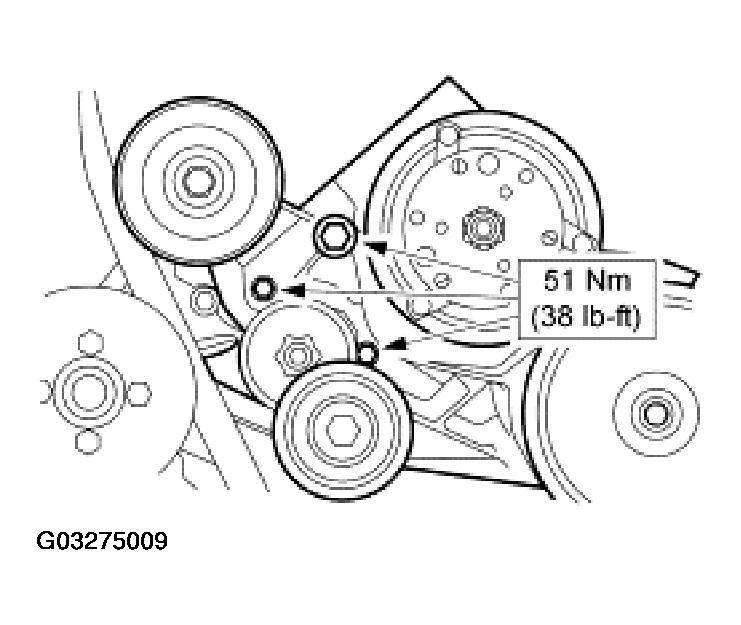

Fig 2: Installing A/C Compressor And Mounting Bracket
Courtesy of FORD MOTOR CO.
Install the A/C compressor mounting bracket stud bolts.

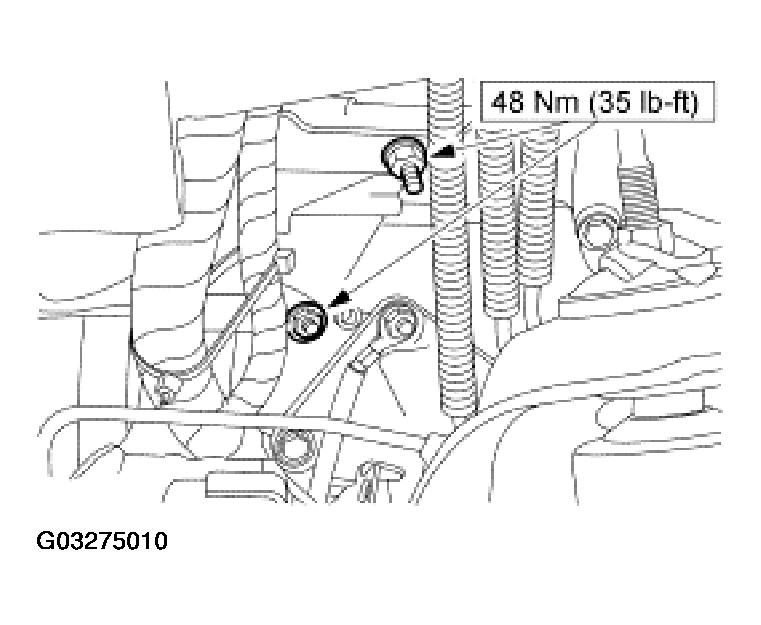

Fig 3: Installing A/C Compressor Mounting Bracket Stud Bolts
Courtesy of FORD MOTOR CO.
Position the wiring harness bracket and the fuel tube bracket and install the nuts.

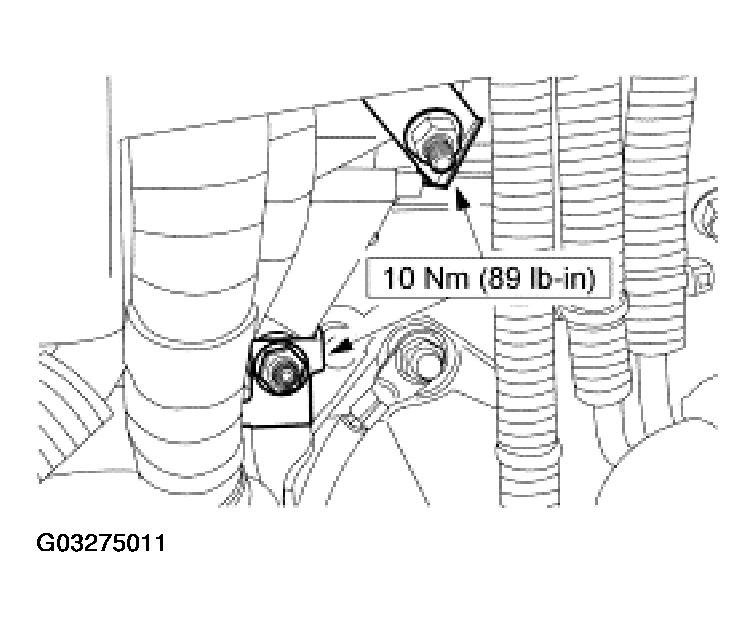

Fig 4: Positioning Wiring Harness Bracket And Fuel Tube Bracket
Courtesy of FORD MOTOR CO.
Install the water pump pulley.

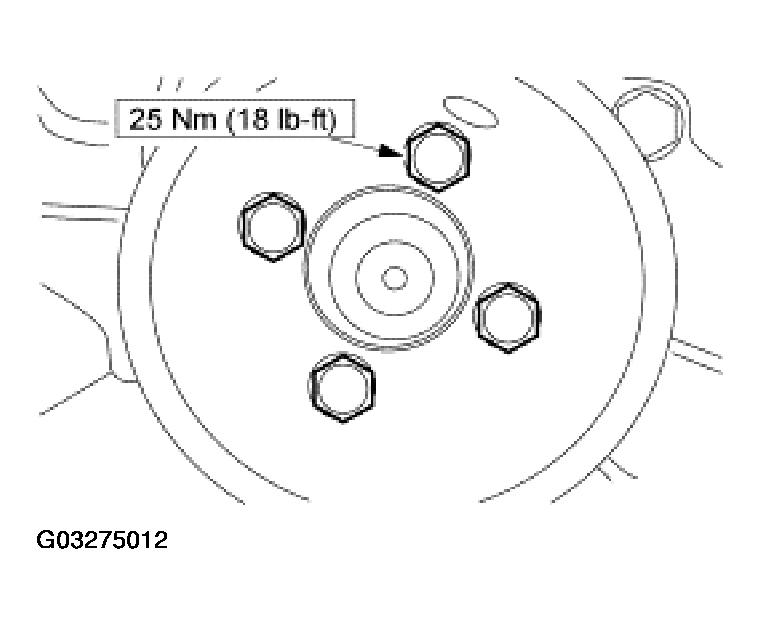

Fig 5: Installing Water Pump Pulley
Courtesy of FORD MOTOR CO.
Install the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Connect the heater hose and the wiring harness anchor.

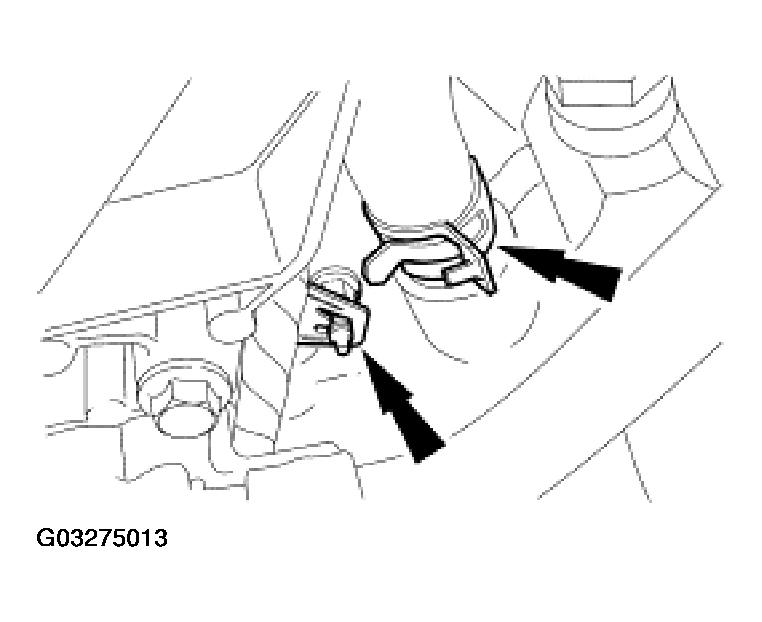

Fig 6: Connecting Heater Hose And Wiring Harness Anchor
Courtesy of FORD MOTOR CO.
Connect the lower radiator hose.

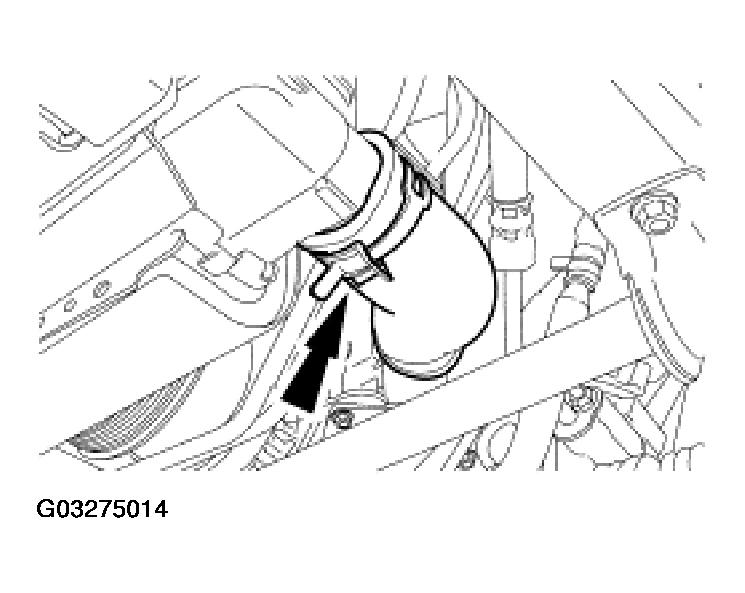

Fig 7: Connecting Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Install the fan blade and fan shroud. For additional information, refer to COOLING FAN SHROUD - 3.0L AND 4.0L .
Install the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING - 3.0L AND 4.0L .
