Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING - 2.3L .
Remove the drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .

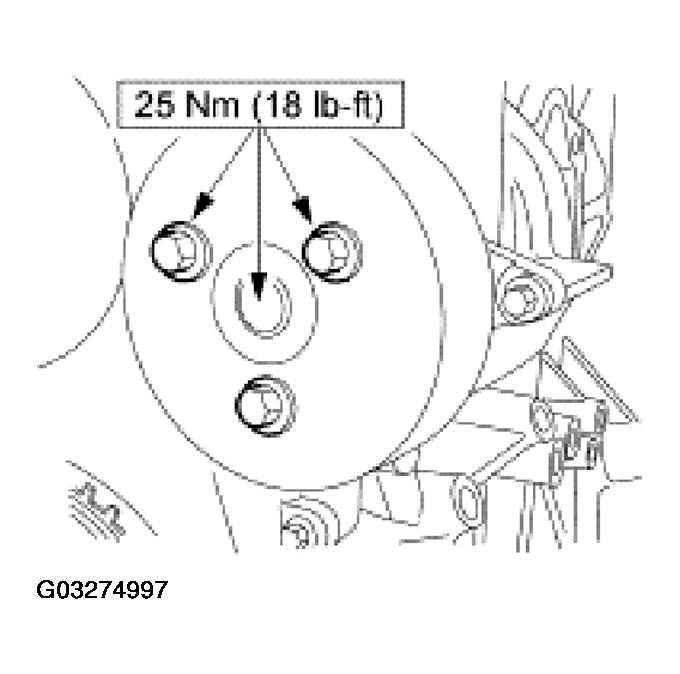

Remove the bolts and the water pump pulley.

Fig 1: Removing Water Pump Pulley
Courtesy of FORD MOTOR CO.

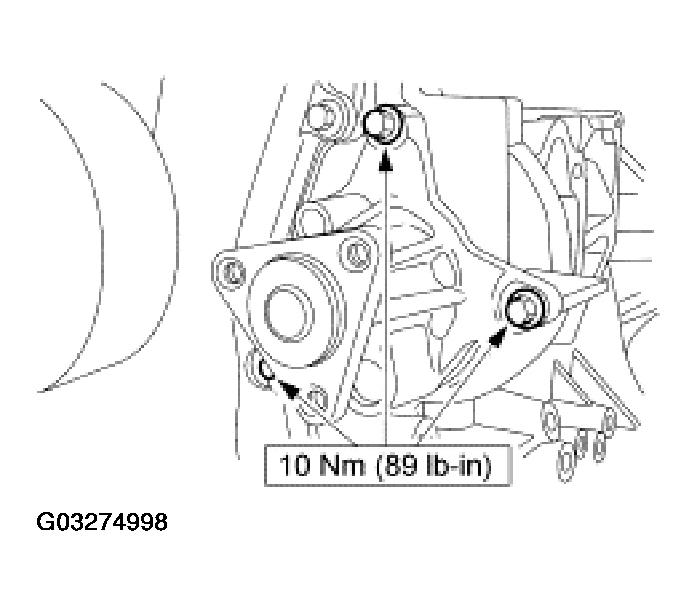

Remove the bolts and the water pump.

Fig 2: Removing Water Pump
Courtesy of FORD MOTOR CO.

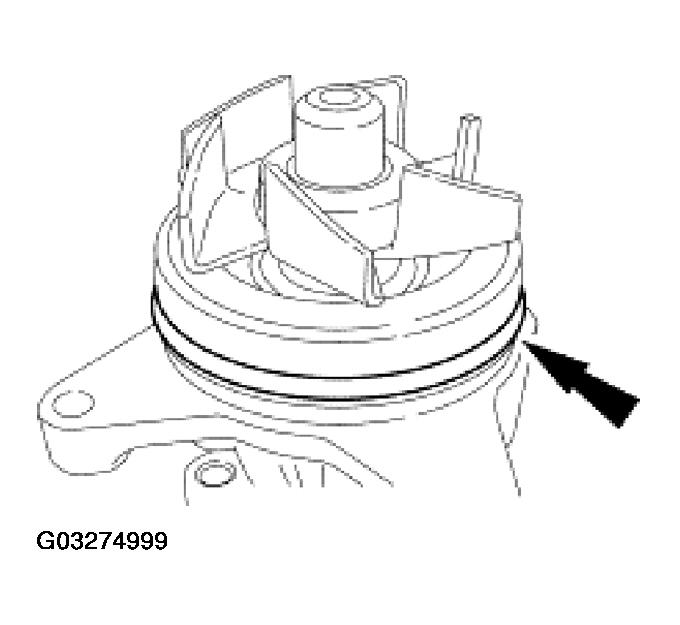

NOTE: Lubricate the water pump O-ring, with clean coolant.

Fig 3: Installing/Lubricating Water Pump O-Ring

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
