Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the cooling system. For additional information, refer to the COOLING SYSTEM DRAINING, FILLING AND BLEEDING - 3.0L AND 4.0L .
Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the upper radiator hose.

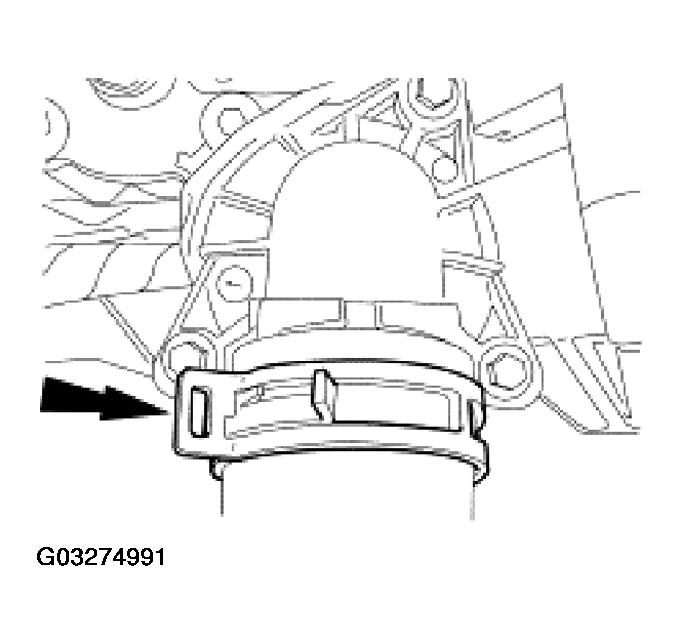

Fig 1: Disconnecting Upper Radiator Hose
Courtesy of FORD MOTOR CO.
Remove the bolts, the thermostat outlet housing and the thermostat.
- Inspect the O-ring seal. Install a new O-ring seal if necessary.

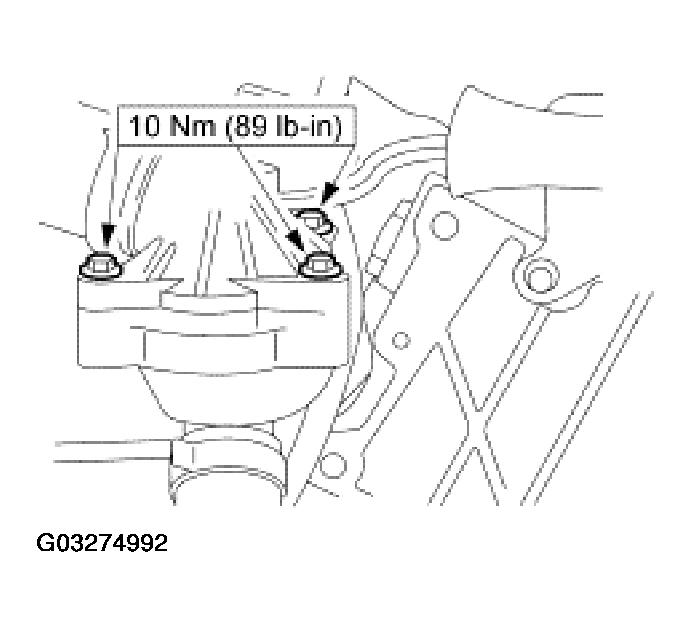

  Fig 2: Removing Thermostat Outlet Housing And Thermostat
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
