Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING - 3.0L AND 4.0L .
Disconnect the radiator overflow hose or radiator vent hose.

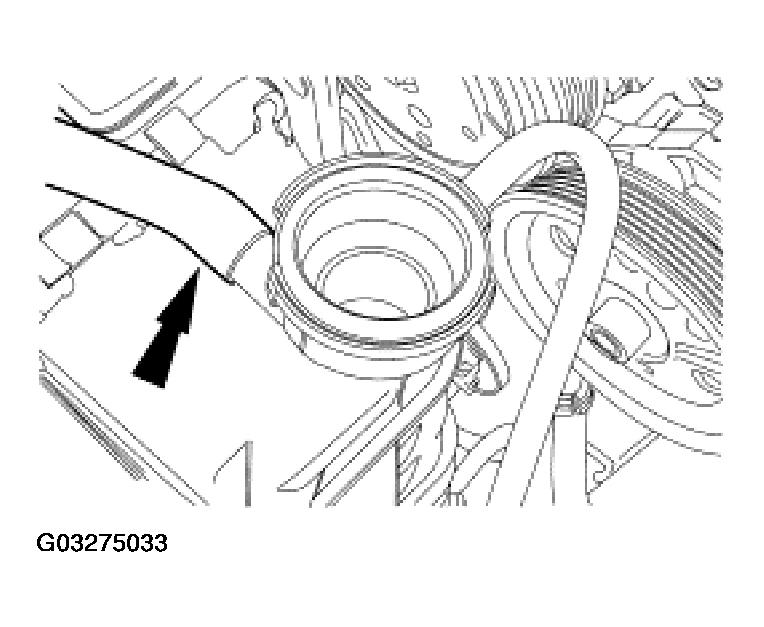

Fig 1: Disconnecting Radiator Overflow Hose Or Radiator Vent Hose
Courtesy of FORD MOTOR CO.
Remove the cooling fan and shroud. For additional information, refer to COOLING FAN SHROUD - 3.0L AND 4.0L .
Disconnect the upper radiator hose from the radiator.

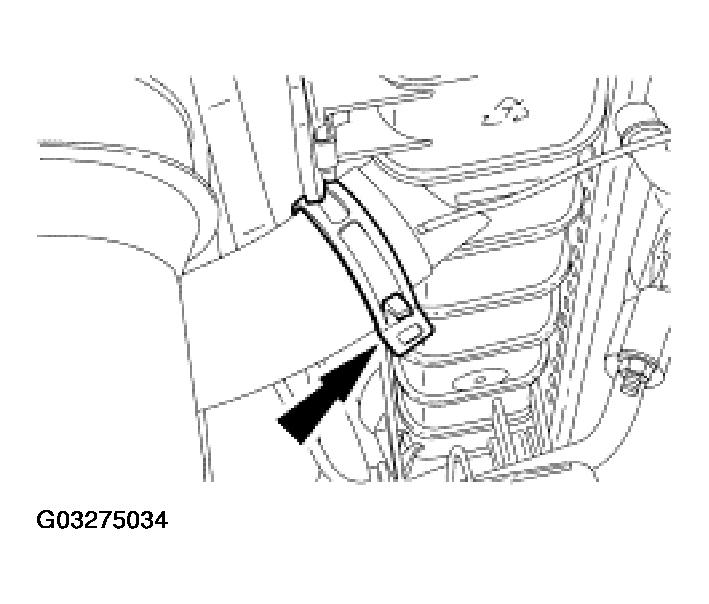

Fig 2: Disconnecting Upper Radiator Hose From Radiator
Courtesy of FORD MOTOR CO.
Disconnect the lower radiator hose from the radiator.

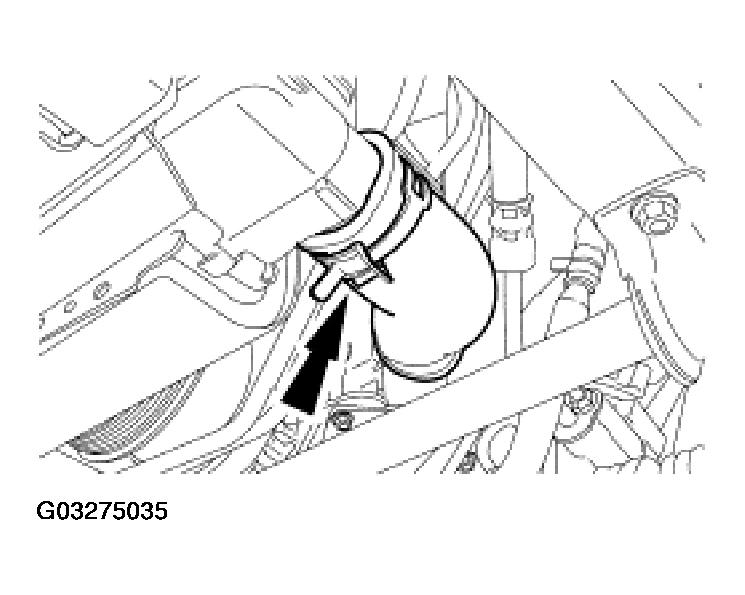

Fig 3: Disconnecting Lower Radiator Hose From Radiator
Courtesy of FORD MOTOR CO.

NOTE: To avoid disturbing the transmission oil cooler fittings, use a backup wrench.

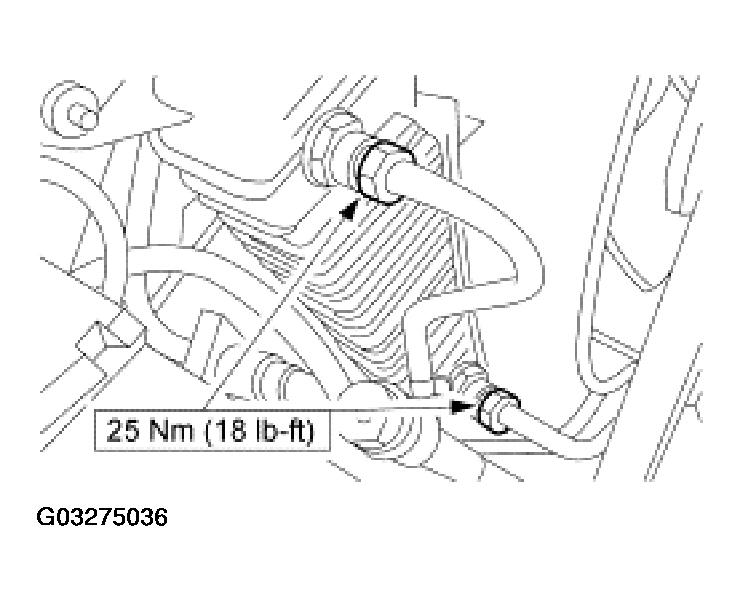

Fig 4: Disconnecting Transmission Cooler Lines

Courtesy of FORD MOTOR CO.

If equipped, disconnect the two transmission cooler lines.
If equipped, disconnect the transmission cooler tubes at the bottom of the radiator.

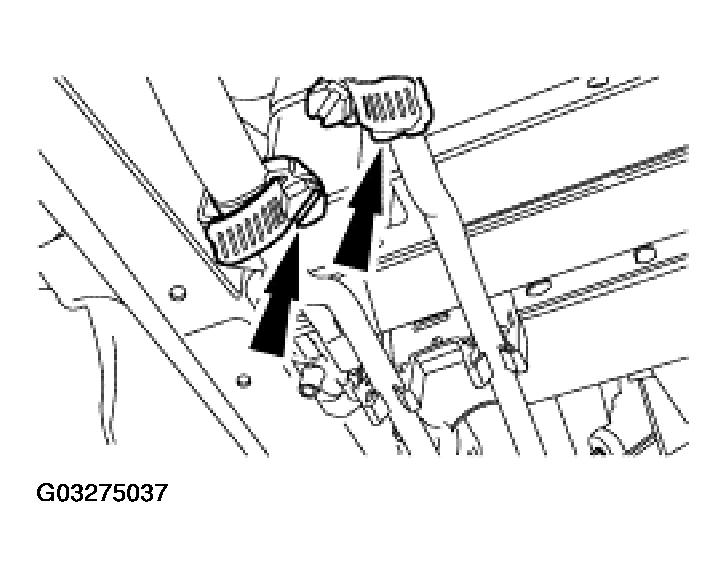

Fig 5: Disconnecting Transmission Cooler Tubes At Bottom Of Radiator
Courtesy of FORD MOTOR CO.
Remove the bolts and tilt the radiator back and lift directly upward.

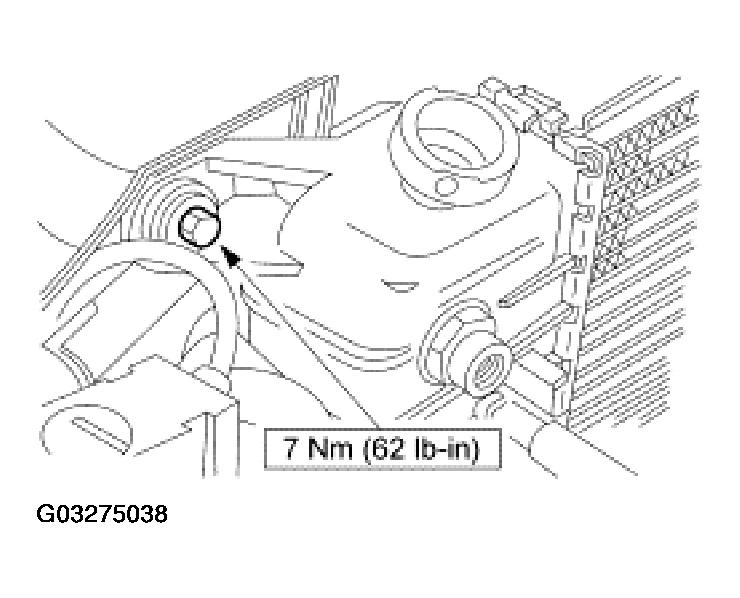

Fig 6: Removing Bolts And Tilt Radiator Back And Lift Directly Upward
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
