Radiator - 2.3L: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

ALL VEHICLES

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING - 2.3L .

VEHICLES EQUIPPED WITH AN AUTOMATIC TRANSMISSION

NOTE: To avoid disturbing the transmission oil cooler fittings, use a back up wrench.

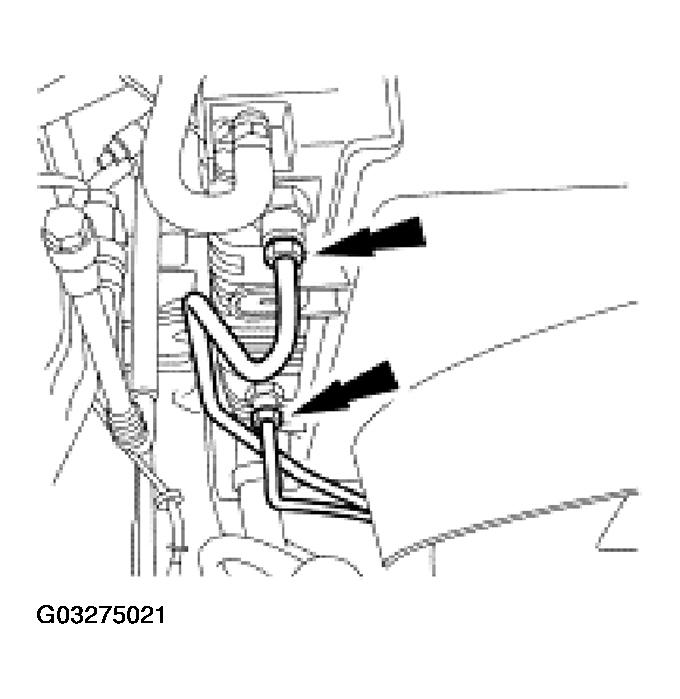

Fig 1: Disconnecting Transmission Cooling Tubes From Radiator

Courtesy of FORD MOTOR CO.

Disconnect the transmission cooling tubes from the radiator.

ALL VEHICLES

Disconnect the coolant overflow hose from the radiator, position the hose away from the radiator.

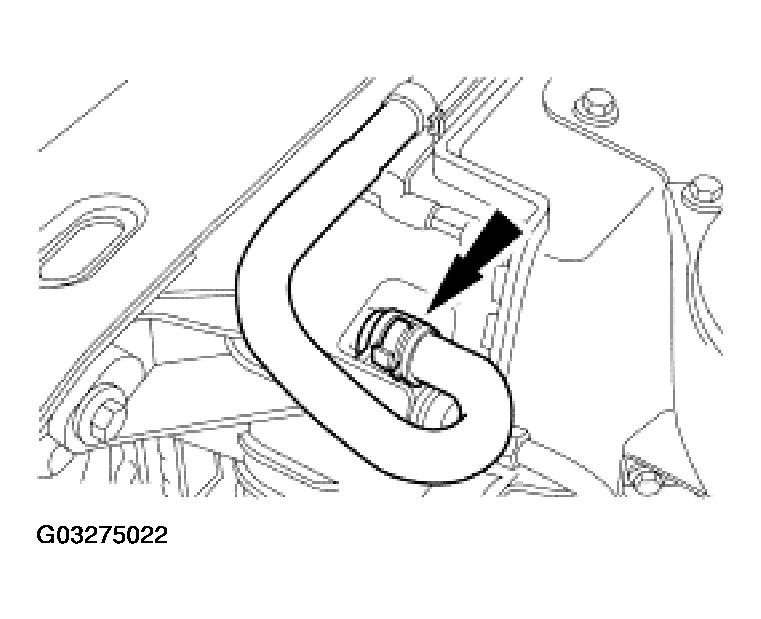

Fig 2: Disconnecting Coolant Overflow Hose From Radiator
Courtesy of FORD MOTOR CO.
Disconnect the upper radiator hose.

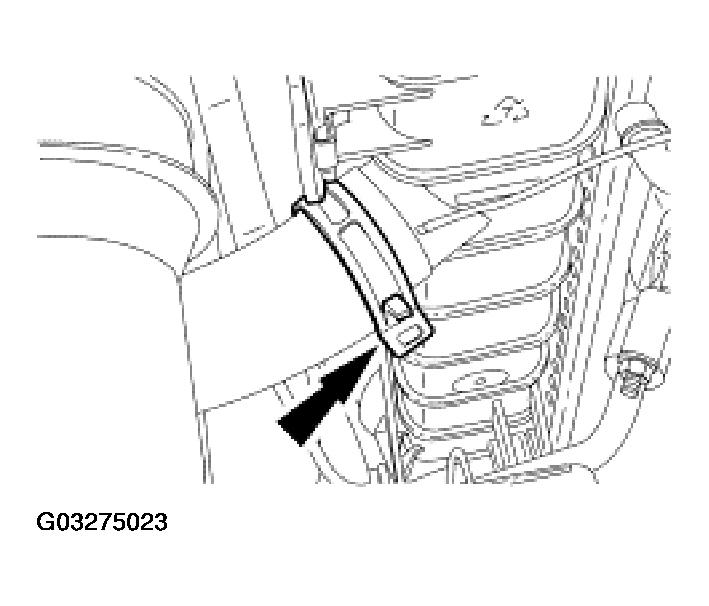

Fig 3: Disconnecting Upper Radiator Hose
Courtesy of FORD MOTOR CO.
Remove the cooling fan and shroud. For additional information, refer to COOLING FAN MOTOR AND SHROUD - 2.3L .
Disconnect the lower radiator hose.

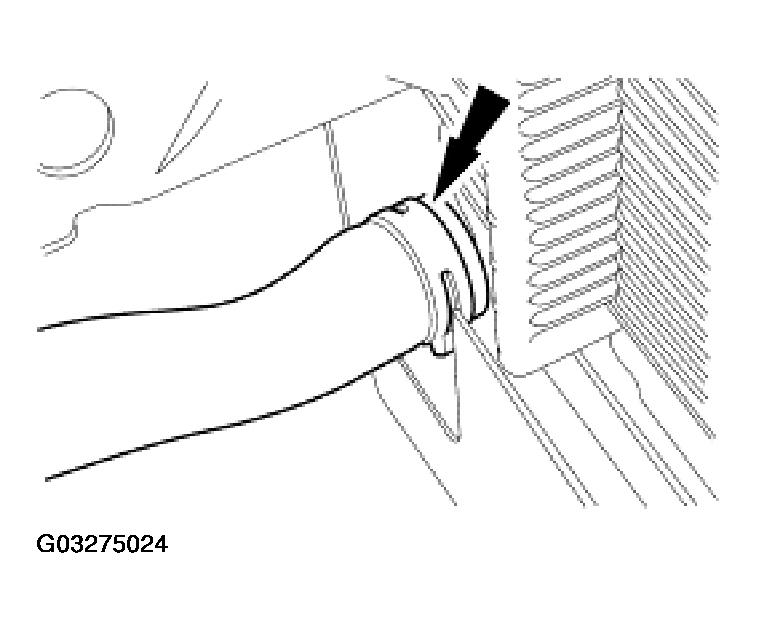

Fig 4: Disconnecting Lower Radiator Hose
Courtesy of FORD MOTOR CO.
Remove the bolts, tilt the radiator back and lift it directly upward.

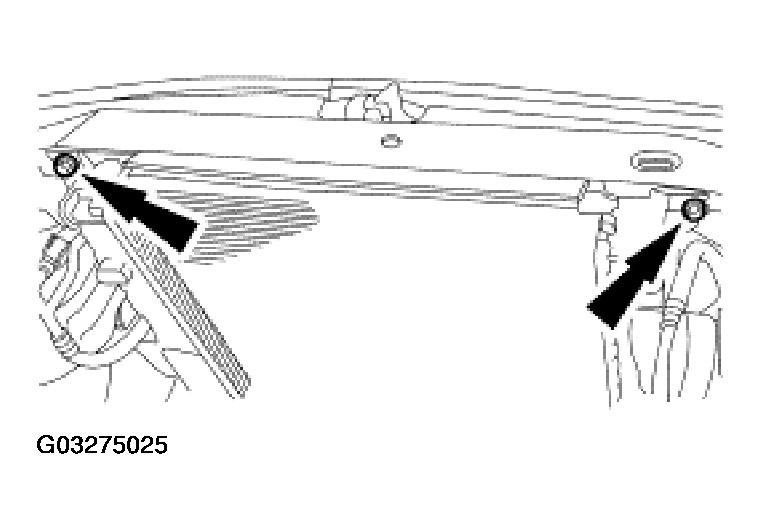

Fig 5: Removing Bolts, Tilt Radiator Back And Lift It Directly Upward
Courtesy of FORD MOTOR CO.
Remove the three push-pins and the plastic cap from the top of the radiator channel

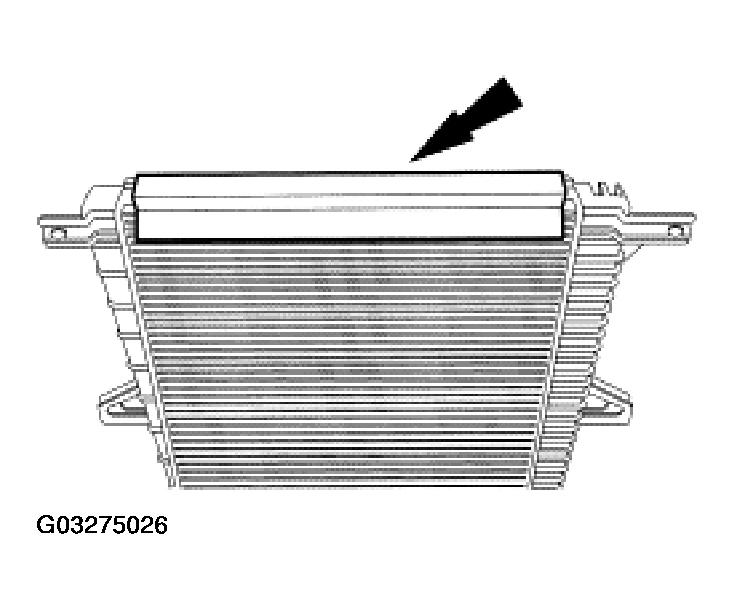

Fig 6: Removing Push-pins And Plastic Cap From Top Of Radiator Channel
Courtesy of FORD MOTOR CO.
