Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fan shroud. For additional information, refer to COOLING FAN SHROUD - 3.0L AND 4.0L .
  2. Remove the bolts.

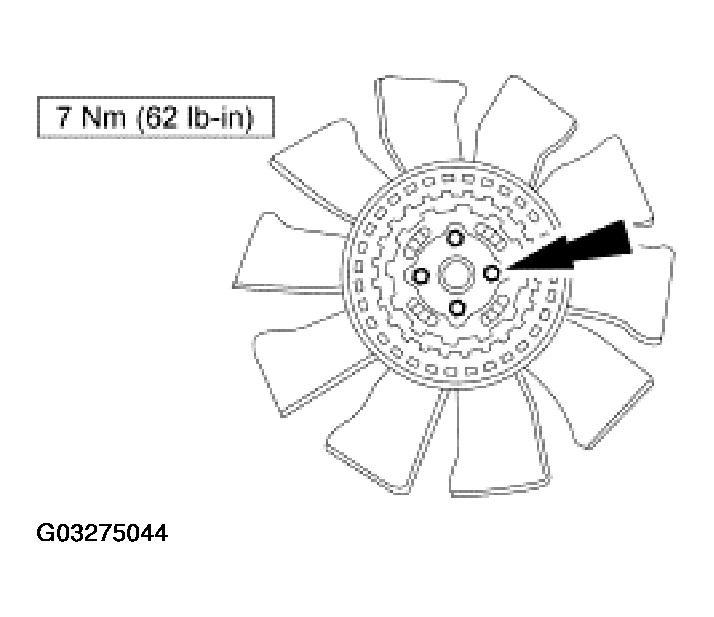

    Fig 1: Removing Fan Blade Bolts
    G03275044Courtesy of FORD MOTOR CO.
  3. Separate the fan blade from the fan clutch.

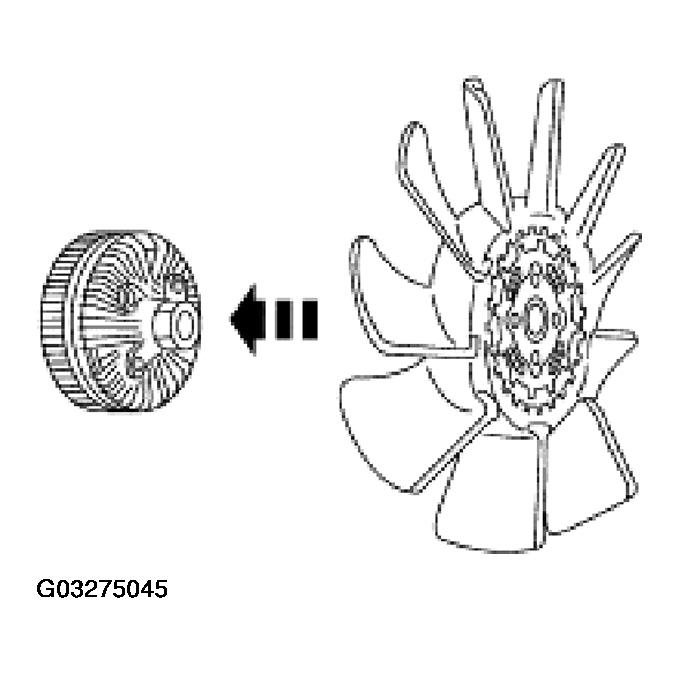

    Fig 2: Separating Fan Blade From Fan Clutch
    G03275045Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
