Fan - Blade and Clutch, 2.3L

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

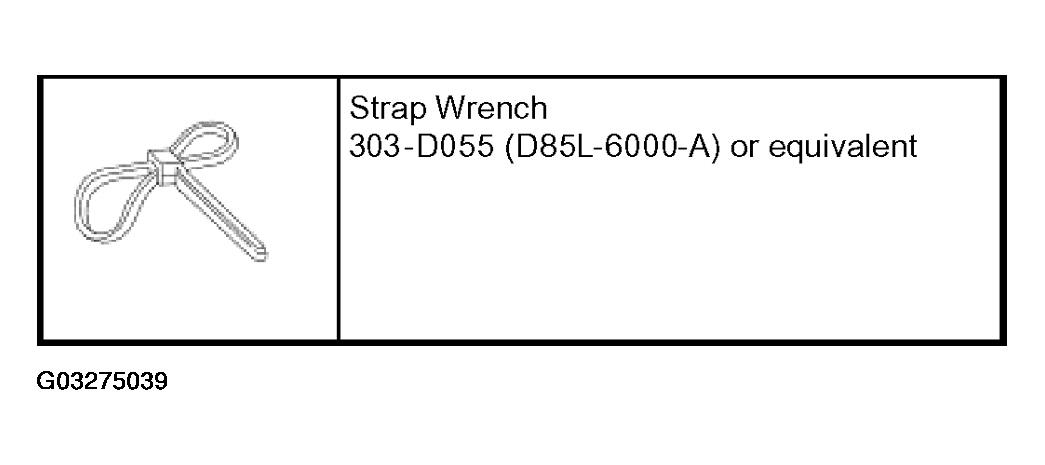

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Using the special tool, loosen the mechanical fan nut.

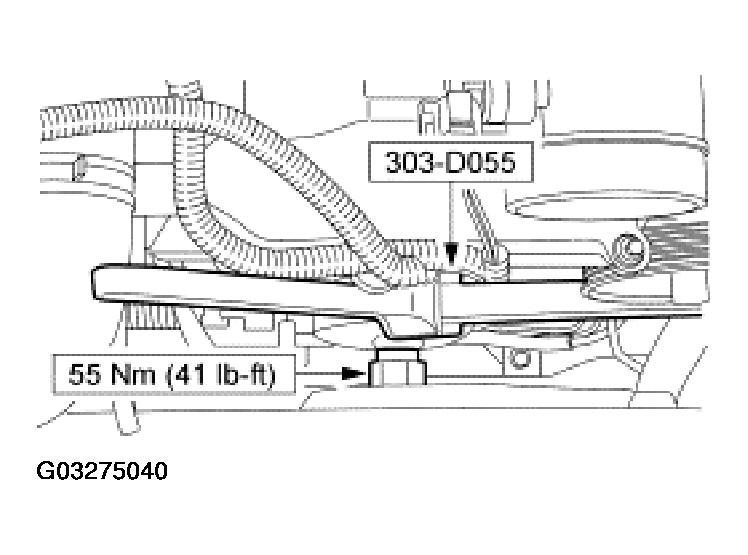

Fig 2: Loosening Mechanical Fan Nut
Courtesy of FORD MOTOR CO.

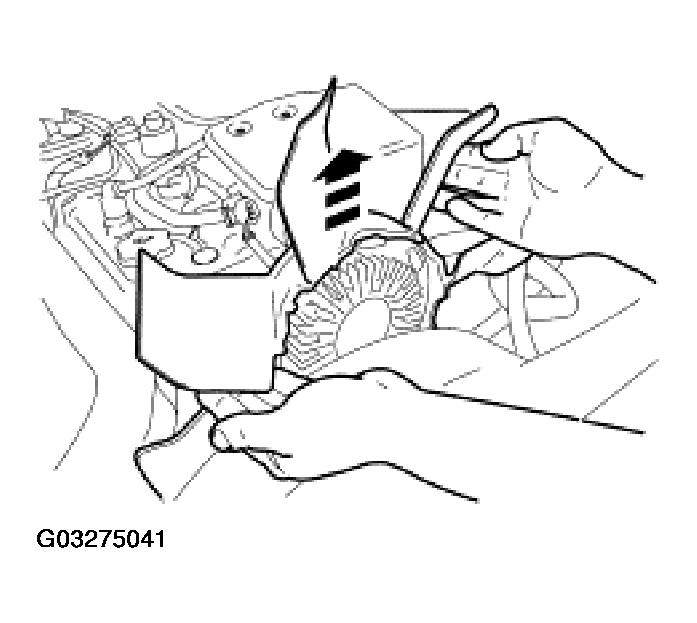

Remove the fan and clutch assembly.

Fig 3: Removing Fan And Clutch Assembly
Courtesy of FORD MOTOR CO.
Remove the bolts.

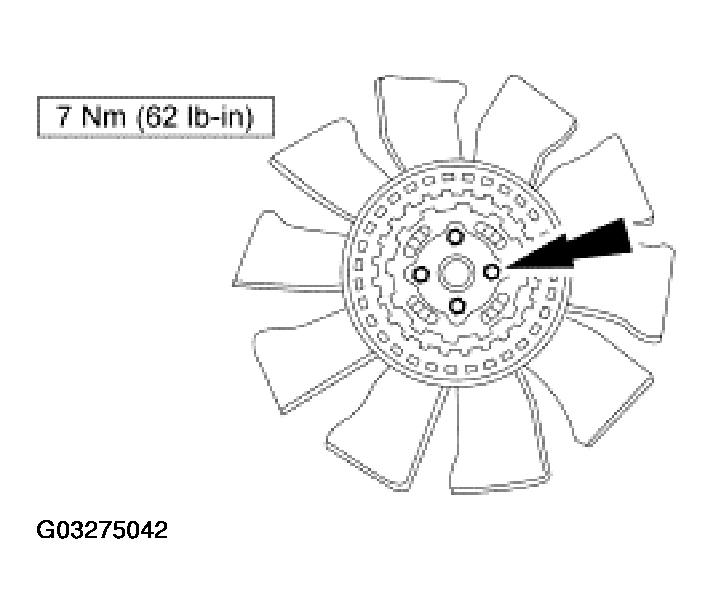

Fig 4: Removing Fan Blade Bolts
Courtesy of FORD MOTOR CO.
Separate the fan blade from the fan clutch.

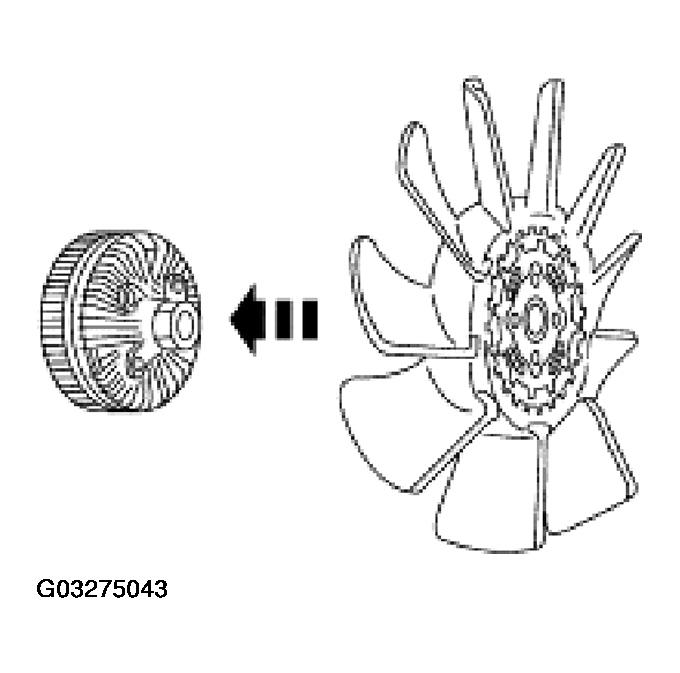

Fig 5: Separating Fan Blade From Fan Clutch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
