Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING - 2.3L .
  3. Disconnect the engine coolant temperature (ECT) sensor electrical connector.

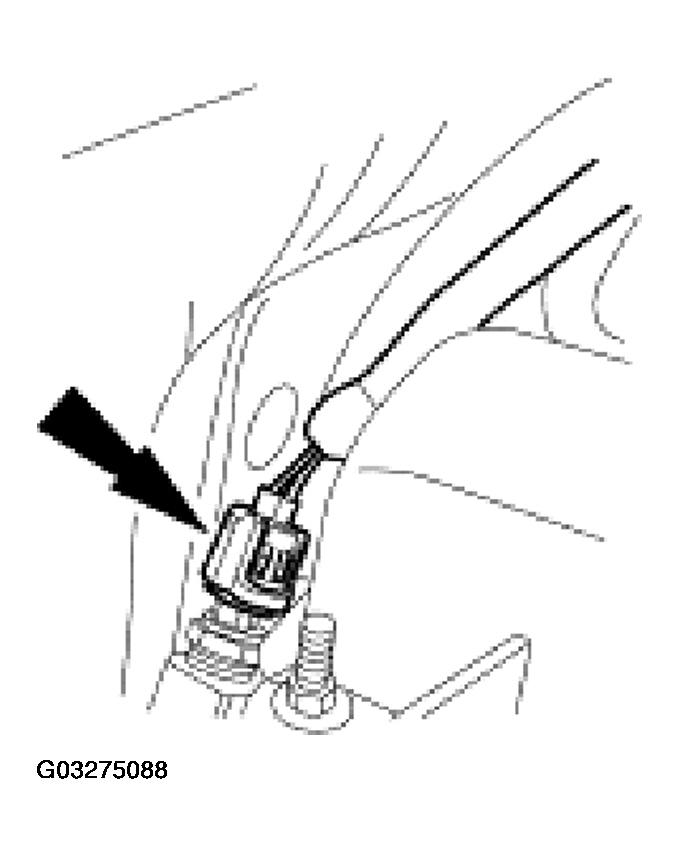

    Fig 1: Disconnecting ECT Sensor Electrical Connector
    G03275088Courtesy of FORD MOTOR CO.
  4. Remove the ECT sensor.

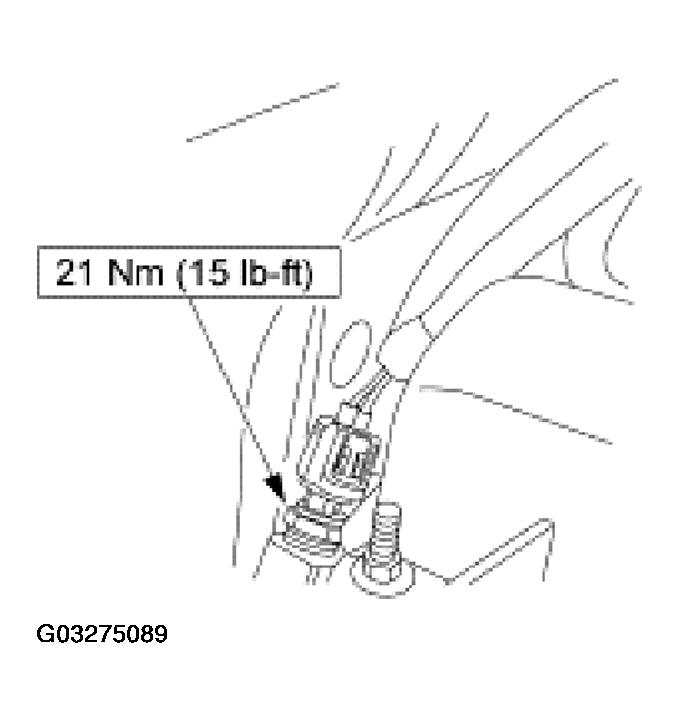

    Fig 2: Removing ECT Sensor
    G03275089Courtesy of FORD MOTOR CO.
    5. NOTE: Coat the threads with pipe sealant with Teflon® before installing.
  5. To install, reverse the removal procedure.
