Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

    NOTE: The fan shroud and electric cooling fan are serviced as an assembly.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the air intake tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Disconnect the electric cooling fan electrical connector.

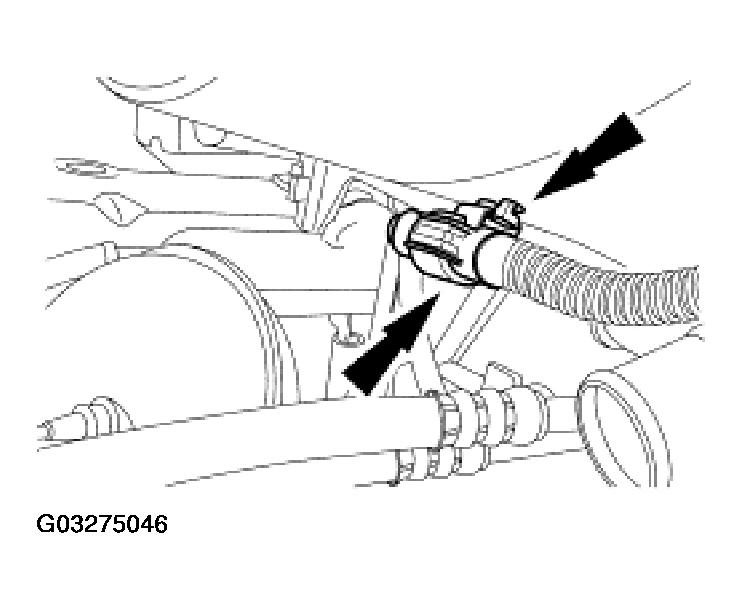

    Fig 1: Disconnecting Electric Cooling Fan Electrical Connector
    G03275046Courtesy of FORD MOTOR CO.
  4. Remove the bolts and position the power steering reservoir out of the way.

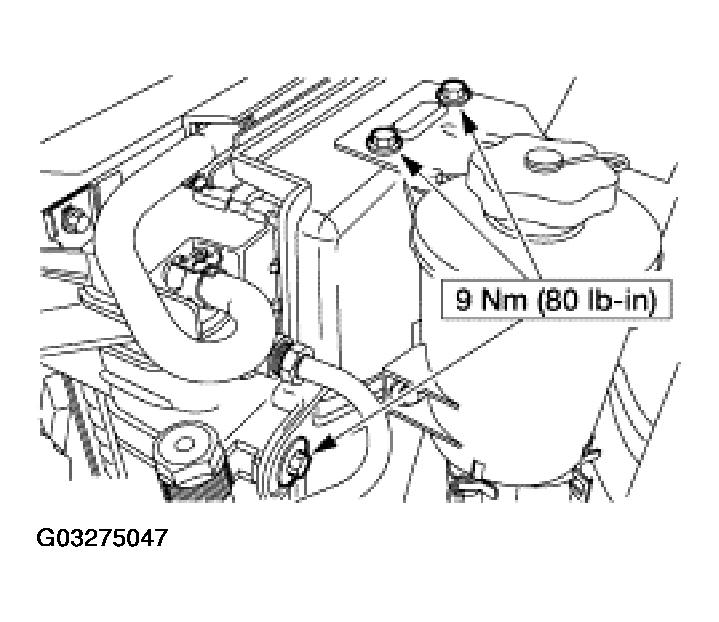

    Fig 2: Positioning Power Steering Reservoir Out Of Way
    G03275047Courtesy of FORD MOTOR CO.

    5. VEHICLES EQUIPPED WITH AN AUTOMATIC TRANSMISSION

  5. Disconnect the transmission cooling tube from the radiator.

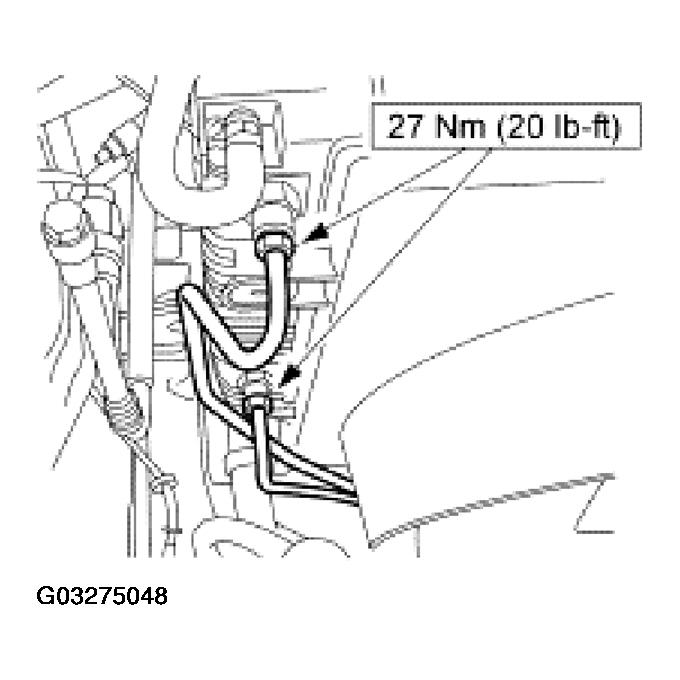

    Fig 3: Disconnecting Transmission Cooling Tube Forms Radiator
    G03275048Courtesy of FORD MOTOR CO.

    6. ALL VEHICLES

  6. Remove the right side cooling fan shroud mounting bolt and lift the shroud and electric cooling fan assembly from the vehicle.

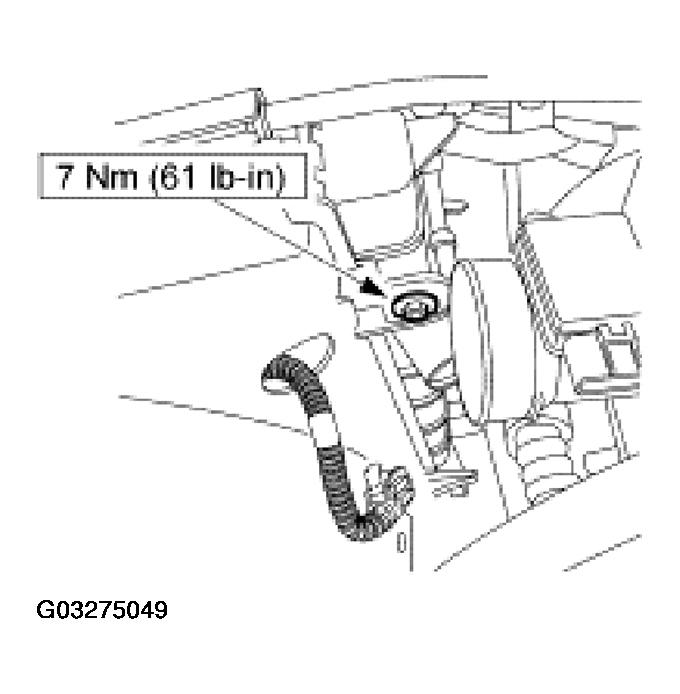

    Fig 4: Removing Cooling Fan Assembly
    G03275049Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.
