Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner box. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
If equipped, remove the bolt and position the speed control actuator aside.

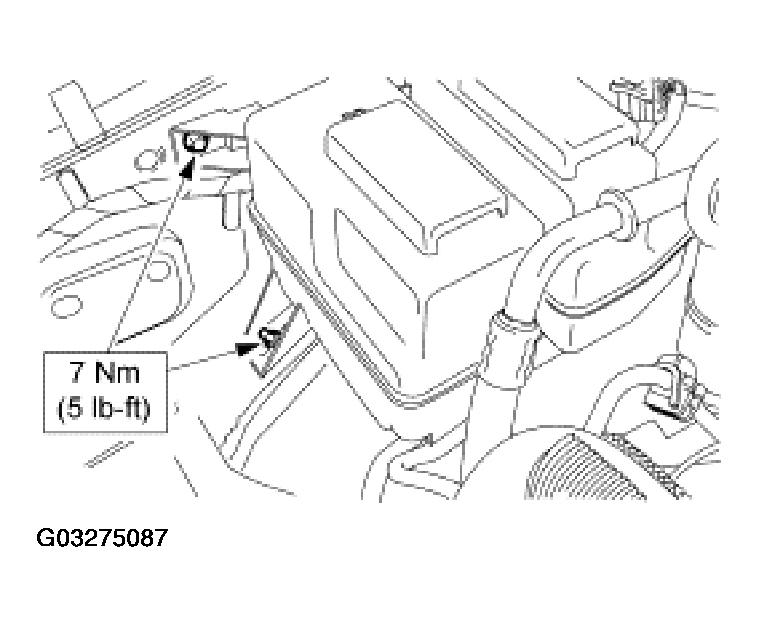

Fig 1: Positioning Speed Control Actuator Aside
Courtesy of FORD MOTOR CO.
Disconnect the washer motor electrical connector.

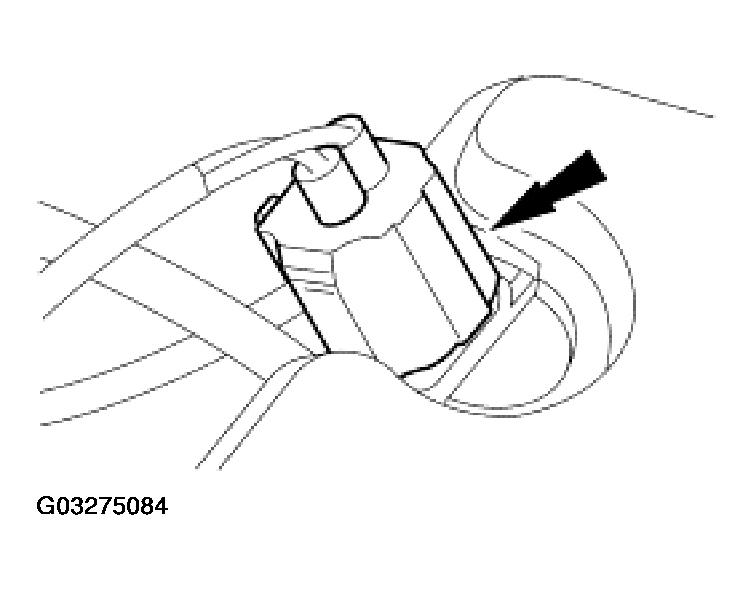

Fig 2: Disconnecting Washer Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the overflow hose at the expansion tank and drain the coolant from the expansion tank.

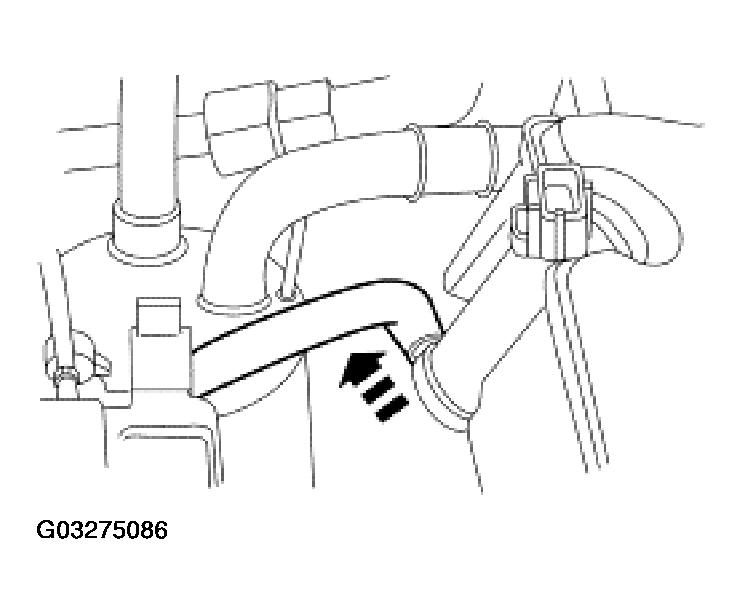

Fig 3: Disconnecting Overflow Hose At Expansion Tank
Courtesy of FORD MOTOR CO.
Disconnect the washer motor hose.

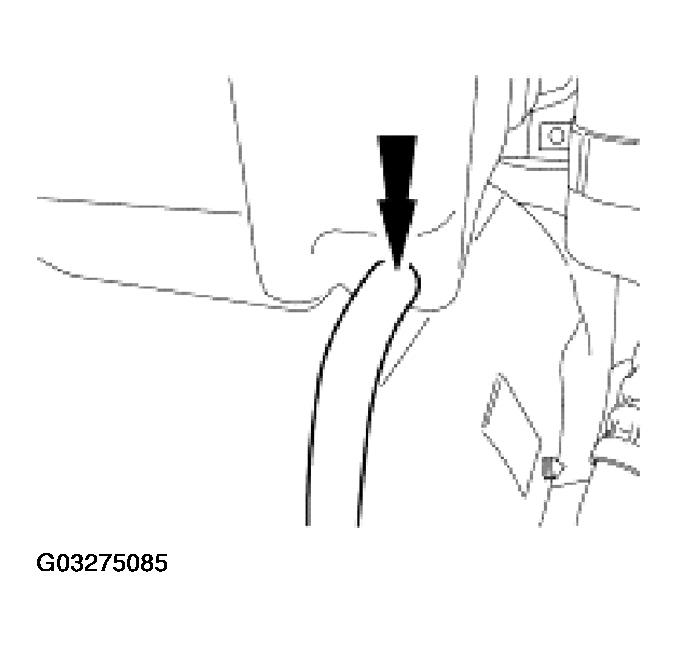

Fig 4: Disconnecting Washer Motor Hose
Courtesy of FORD MOTOR CO.
Remove the two nuts and two bolts and remove bottle.

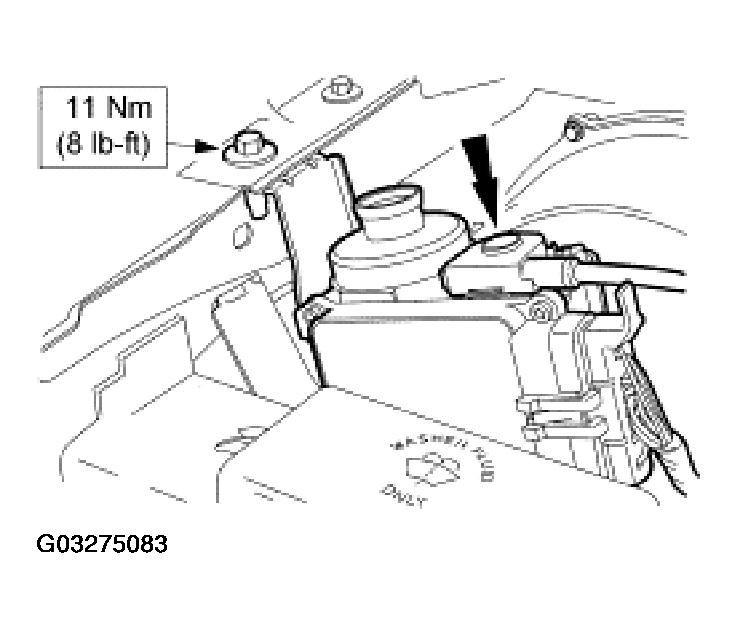

Fig 5: Removing Bottle
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
