Valve - Valve Spring: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the valve spring and the valve spring retainer.

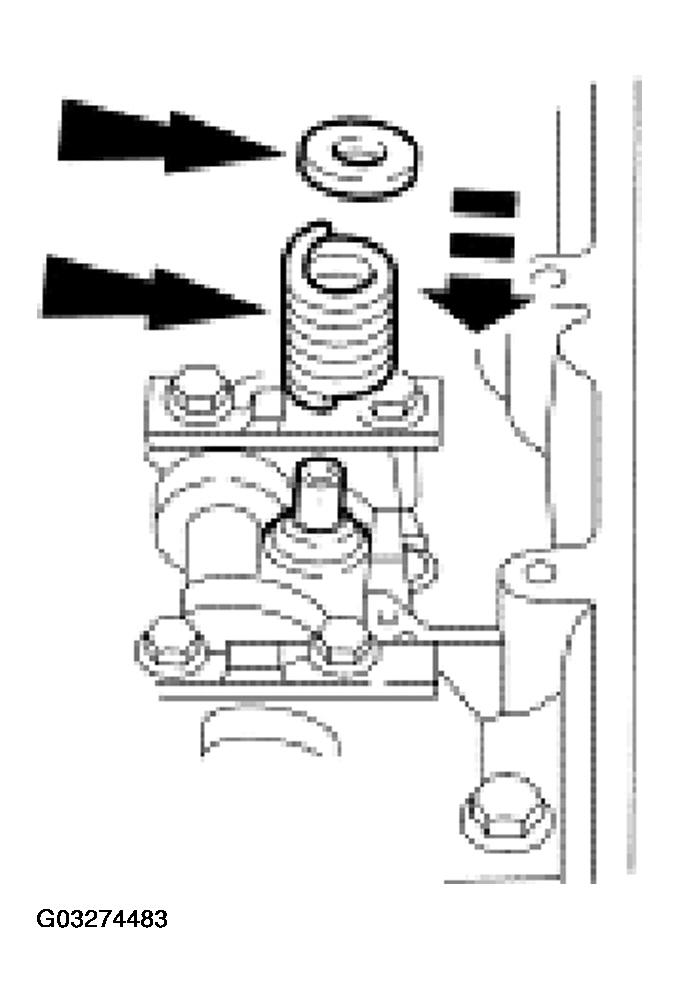

    Fig 1: Positioning Valve Spring And Valve Spring Retainer
    G03274483Courtesy of FORD MOTOR CO.
  2. Install the special tool between the valve spring coil to prevent valve stem seal damage.

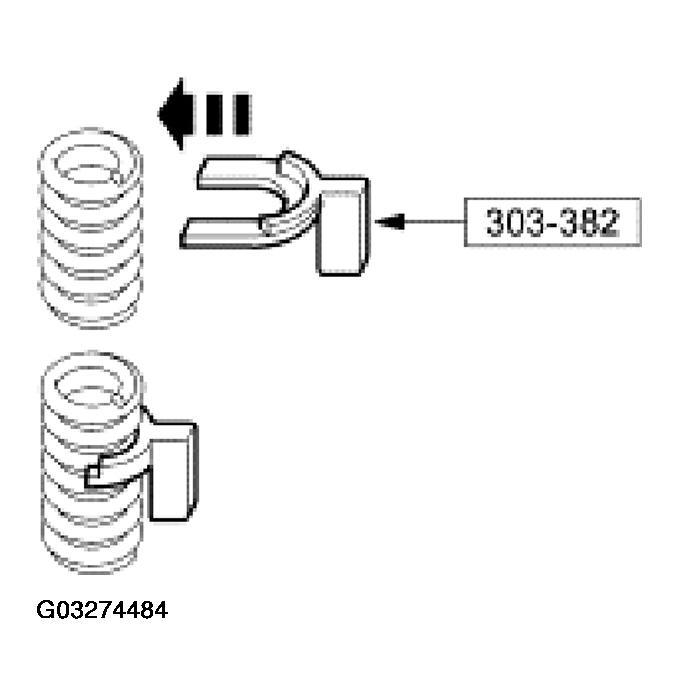

    Fig 2: Installing Special Tool Between Valve Spring Coil To Prevent Valve Stem Seal Damage
    G03274484Courtesy of FORD MOTOR CO.
  3. Using the special tool to compress the valve spring, install the valve spring retainer keys.

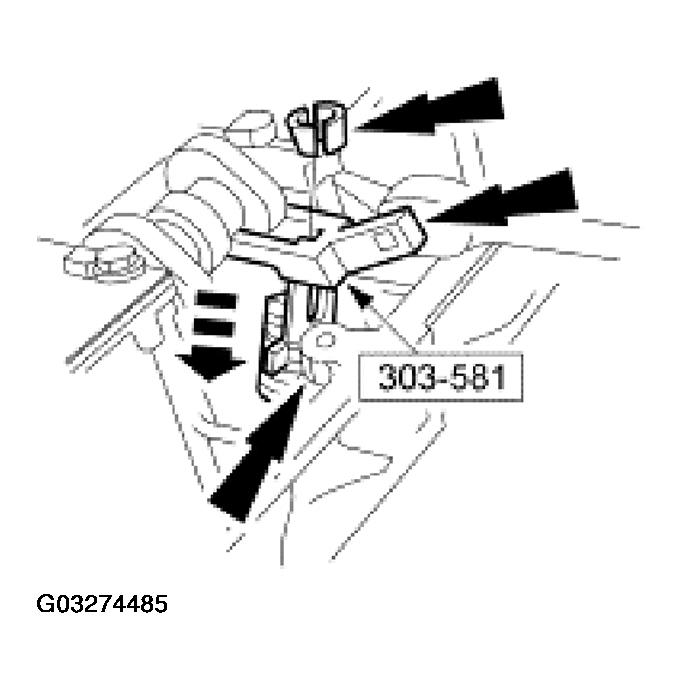

    Fig 3: Installing Valve Spring Retainer Keys
    G03274485Courtesy of FORD MOTOR CO.
  4. Install the camshaft roller followers. For additional information, refer to ROLLER FOLLOWERS .
  5. Install the spark plug.
  6. Repeat all steps for each cylinder being serviced.
