Valve - Valve Seals: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate parts with clean engine oil prior to installing.

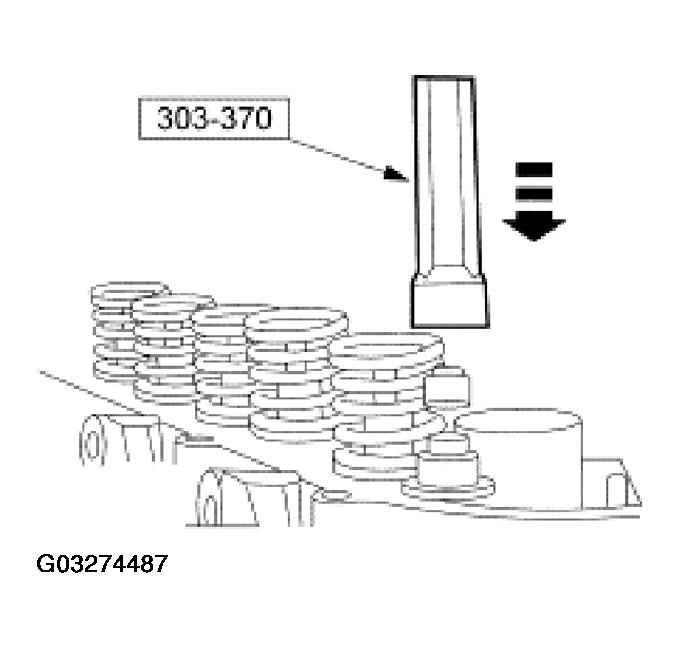

    Fig 1: Installing Valve Stem Seals
    G03274487Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the valve stem seals.
  2. Install the valve springs. For additional information, refer to VALVE - VALVE SPRING .
