Roller Followers: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve covers. For additional information, refer to VALVE COVER LH  or VALVE COVER - RH .
  2. Remove the fuel supply manifold. For additional information, refer to FUEL CHARGING & CONTROLS - 4.0L SOHC .
    3. NOTE: Mark each camshaft roller follower to ensure its original position during reassembly.

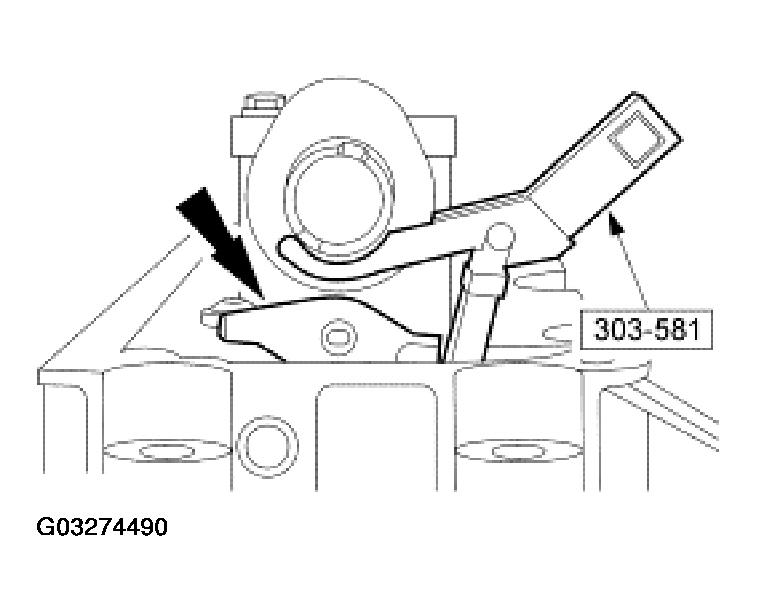

    Fig 1: Removing Camshaft Roller Followers
    G03274490Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the camshaft roller followers.
    4. NOTE: Lubricate the parts with clean engine oil prior to installing.
  4. To install, reverse the removal procedure.
