Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Drain the engine oil.

Fig 1: Draining Engine Oil
Courtesy of FORD MOTOR CO.
Remove the bolts and the oil pan.

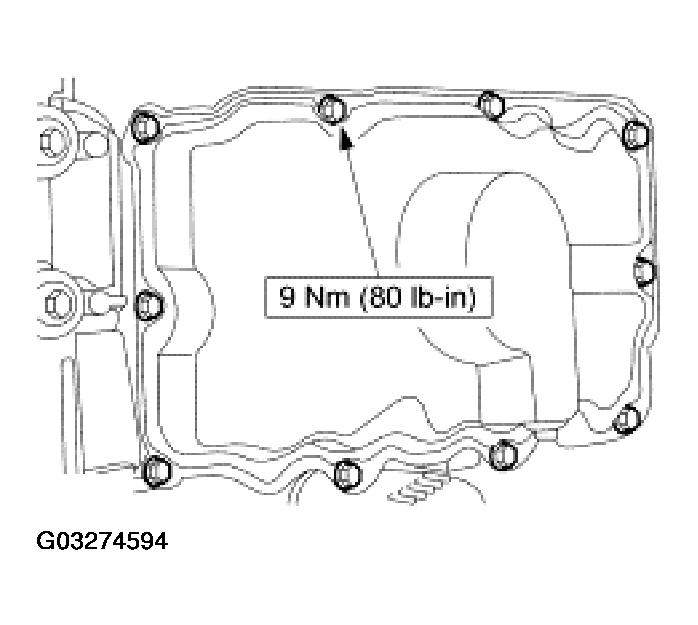

Fig 2: Removing Bolts And Oil Pan
Courtesy of FORD MOTOR CO.

NOTE: All sealing surfaces must be cleaned prior to assembly. Use metal surface cleaner to clean the sealing surfaces.

NOTE: Inspect integral oil pan gasket for cuts or damage that may cause leaks. Install a new gasket if necessary.

NOTE: Fill the engine with clean engine oil.

To install, reverse the removal procedure.
