Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the bolts and the shield.

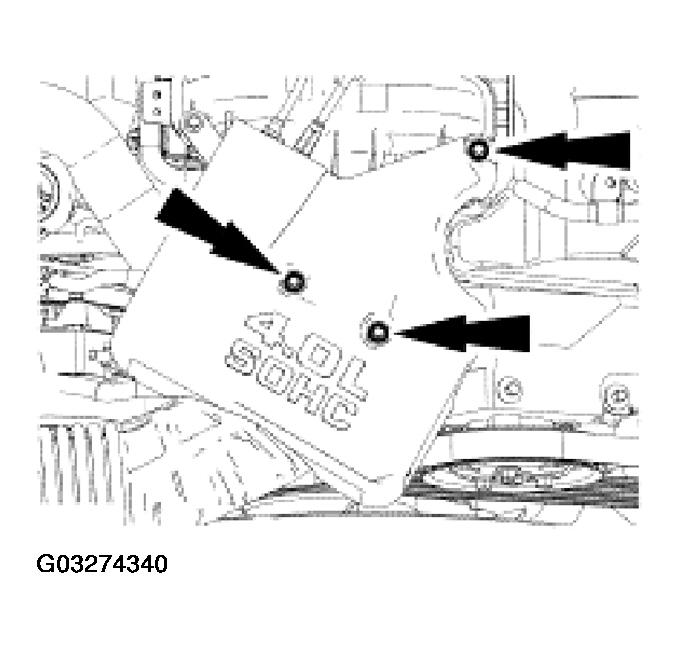

    Fig 1: Removing Shield
    G03274340Courtesy of FORD MOTOR CO.
  3. Remove the air cleaner outlet pipe.
    • Disconnect the tube.
    • Detach the mass airflow (MAF) sensor wiring pin-type retainer.
    • Loosen the clamps and remove the pipe.

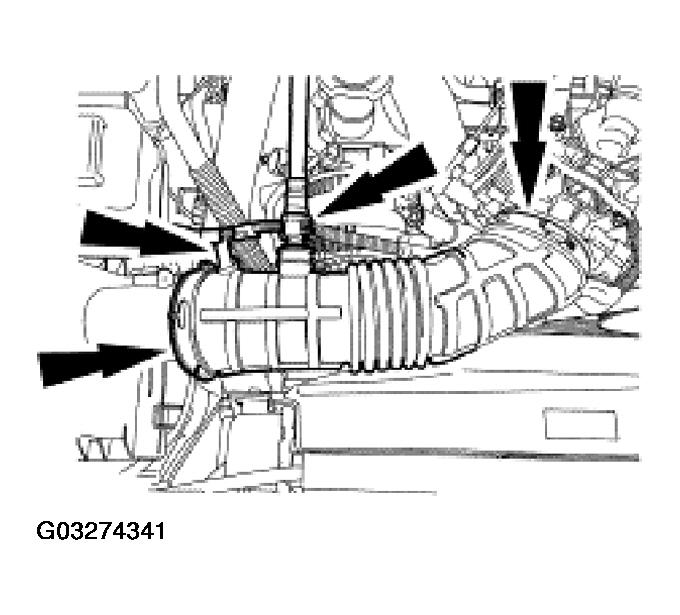

      Fig 2: Removing Air Cleaner Outlet Pipe
      G03274341Courtesy of FORD MOTOR CO.
  4. Disconnect the idle air control (IAC) valve, throttle position (TP) sensor electrical connectors and the TP sensor wiring pin-type retainer.

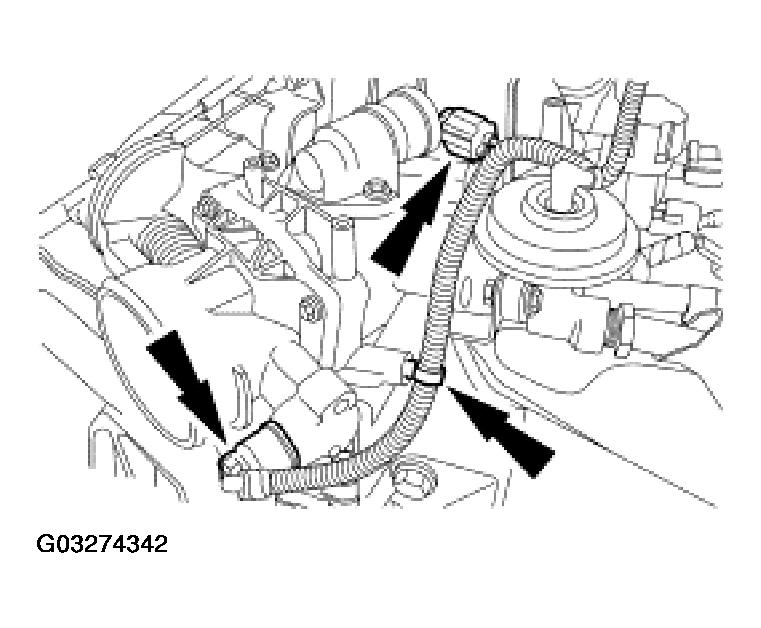

    Fig 3: Disconnecting IAC Valve & TP Sensor
    G03274342Courtesy of FORD MOTOR CO.
  5. Disconnect the MAF sensor wiring pin-type retainer.

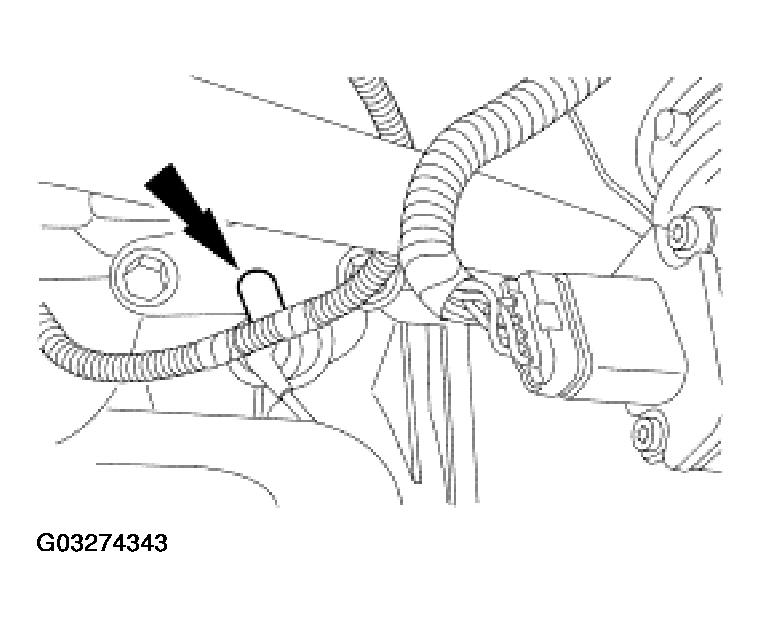

    Fig 4: Disconnecting MAF Sensor Wiring Pin-Type Retainer
    G03274343Courtesy of FORD MOTOR CO.
  6. Disconnect the accelerator and speed control cables.
    1. Detach the accelerator and speed control cables from the throttle body.
    2. Detach the accelerator and speed control cables from the bracket, and position the cables aside.

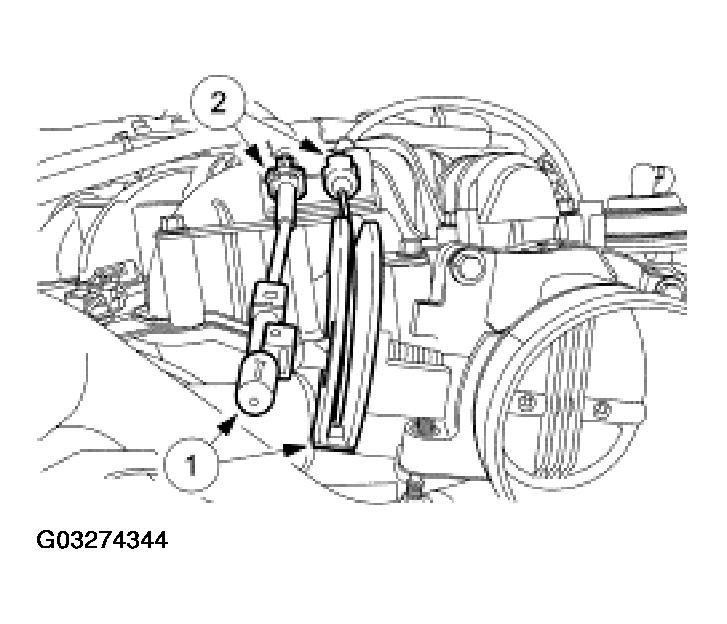

      Fig 5: Disconnecting Accelerator And Speed Control Cables
      G03274344Courtesy of FORD MOTOR CO.

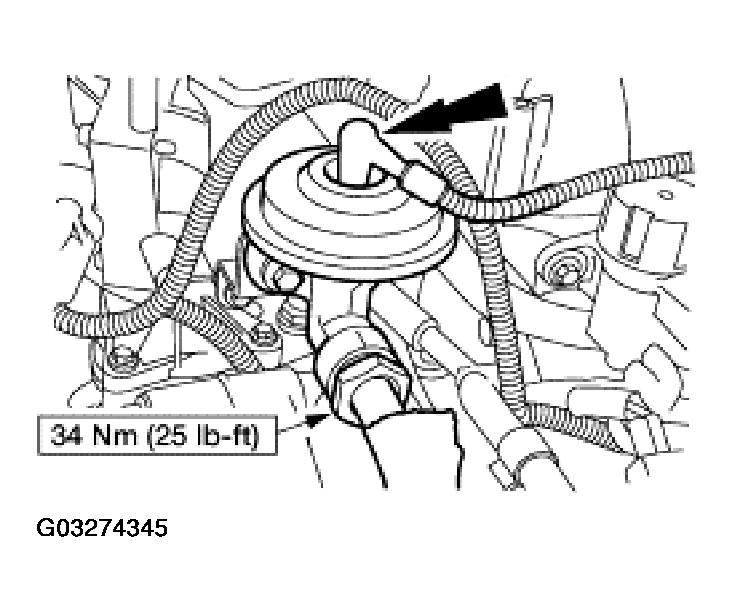

  7. Disconnect the exhaust gas recirculation (EGR) valve vacuum hose and tube fitting.
    Fig 6: Disconnecting EGR Valve Vacuum Hose And Tube Fitting
    G03274345Courtesy of FORD MOTOR CO.
  8. Disconnect the EGR vacuum regulator solenoid valve electrical connector and vacuum hose.

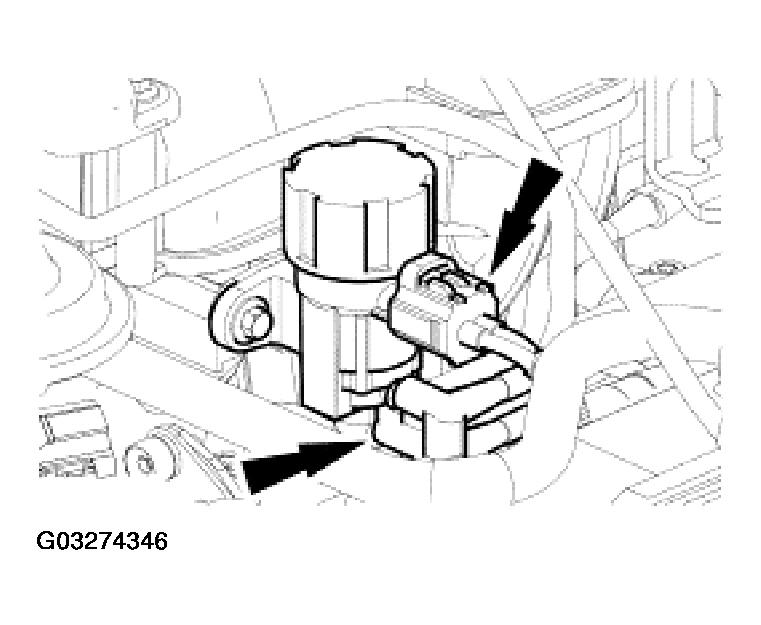

    Fig 7: Disconnecting EGR Vacuum Regulator Solenoid Valve Electrical Connector And Vacuum Hose
    G03274346Courtesy of FORD MOTOR CO.
  9. Disconnect the hose.

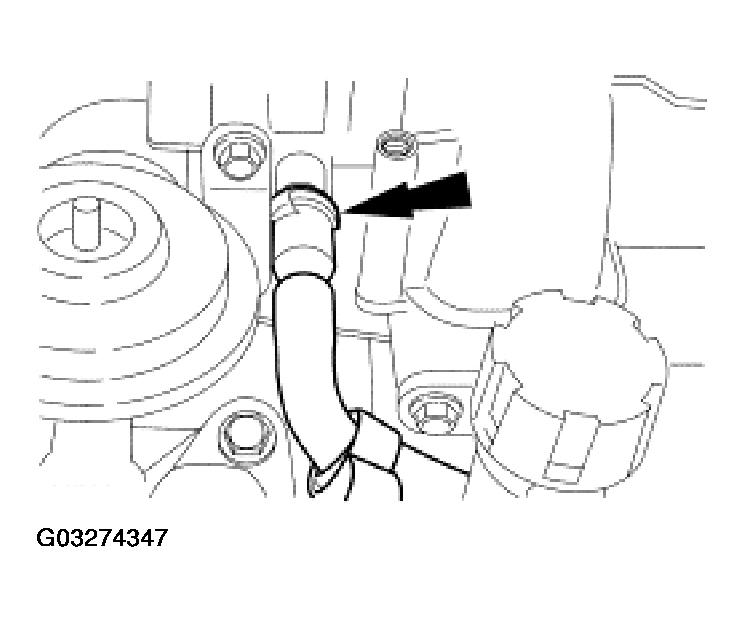

    Fig 8: Disconnecting Hose
    G03274347Courtesy of FORD MOTOR CO.

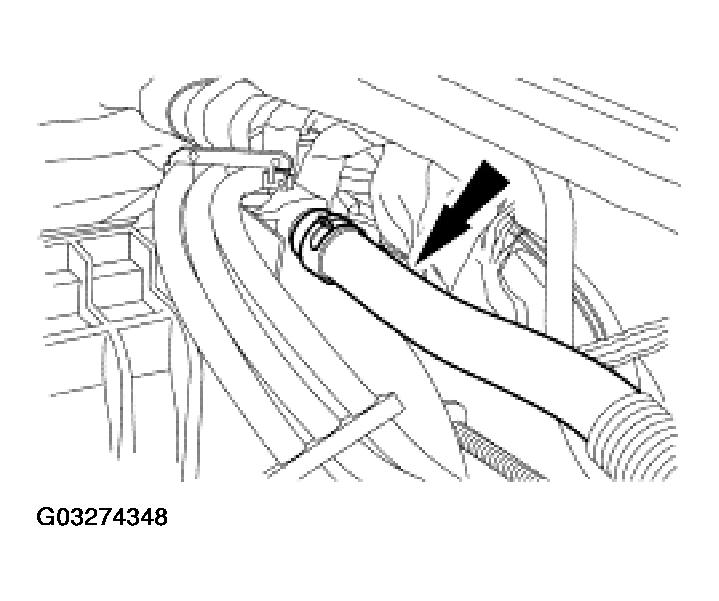

  10. Loosen the clamp and disconnect the brake booster vacuum hose.
    Fig 9: Disconnecting Brake Booster Vacuum Hose
    G03274348Courtesy of FORD MOTOR CO.
  11. CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.
    NOTE: Spark plug wires must be connected to the correct ignition coil terminal. Mark the spark plug wire locations before removing them.

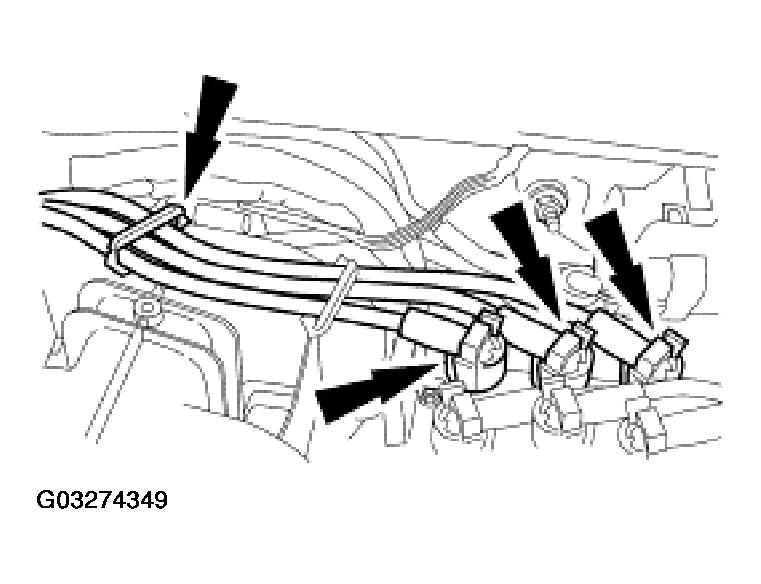

    Fig 10: Disconnecting RH Spark Plug Wires From Coil
    G03274349Courtesy of FORD MOTOR CO.
  12. Disconnect the RH spark plug wires from the coil. Remove the spark plug wire routing clip pin-type retainer and position the wires aside.
  13. Remove the wiring harness bracket retainer, then position the wiring harness aside.

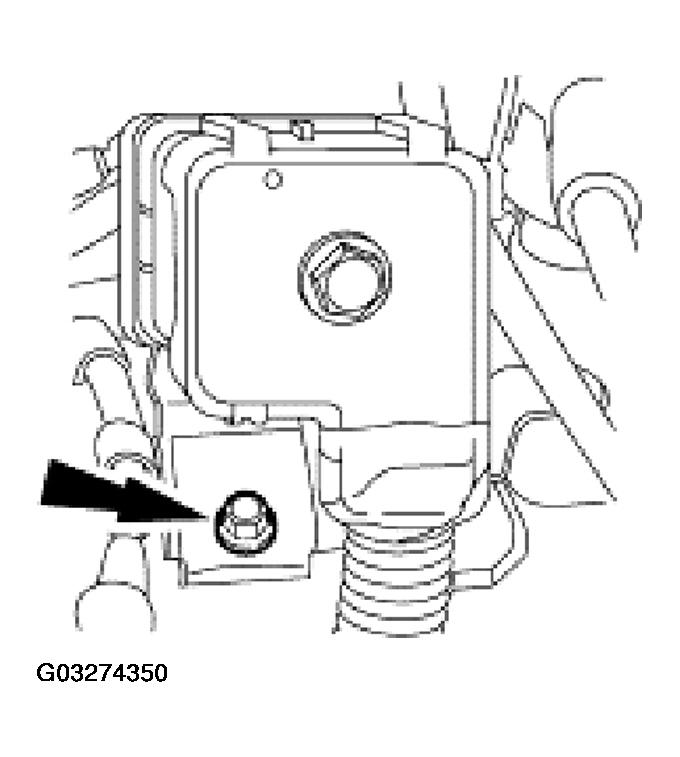

    Fig 11: Removing Wiring Harness Bracket Retainer
    G03274350Courtesy of FORD MOTOR CO.
  14. Remove the accelerator cable routing clip pin-type retainer and the wiring harness pin-type retainer.

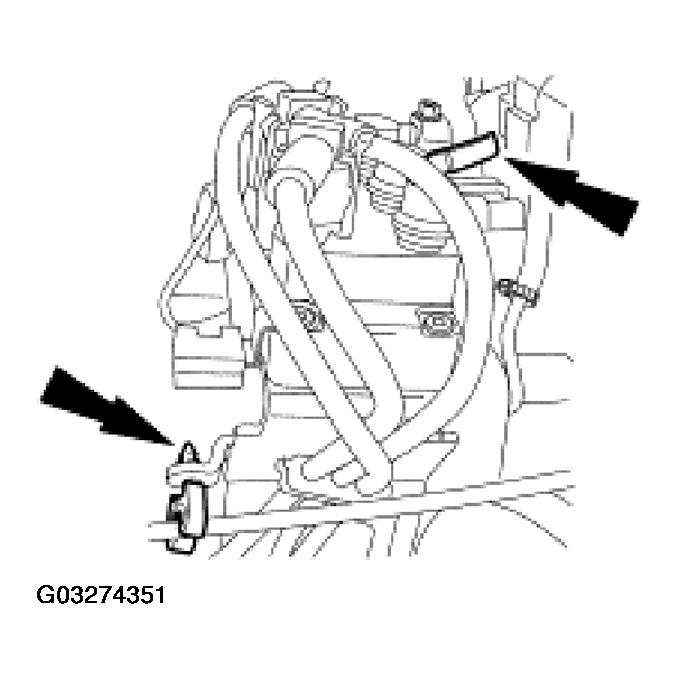

    Fig 12: Removing Accelerator Cable Routing Clip Pin-Type Retainer And Wiring Harness Pin-Type Retainer
    G03274351Courtesy of FORD MOTOR CO.
  15. Remove the bolts.
    Fig 13: Removing Bolts
    G03274352Courtesy of FORD MOTOR CO.

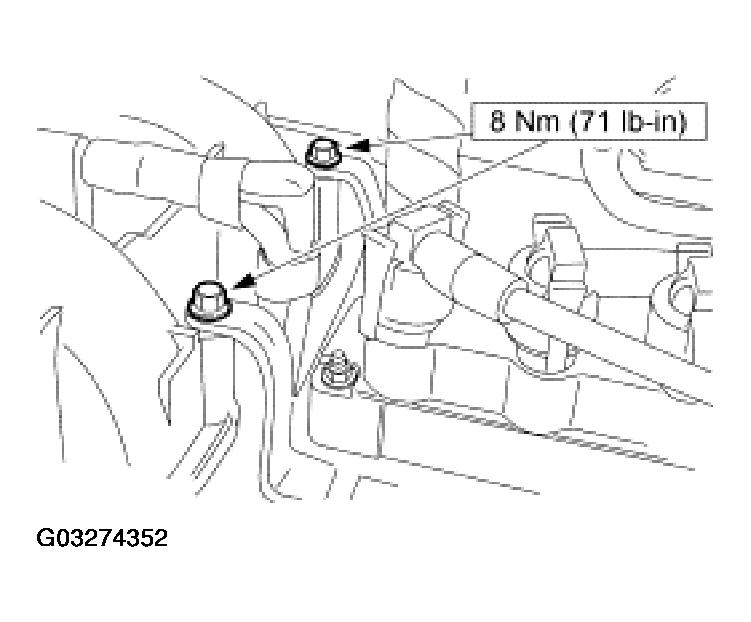

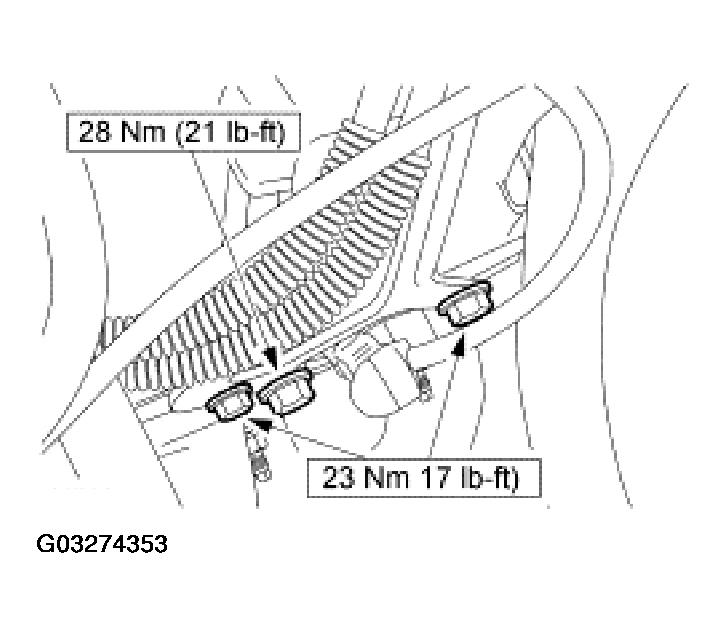

  16. Remove the bolts and position the coil and bracket aside.
    Fig 14: Positioning Coil And Bracket Aside
    G03274353Courtesy of FORD MOTOR CO.

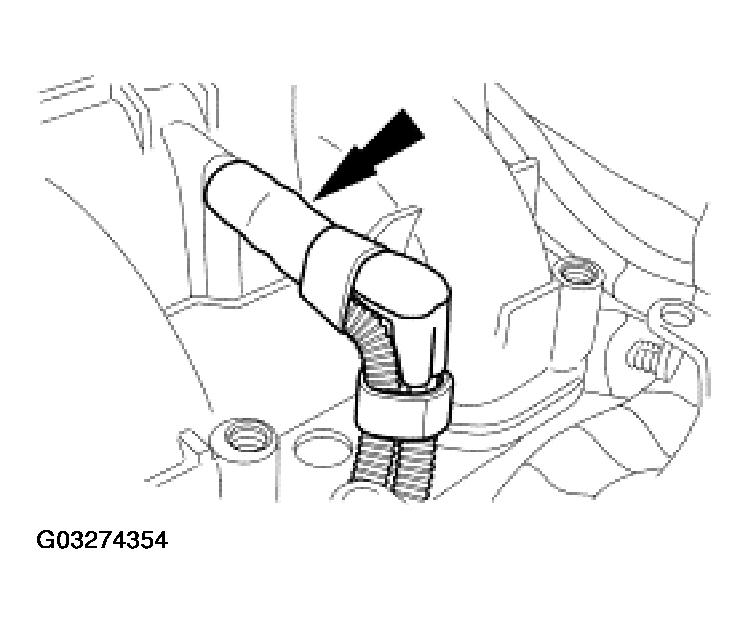

  17. Disconnect the vacuum hoses.
    Fig 15: Disconnecting Vacuum Hoses
    G03274354Courtesy of FORD MOTOR CO.
  18. Remove the nut.

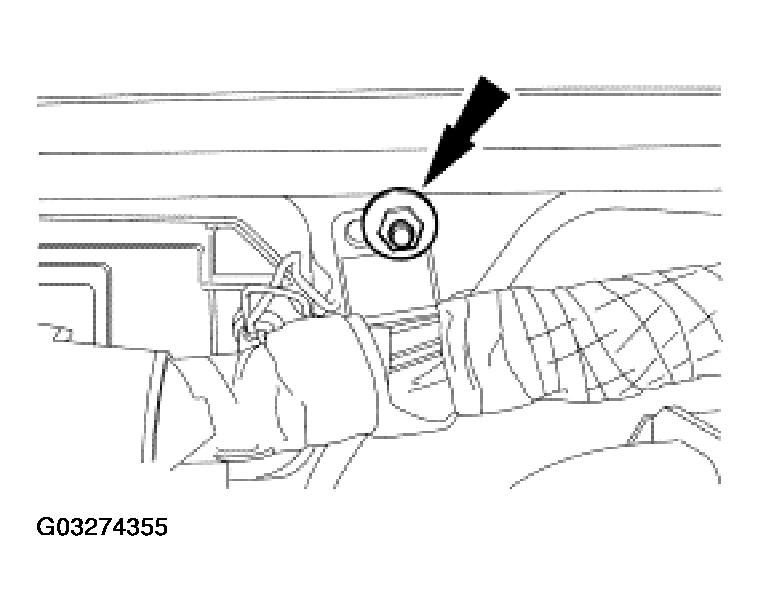

    Fig 16: Removing Nut
    G03274355Courtesy of FORD MOTOR CO.
  19. Disconnect the powertrain control module (PCM) electrical connector.

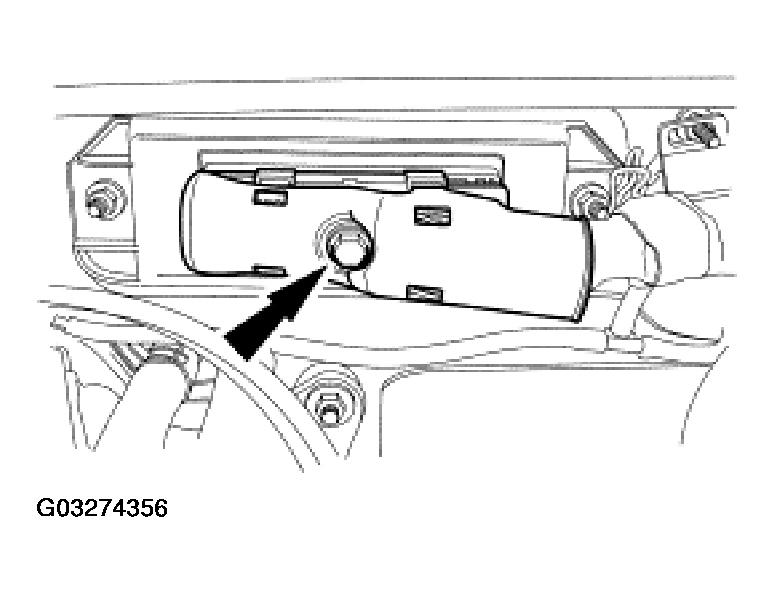

    Fig 17: Disconnecting PCM Electrical Connector
    G03274356Courtesy of FORD MOTOR CO.

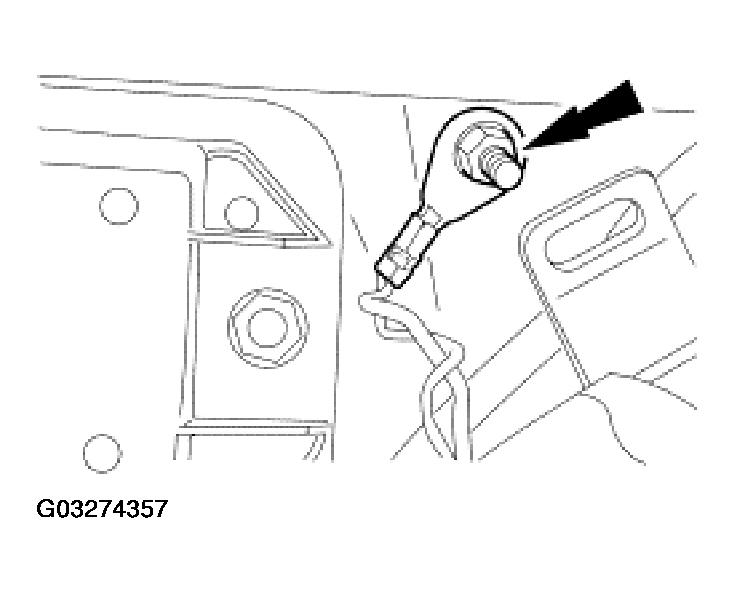

  20. Remove the retainer and position the ground wires aside.
    Fig 18: Removing Retainer And Position Ground Wires Aside
    G03274357Courtesy of FORD MOTOR CO.

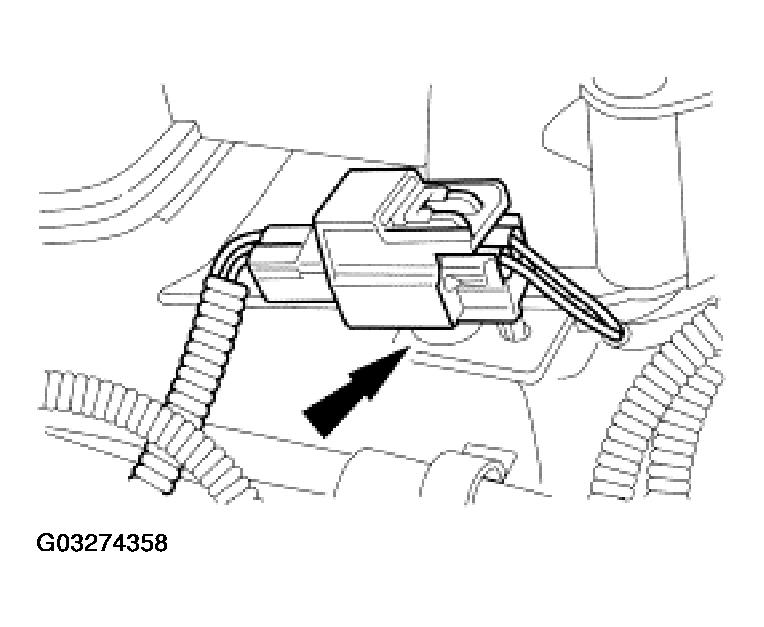

  21. Detach the electrical connector retainer.
    Fig 19: Detaching Electrical Connector Retainer
    G03274358Courtesy of FORD MOTOR CO.
  22. Remove the intake manifold bolts and lift up the intake manifold.

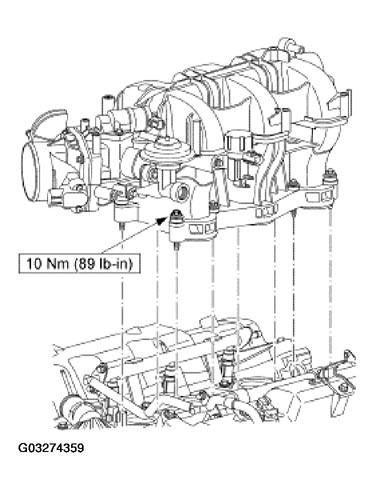

    Fig 20: Removing Intake Manifold
    G03274359Courtesy of FORD MOTOR CO.

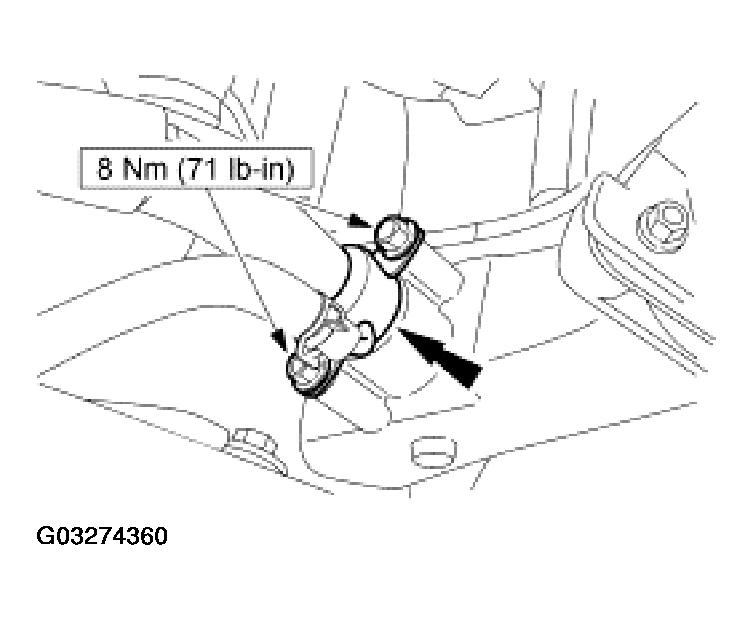

  23. Remove the heated positive crankcase ventilation (PCV) hose retainers and remove the heated PCV fitting.
    Fig 21: Removing Heated PCV Hose Retainers
    G03274360Courtesy of FORD MOTOR CO.
  24. Remove the intake manifold.
  25. To install, reverse the removal procedure.
