Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft roller followers. For additional information, refer to ROLLER FOLLOWERS .
  2. Remove the hydraulic lash adjusters.

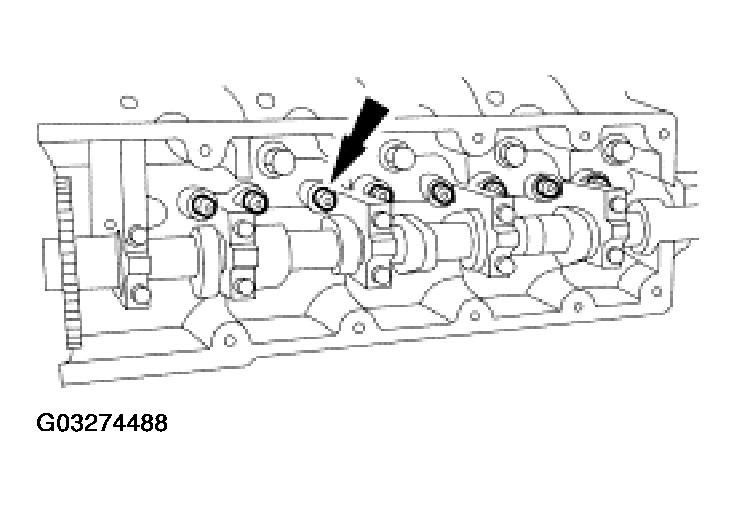

    Fig 1: Removing Hydraulic Lash Adjusters
    G03274488Courtesy of FORD MOTOR CO.
    3. NOTE: Lubricate the parts with clean engine oil prior to installing.
  3. To install, reverse the removal procedure.
