In-Vehicle Repair: Flywheel: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Special bolts are used for flywheel installation; do not use standard bolts.

Position the flywheel and install the bolts. Tighten the bolts in the sequence shown in two stages.
- Stage 1: Tighten the bolts to 13 N.m (10 lb-ft).
- Stage 2: Tighten the bolts to 71 N.m (52 lb-ft).

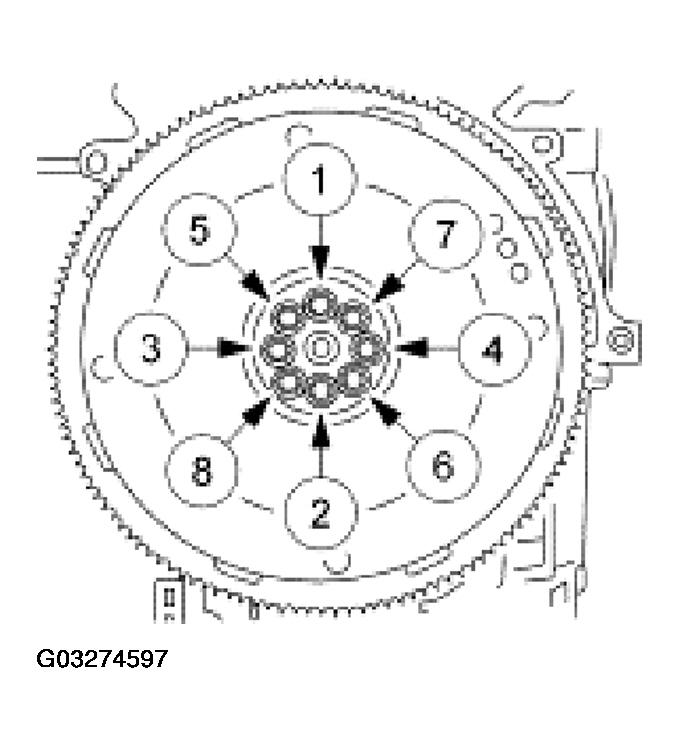

  Fig 1: Flywheel Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the clutch. For additional information, refer to CLUTCH .
