In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Special bolts are used for flexplate installation; do not use standard bolts.
  1. Position the flexplate and install the bolts. Tighten the bolts in the sequence shown in two stages.
    • Stage 1: Tighten the bolts to 13 N.m (10 lb-ft).
    • Stage 2: Tighten the bolts to 71 N.m (52 lb-ft).

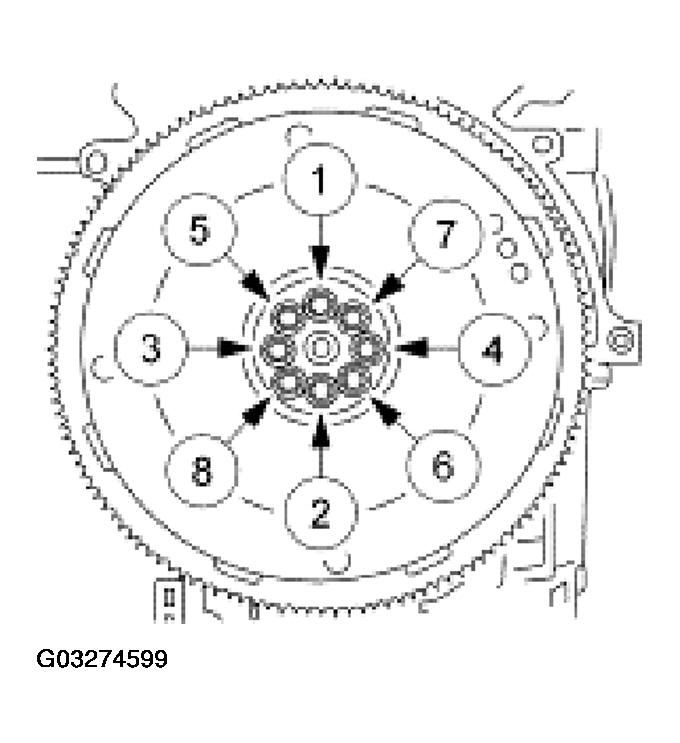

      Fig 1: Flexplate Bolts Tightening Sequence
      G03274599Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 5R44E & 5R55E .
